Diagnostic Procedure

1. Turn ignition switch ON.
2. Connect CONSULT-II and select "DATA MONITOR" mode.
3. Select "LOAD SIGNAL" and check indication under the following conditions.
   REAR WINDOW DEFOGGER SWITCH CONDITION AND INDICATION



   Condition	Indication
   Rear window defogger switch ON	ON
   Rear window defogger switch OFF	OFF

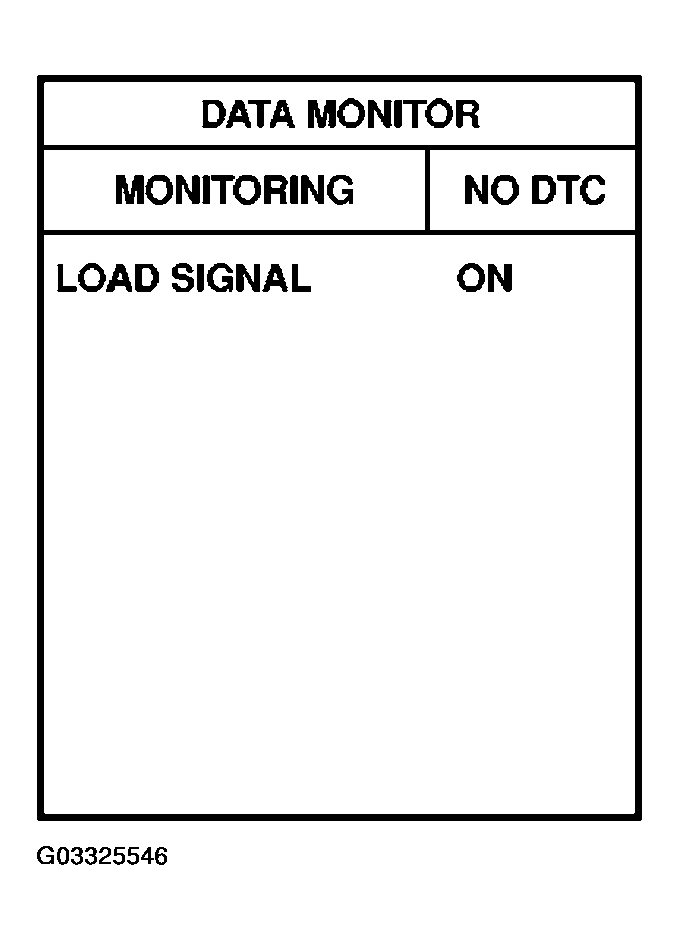

   Fig 1: Consult II Display

   Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

1. OK: GO TO 2.
2. NG: GO TO  3.

Check "LOAD SIGNAL" indication under the following conditions.

Fig 2: Consult II Display

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

1. OK: INSPECTION END
2. NG: GO TO  4.

Refer to 2004 REAR WINDOW DEFOGGER - G35 SEDAN .

1. : INSPECTION END

Refer to HEADLAMP (FOR USA) or LT-38, 2004 HEADLAMP (FOR CANADA) - DAYTIME RUNNING .

1. : INSPECTION END
