Mil And Data Link Connector: Wiring Diagram

NOTE: For references to PG-POWER, see GROUND DISTRIBUTION & POWER DISTRIBUTION .

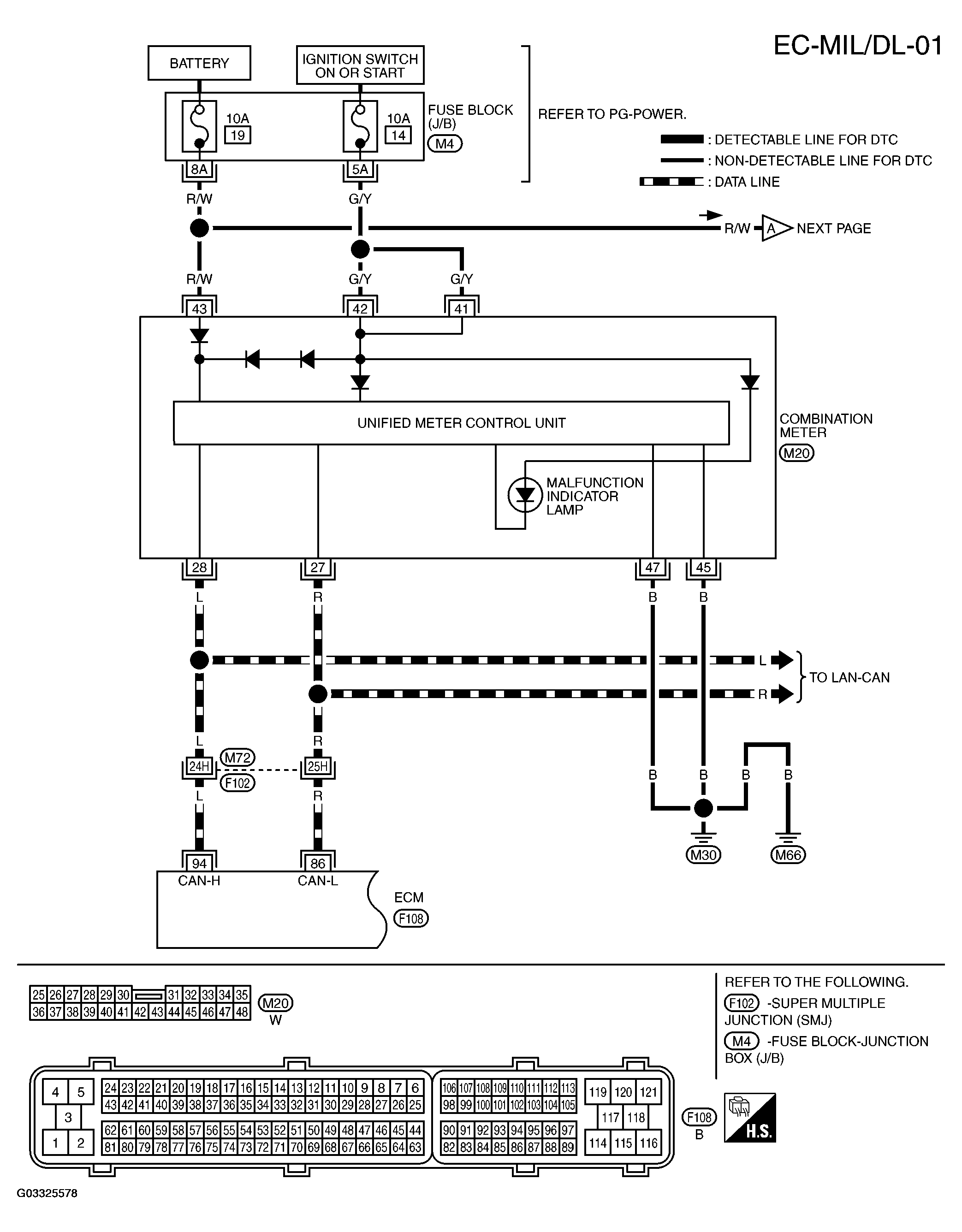

Fig 1: Wiring Diagram - EC-MIL/DL-01
G03325578Courtesy of NISSAN MOTOR CO., U.S.A.

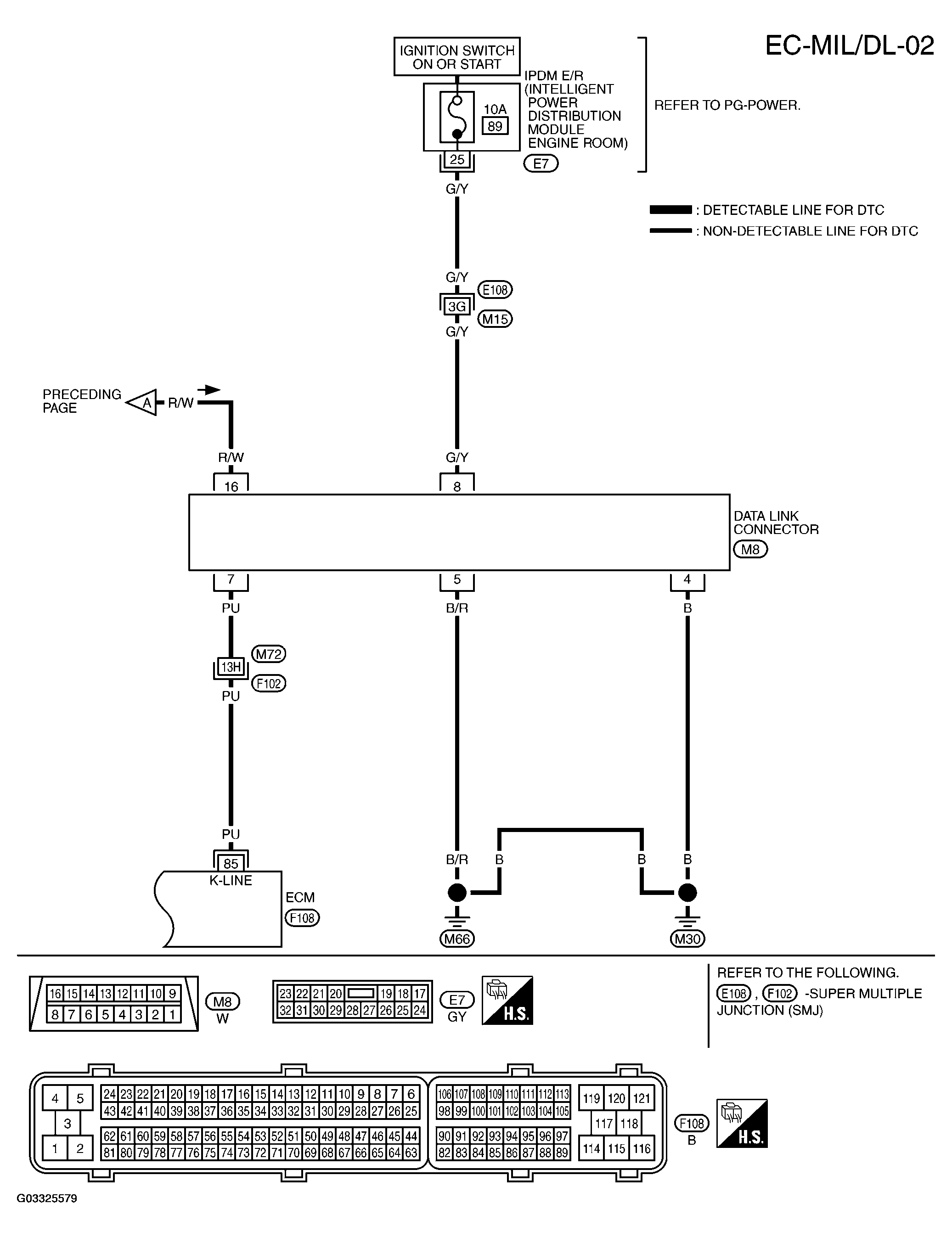

Fig 2: Wiring Diagram - EC-MIL/DL-02
G03325579Courtesy of NISSAN MOTOR CO., U.S.A.
