ECM Inspection Table

Specification data are reference values and are measured between each terminal and ground.

Pulse signal is measured by CONSULT-II.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECMs transistor. Use a ground other than ECM terminals, such as the ground.

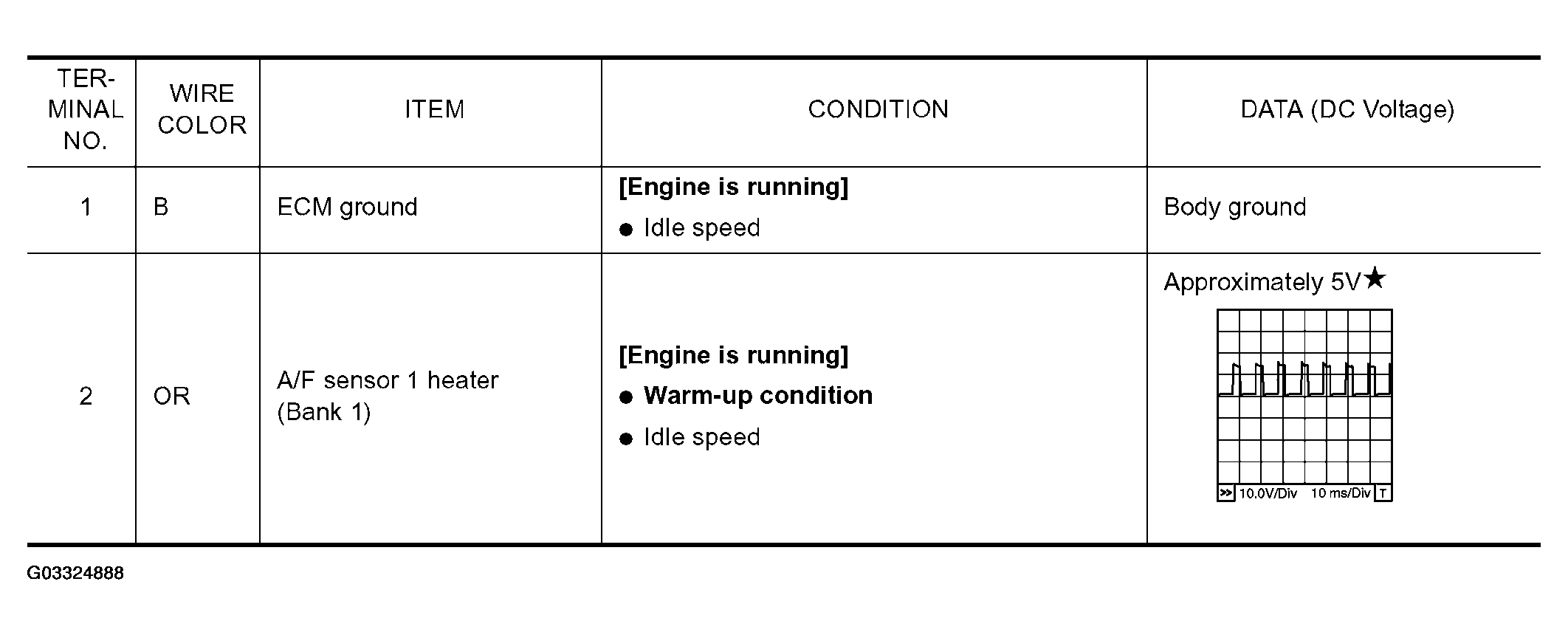

Fig 1: ECM Inspection Chart (1 Of 9)

G03324888

Courtesy of NISSAN MOTOR CO., U.S.A.

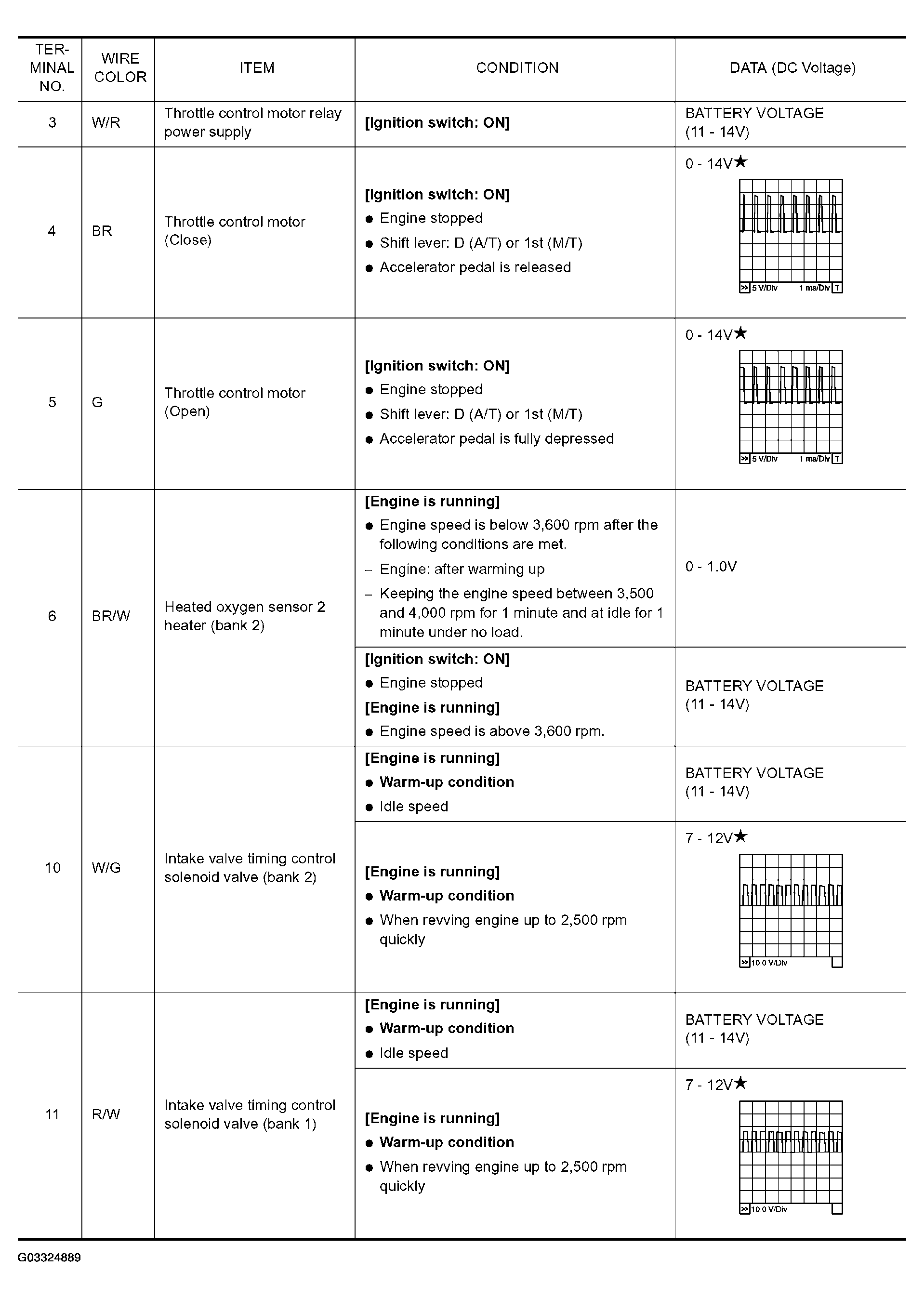

Fig 2: ECM Inspection Chart (2 Of 9)

G03324889

Courtesy of NISSAN MOTOR CO., U.S.A.

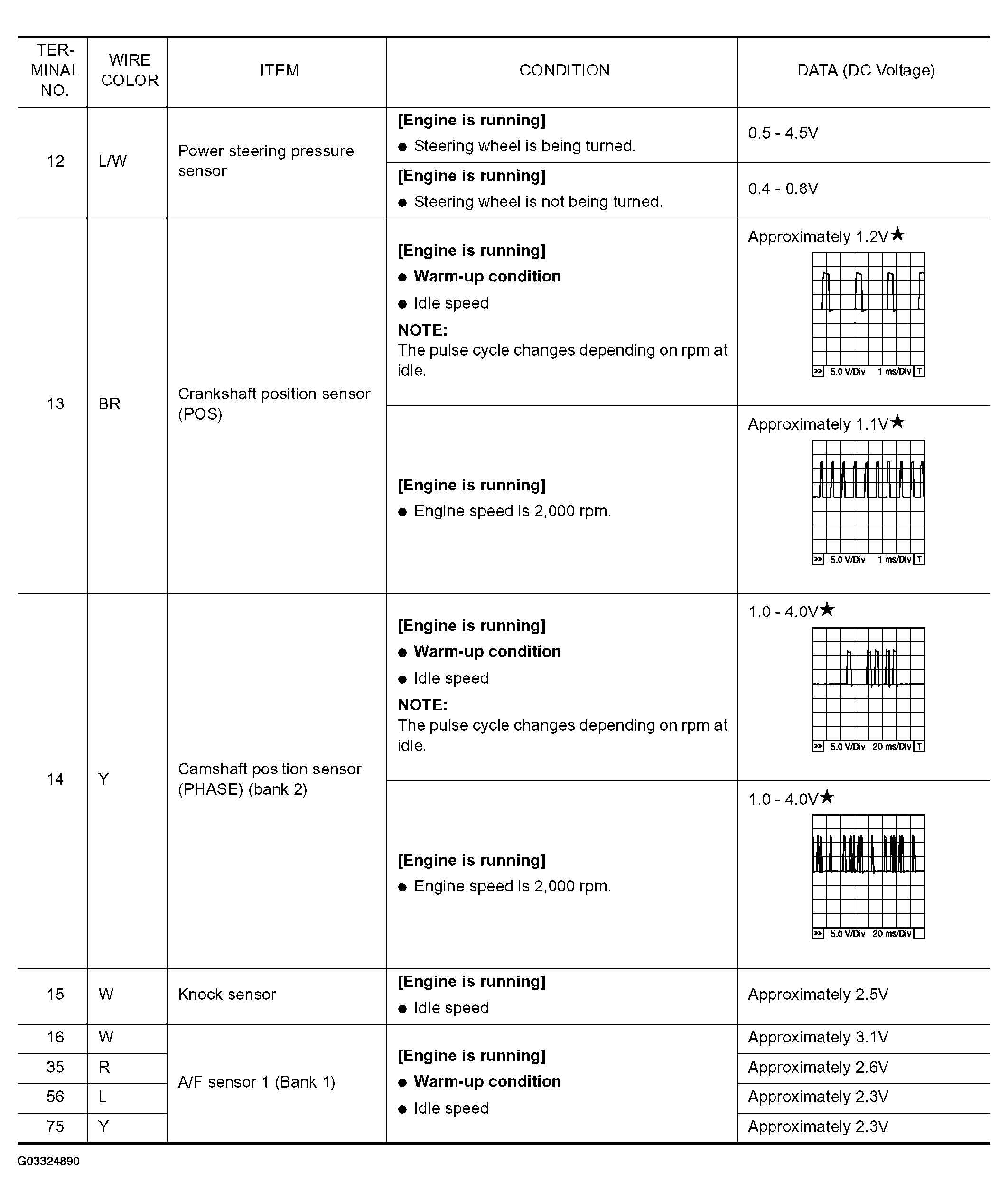

Fig 3: ECM Inspection Chart (3 Of 9)

G03324890

Courtesy of NISSAN MOTOR CO., U.S.A.

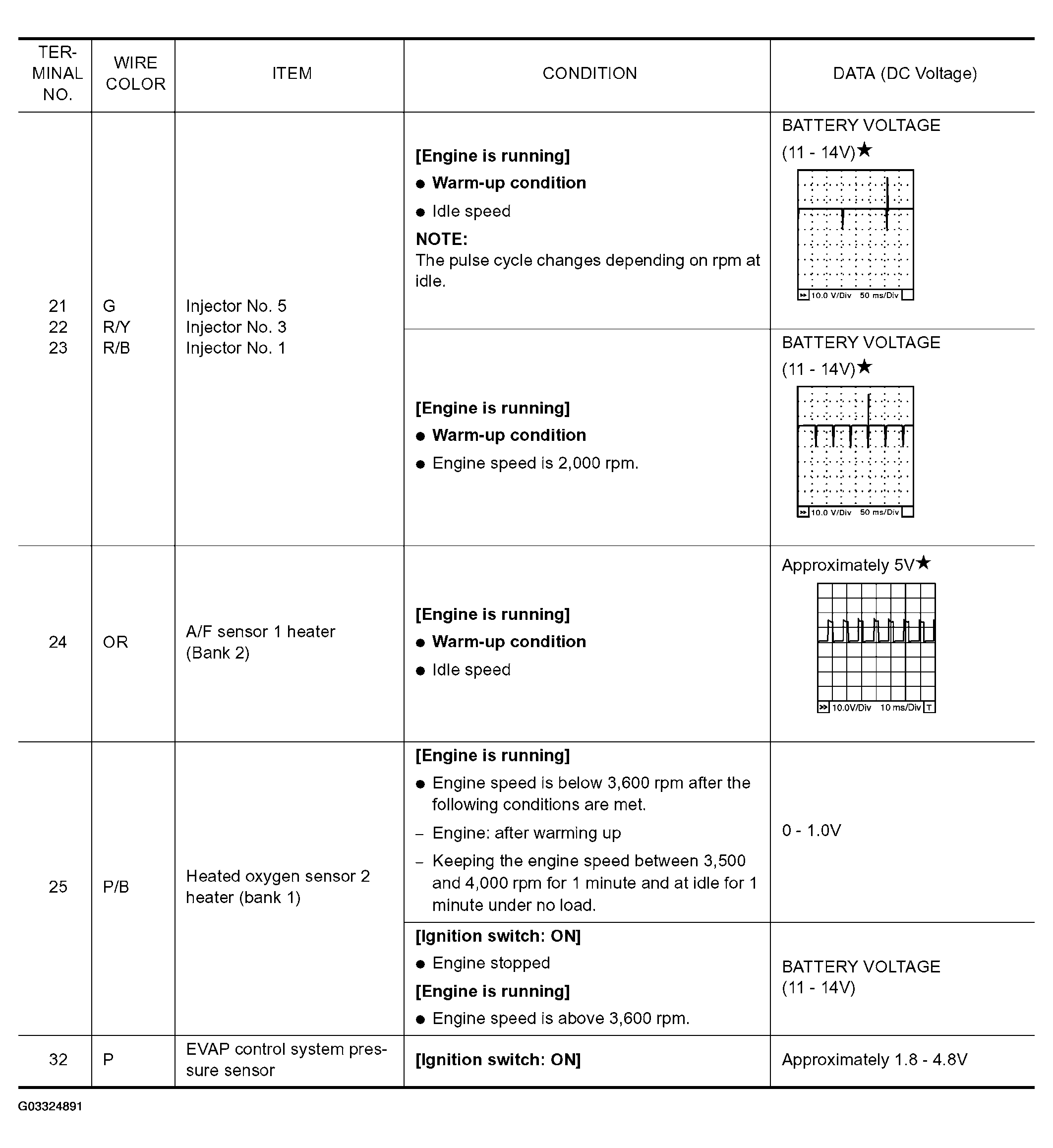

Fig 4: ECM Inspection Chart (4 Of 9)

G03324891

Courtesy of NISSAN MOTOR CO., U.S.A.

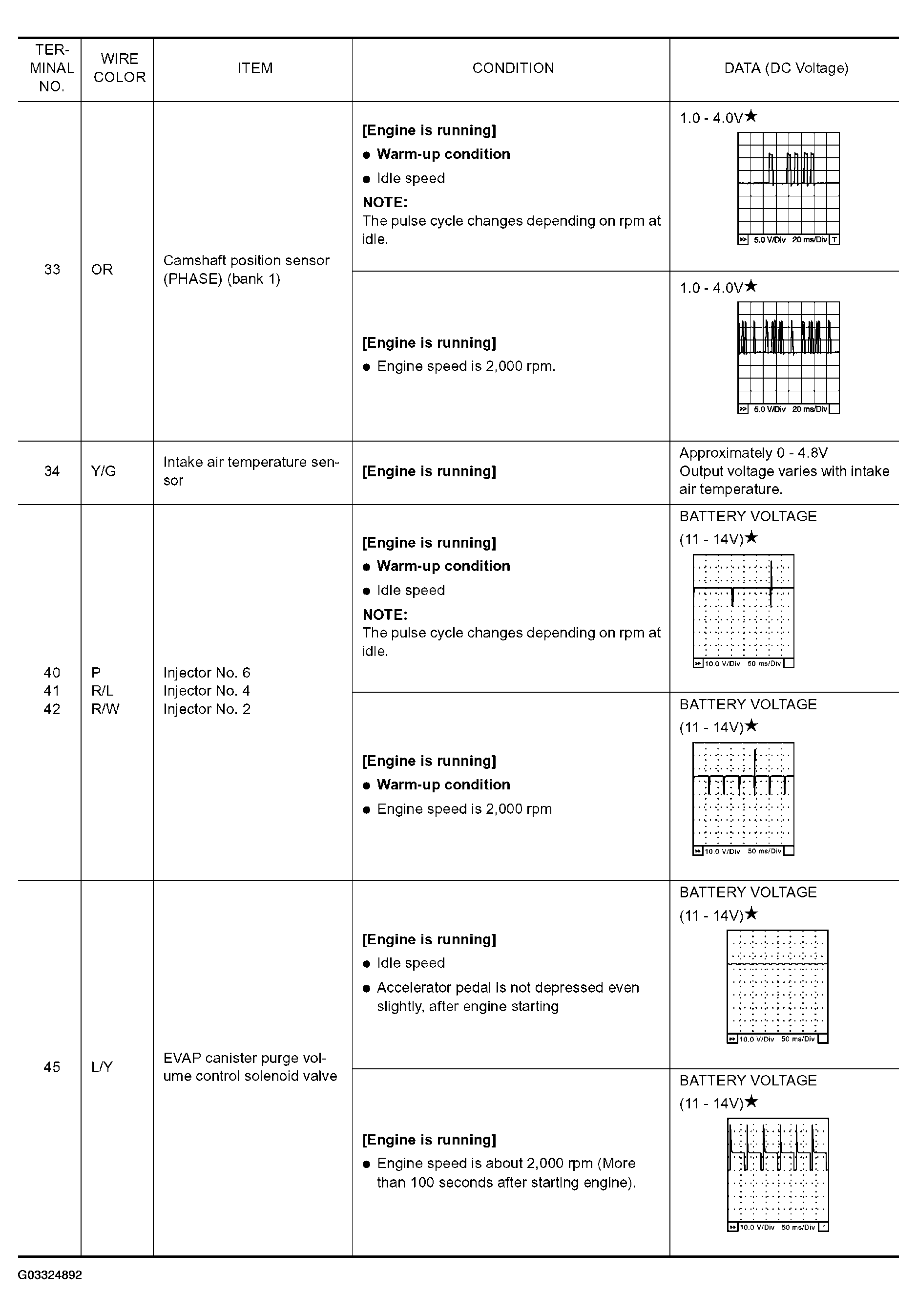

Fig 5: ECM Inspection Chart (5 Of 9)

G03324892

Courtesy of NISSAN MOTOR CO., U.S.A.

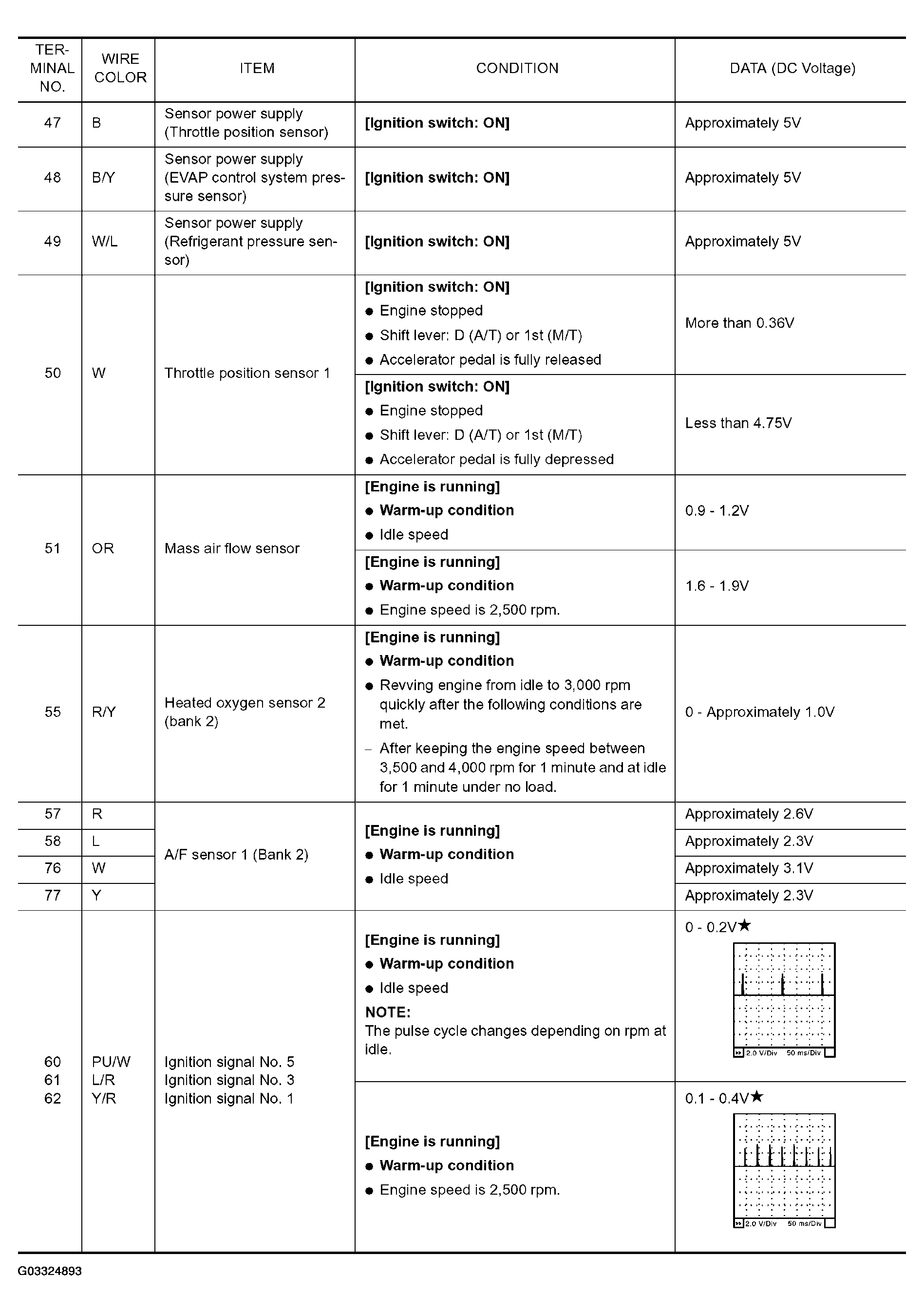

Fig 6: ECM Inspection Chart (6 Of 9)

G03324893

Courtesy of NISSAN MOTOR CO., U.S.A.

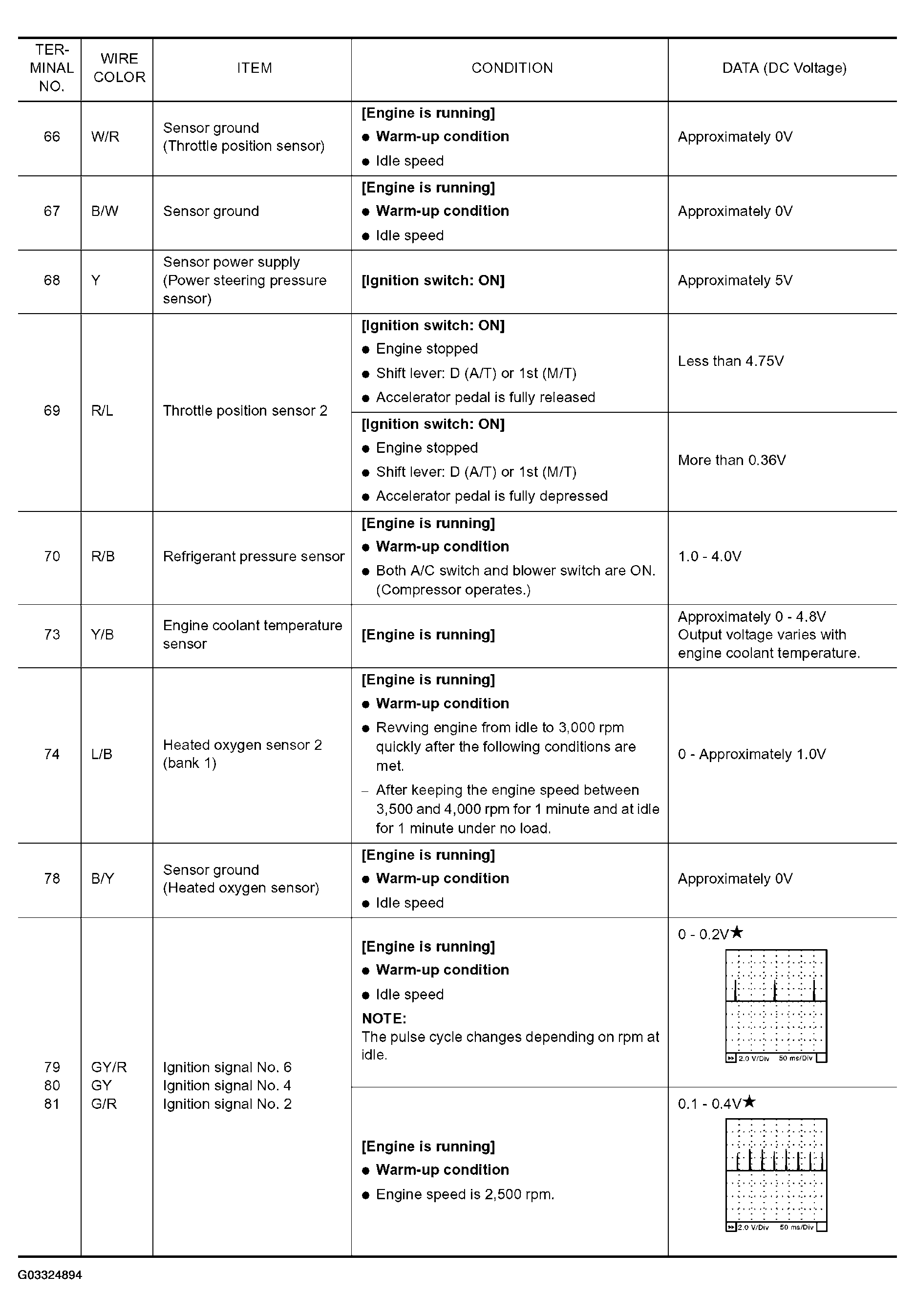

Fig 7: ECM Inspection Chart (7 Of 9)

G03324894

Courtesy of NISSAN MOTOR CO., U.S.A.

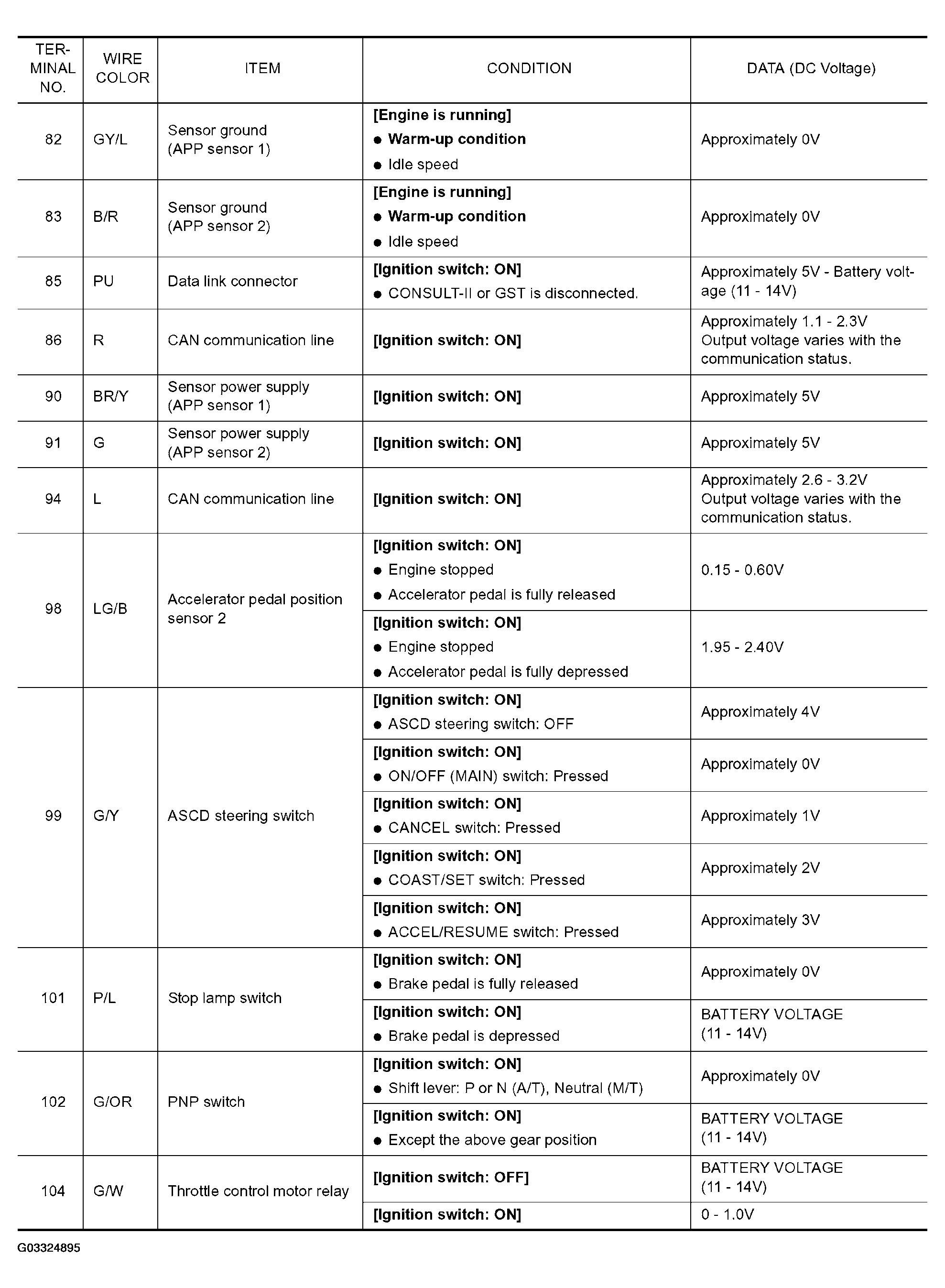

Fig 8: ECM Inspection Chart (8 Of 9)

G03324895

Courtesy of NISSAN MOTOR CO., U.S.A.

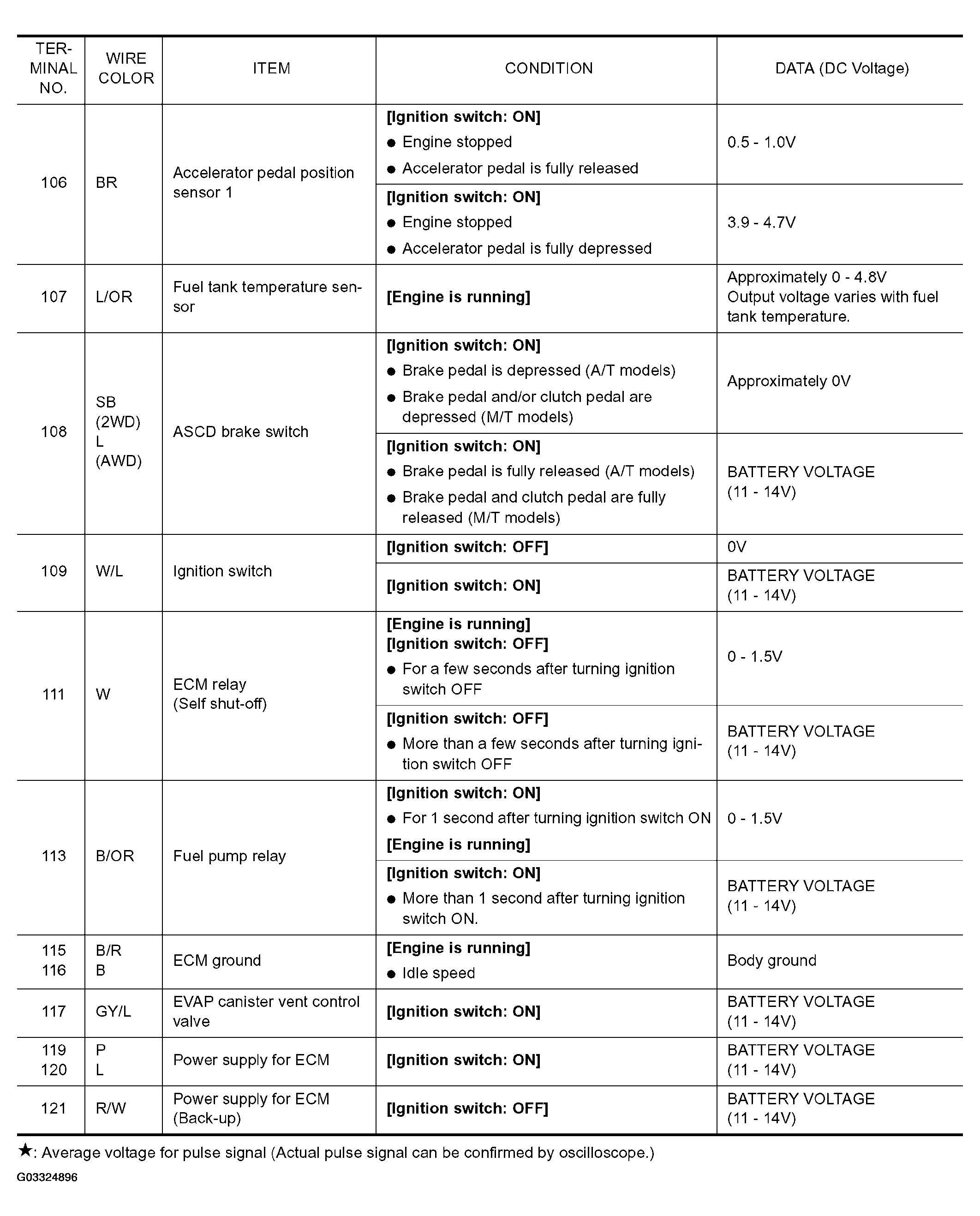

Fig 9: ECM Inspection Chart (9 Of 9)

G03324896

Courtesy of NISSAN MOTOR CO., U.S.A.
