2004.5 - Engine Control System - Introduction - Sedan
>>
Trouble Diagnosis
>>
Trouble Diagnosis Introduction
>>
Work Flow
>>
Flow Chart
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Flow Chart

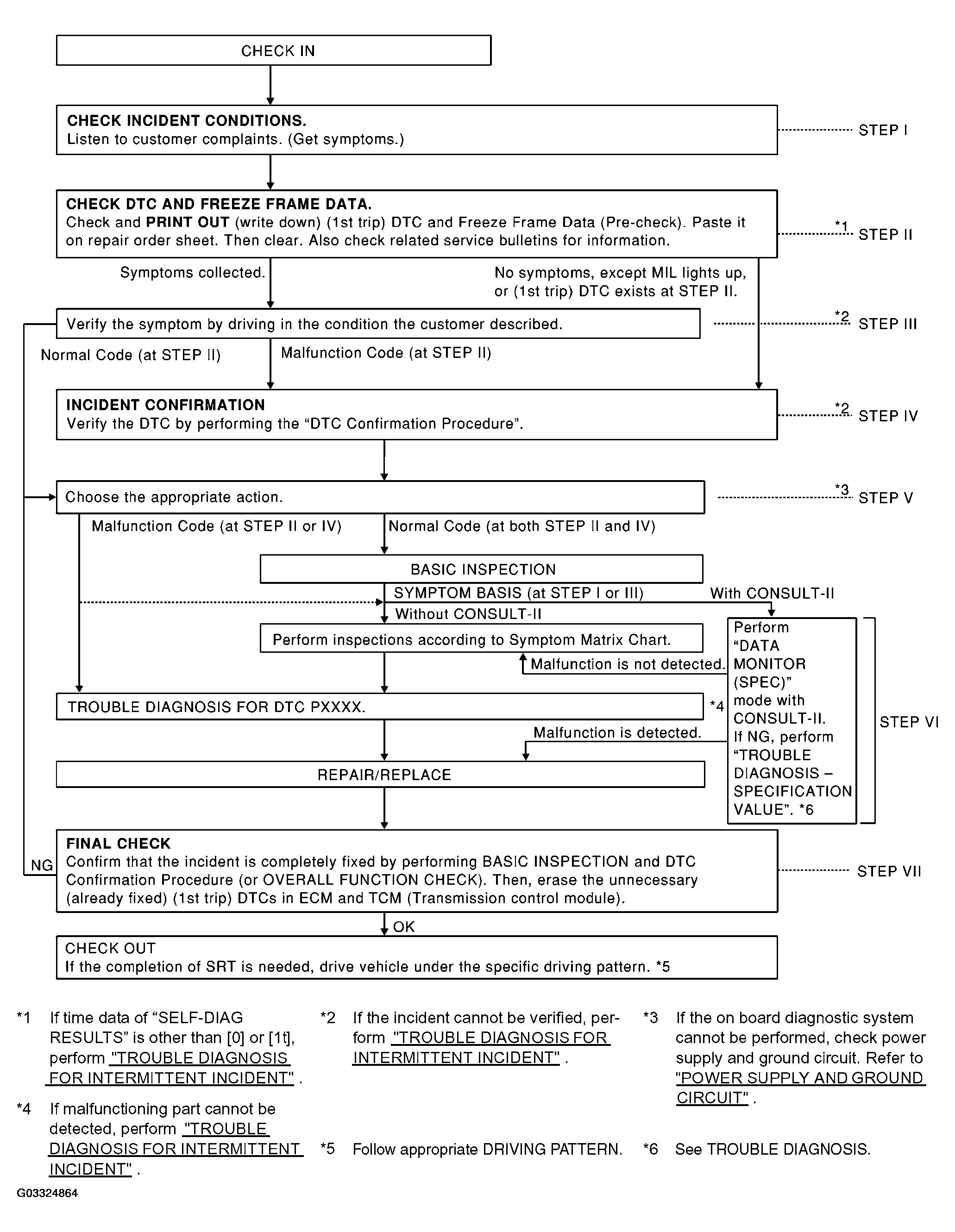

Fig 1: Work Flow Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
