Operation Procedure

  1. Perform CONSULT-II SETTING PROCEDURE. Refer to CONSULT-II SETTING PROCEDURE .
  2. Start engine and drive at 30 km/h (19 MPH) or more for approx. 1 minute.
  3. Stop vehicle. With engine at idle, touch "SELF-DIAG RESULTS". Display shows malfunction experienced since the last erasing operation.
    NOTE:
    • The details for "TIME" are as follow:
    • "0": Error currently detected with AWD control unit.
    • Except for "0": Error detected in the past and memorized with AWD control unit.

      Detects frequency of driving after DTC occurs (frequency of turning ignition switch "ON/OFF").

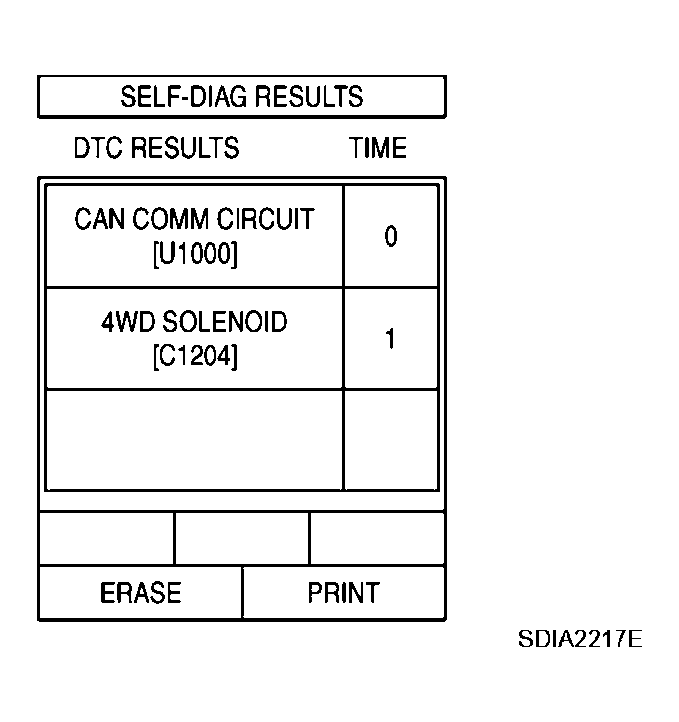

    Fig 1: CONSULT-II Display - SELF-DIAG RESULTS
    G04214348Courtesy of NISSAN MOTOR CO., U.S.A.
