Smart Entrance Control Unit Inspection Table: Notes

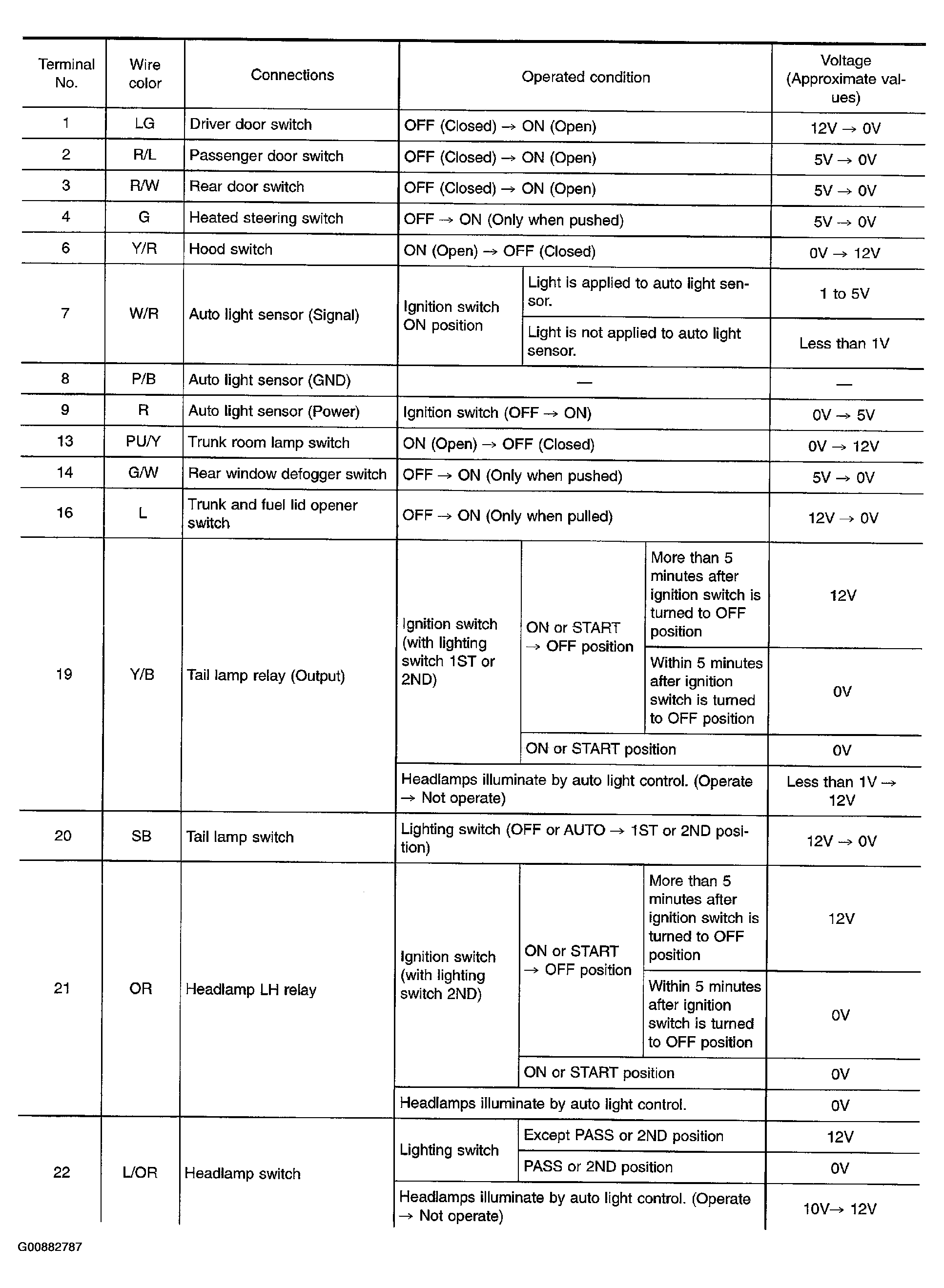

Fig 1: Identifying Smart Entrance Control Unit Terminal Reference Values (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

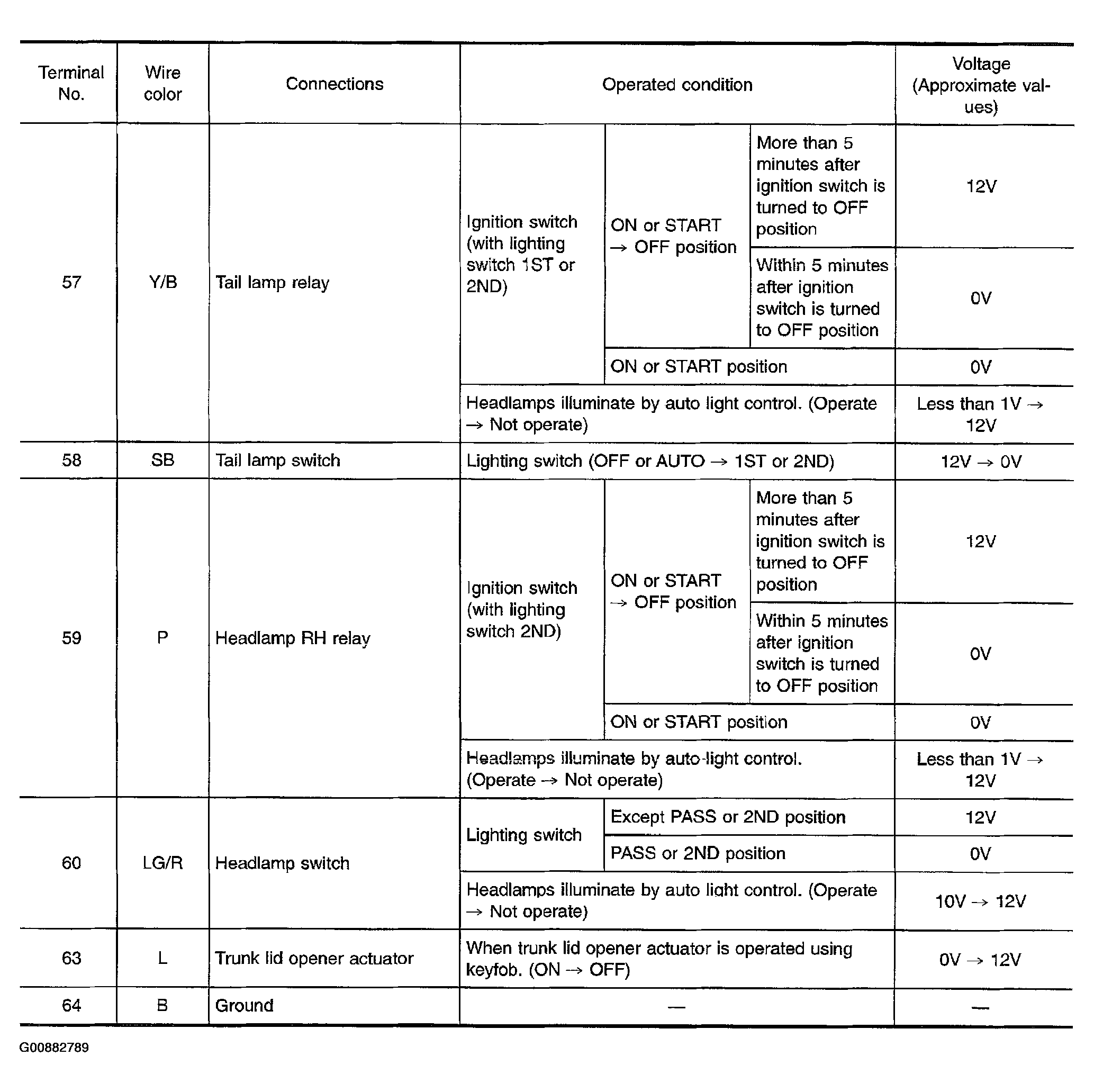

Fig 2: Identifying Smart Entrance Control Unit Terminal Reference Values (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

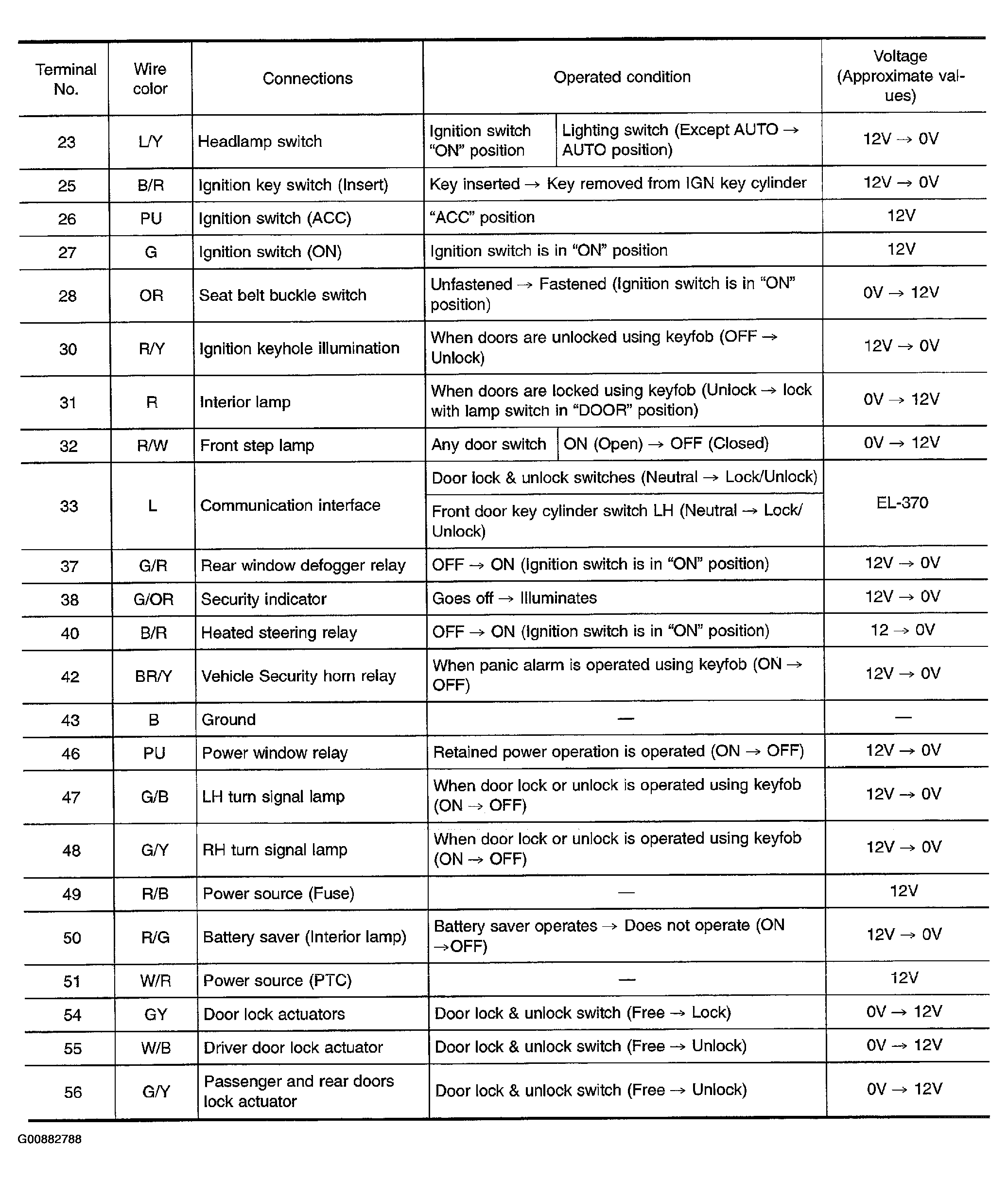

Fig 3: Identifying Smart Entrance Control Unit Terminal Reference Values (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.
