Data Monitor (SPEC) Mode

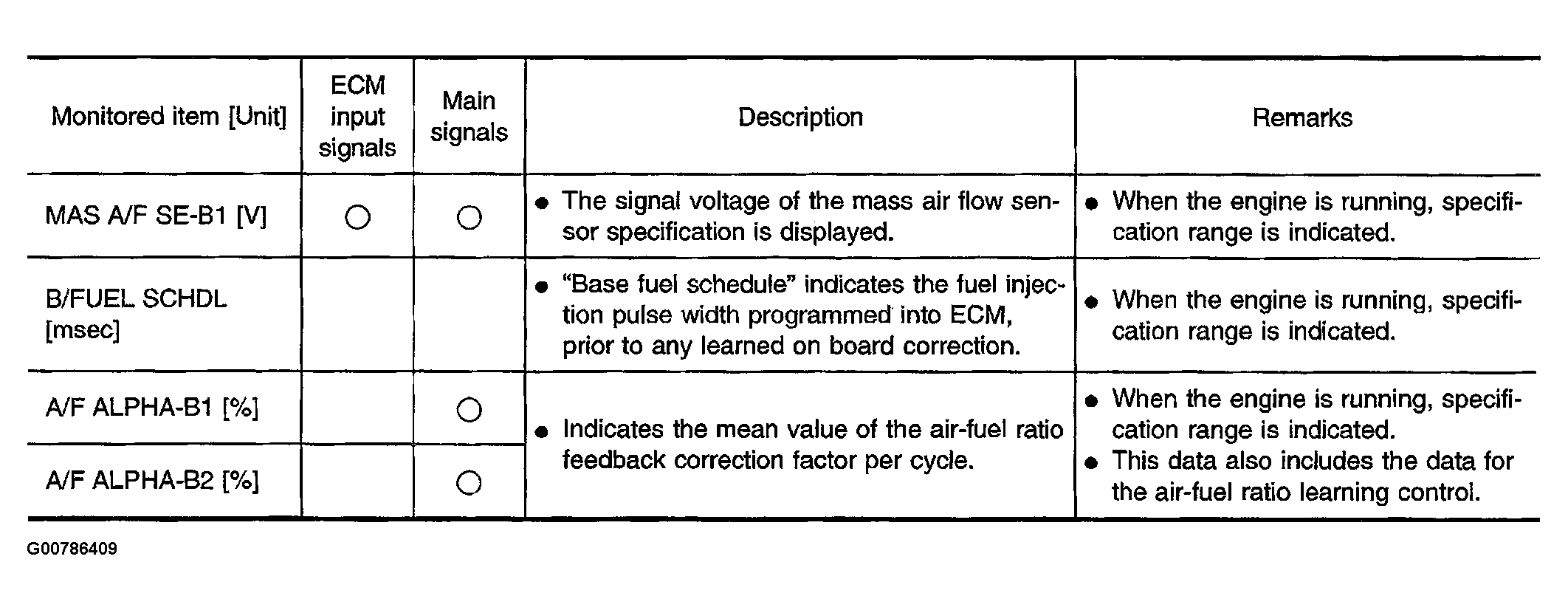

Fig 1: DATA MONITOR (SPEC) MODE Chart
G00786409Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE: Any monitored item that does not match the vehicle being diagnosed is deleted from the display automatically.
