KEYFOB Id Set Up With Consult-II

NOTE: If a keyfob is lost, the ID code of the lost keyfob must be erased to prevent unauthorized use. When the ID code of a lost keyfob is not known, all keyfob ID codes should be erased. After all ID codes are erased, the ID codes of all remaining and/or new keyfob must be re-registered.

Turn ignition switch OFF.
Connect CONSULT-II and CONSULT-II CONVERTER to the data link connector.

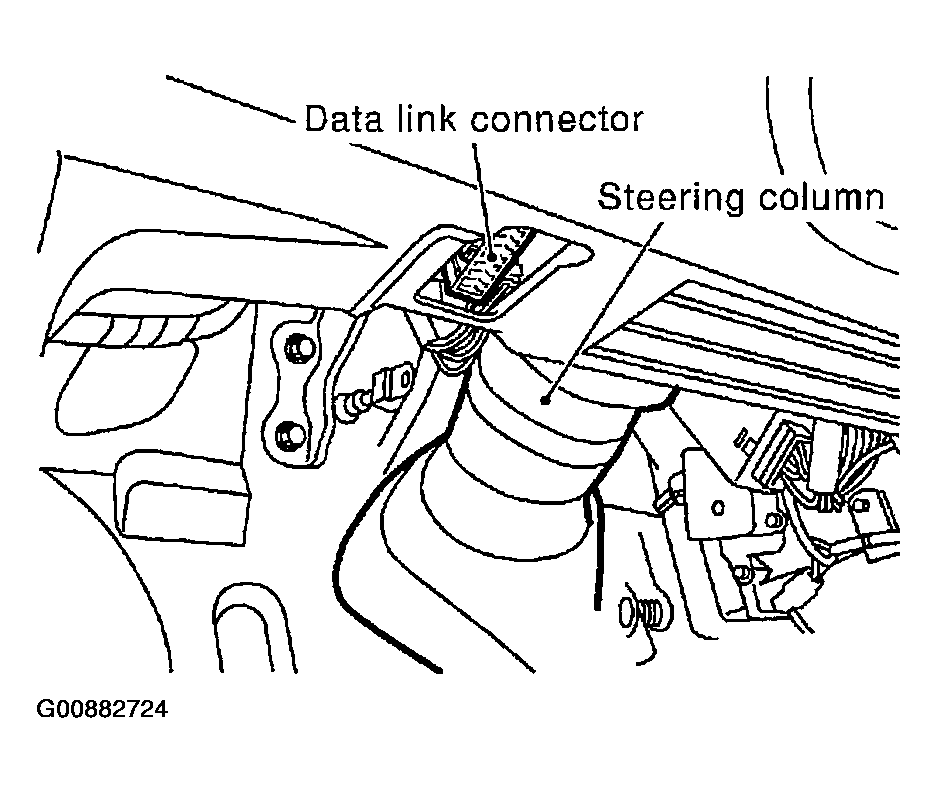

Fig 1: Locating Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Turn ignition switch ON.
Touch START (NISSAN BASED VHCL).

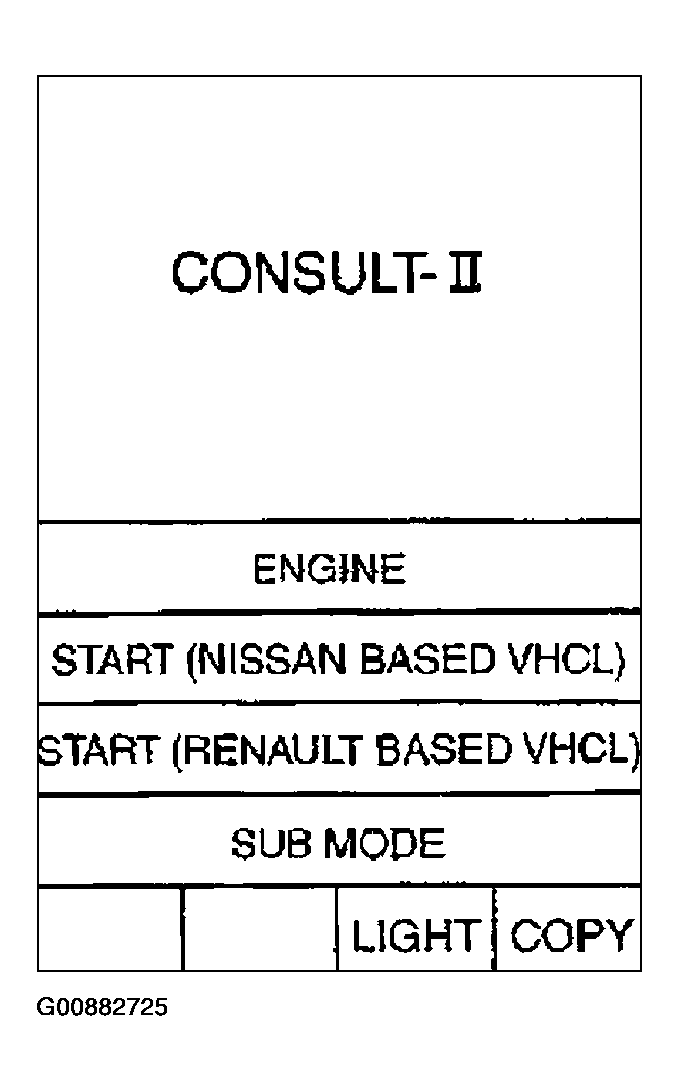

Fig 2: Identifying START (NISSAN BASED VHCL) Selection
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch SMART ENTRANCE.
If SMART ENTRANCE is not indicated, go to CONSULT II START PROCEDURE .

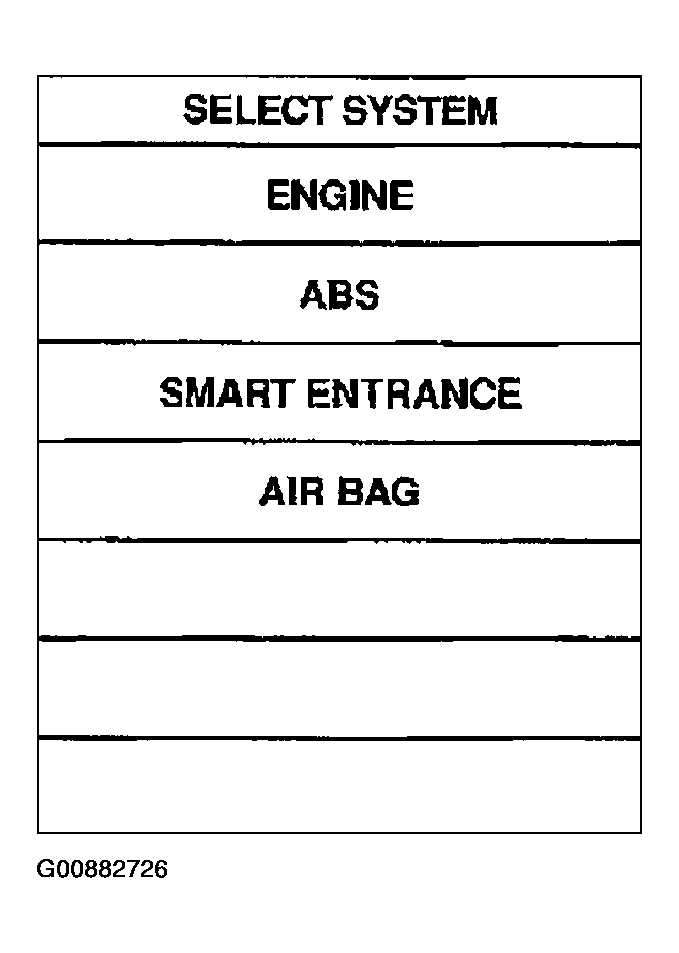

Fig 3: Identifying SMART ENTRANCE Selection
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch MULTI REMOTE ENT.

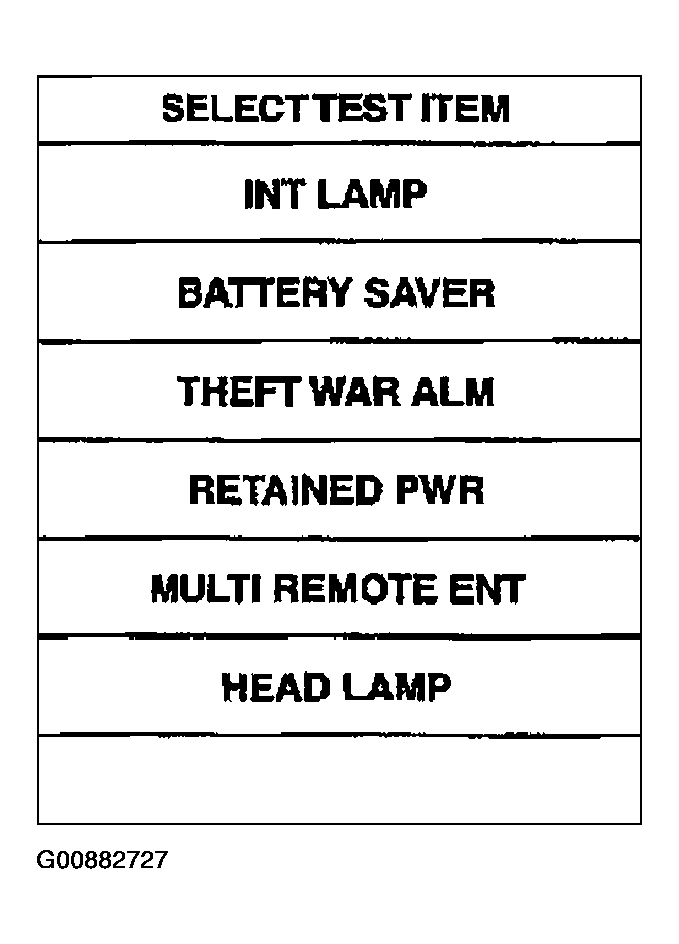

Fig 4: Identifying MULTI REMOTE ENT Selection
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch WORK SUPPORT.

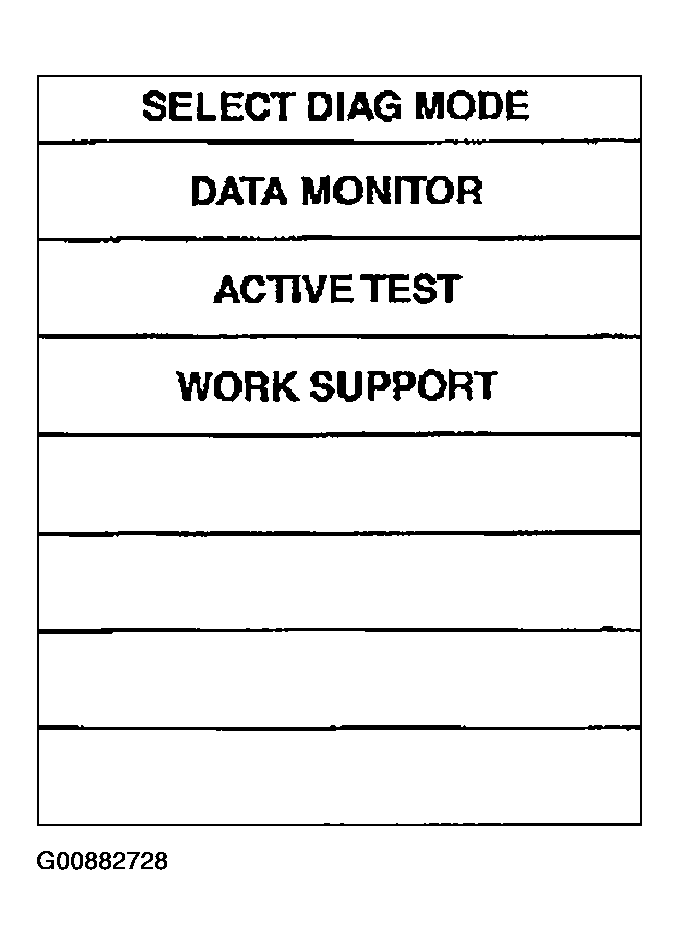

Fig 5: Identifying WORK SUPPORT Selection
Courtesy of NISSAN MOTOR CO., U.S.A.
The items shown in 7 can be set up.

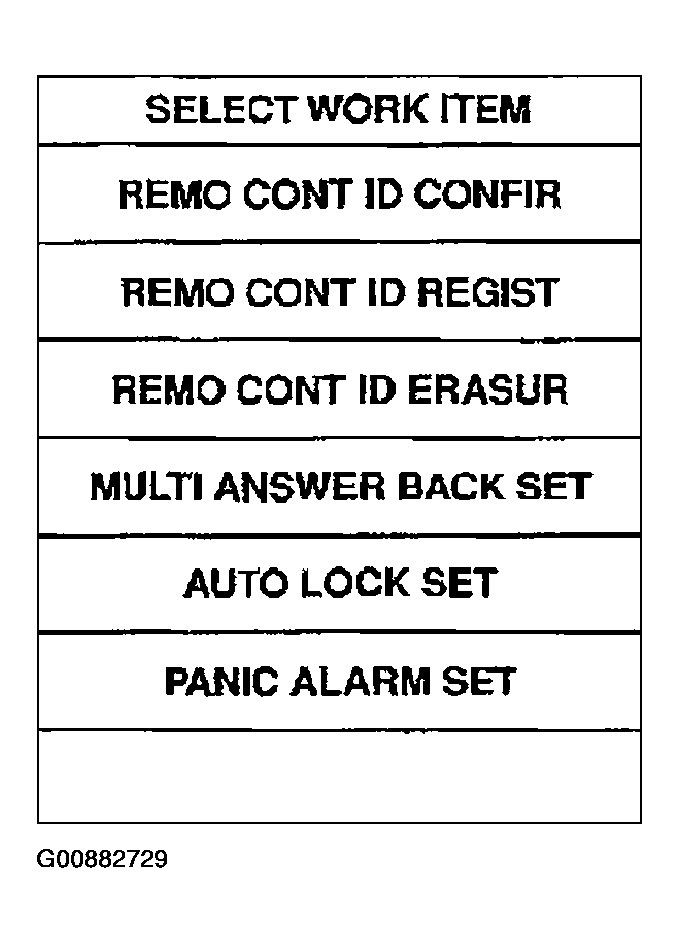

Fig 6: Locating SELECT WORK ITEM Screen)

Courtesy of NISSAN MOTOR CO., U.S.A.

REMO CONT ID CONFIR
Use this mode to confirm if a keyfob ID code is registered or not.
REMO CONT ID REGIST
Use this mode to register a keyfob ID code.

NOTE: Register the ID code when keyfob or smart entrance control unit is replaced, or when additional keyfob is required.

REMO CONT ID ERASUR
Use this mode to erase a keyfob ID code.

Refer to WORK SUPPORT CONSULT-II Application Items for the following items.

MULTI ANSWER BACK SET
AUTO LOCK SET
PANIC ALARM SET
TRUNK OPENER
PW DOWN SET
