Memory Automatic Set

Two drive positions can be retained in the memory. Press memory switch to set driver's seat to preset position.

PROCEDURE FOR STORING MEMORY

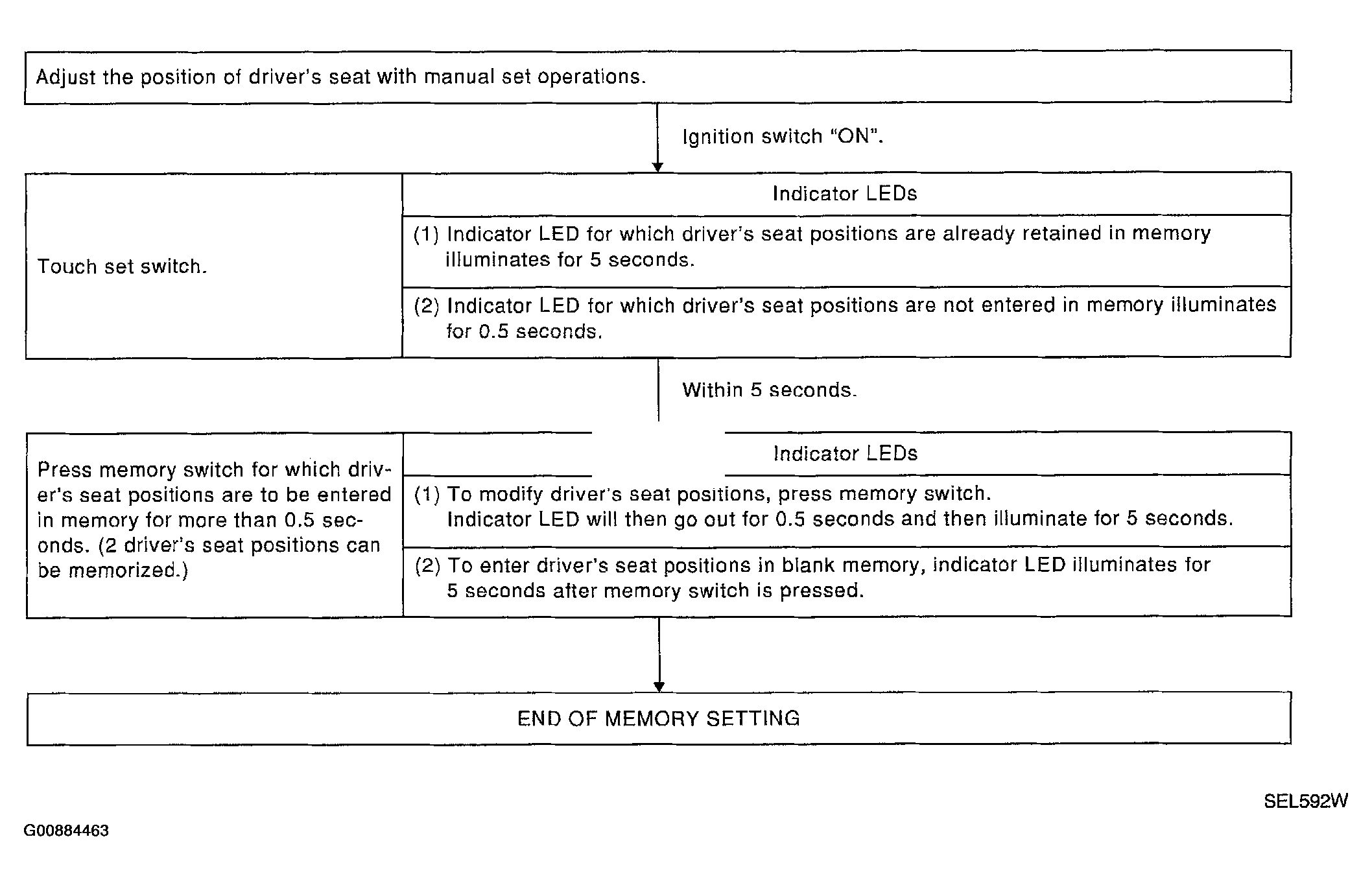

Fig 1: Automatic Drive Positioner Memory Storing Flow Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE:

When memory switch for which driver's seat positions are already retained in memory is pressed, new seat positions will be retained in memory in place of the previously set positions.
Drive position is erased from the memory when battery cable is disconnected more than 30 seconds. After connecting battery cable, perform initialization procedures.

SELECTING THE MEMORIZED POSITION

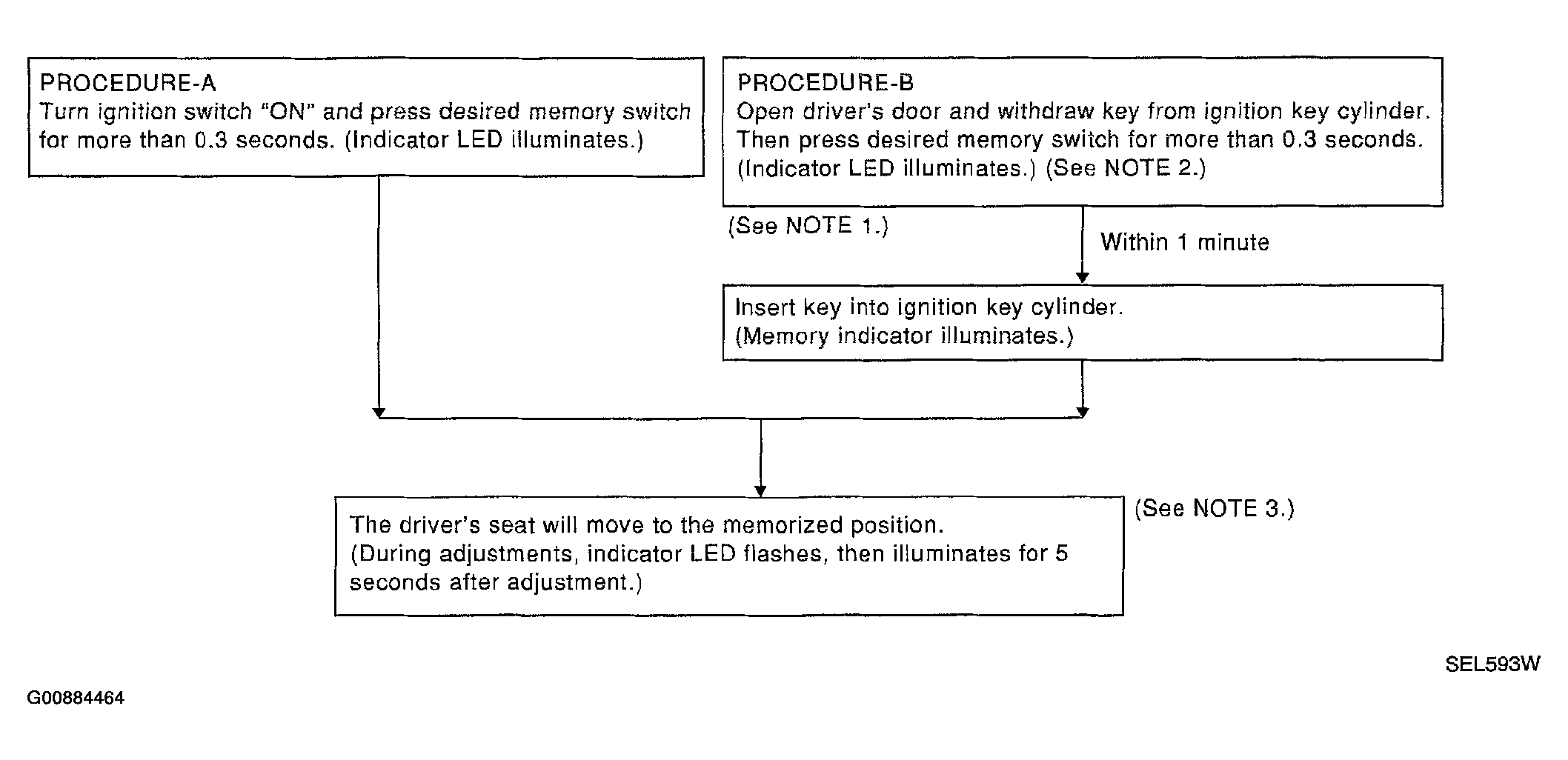

Fig 2: Memorized Position Selection Flow Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE:

Do not keep memory seat cancel switch pressed as it will not operate.
Automatic exiting setting will be performed.
The driver's seat position (see Fig 3 ) operates in the order of priority.

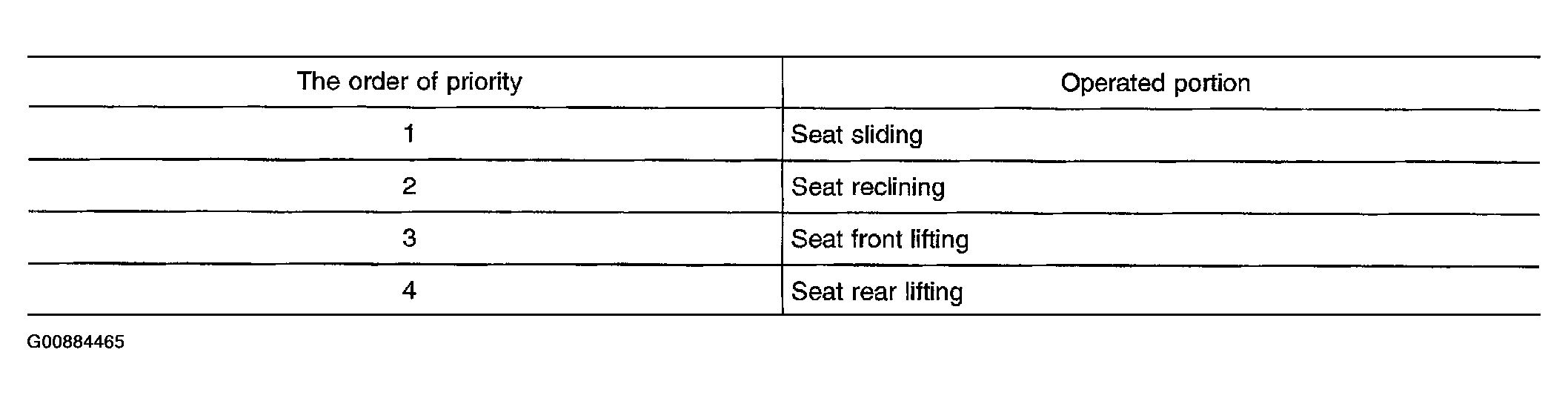

Fig 3: Driver's Seat Position Operation Table
Courtesy of NISSAN MOTOR CO., U.S.A.
