4 Check Sliding Encoder Short Circuit

Check harness continuity between seat control unit LH connector and ground.

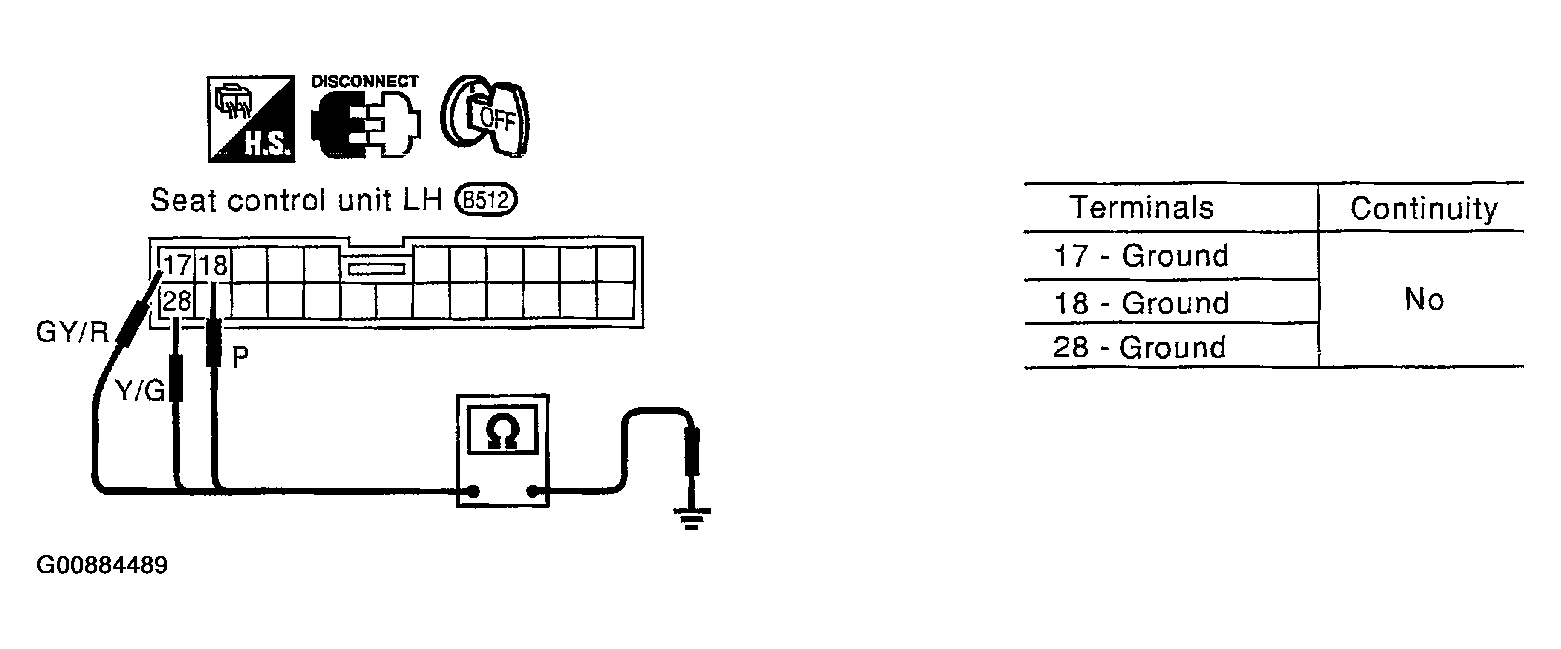

Fig 1: Checking Sliding Encoder For Short Circuit

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: Replace sliding encoder.

NG: Repair harness.
