2 Check Reclining Encoder Input Signal

Check voltage between seat control unit LH terminal 17 and ground.

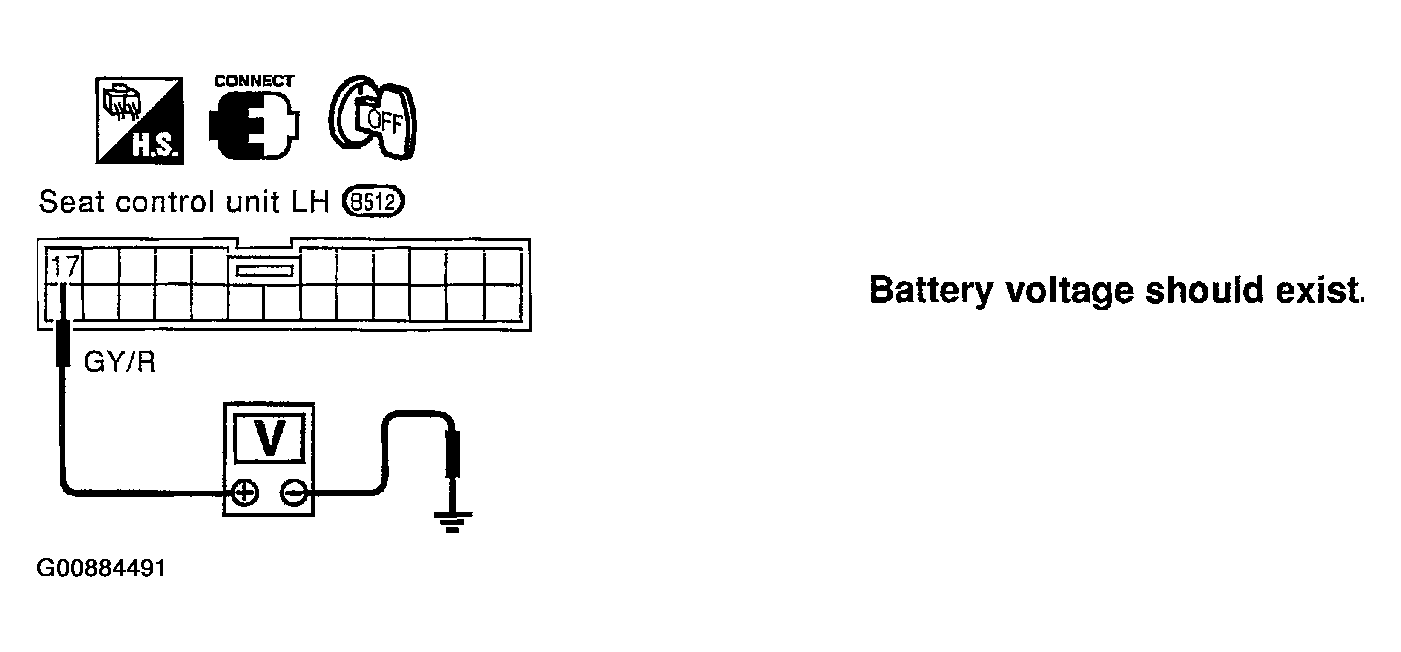

Fig 1: Checking Reclining Encoder For Input Signal

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: GO TO 3.

NG: Replace seat control unit LH.
