Service Data And Specifications (SDS)
>>
Abs Wheel Sensor
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Abs Wheel Sensor

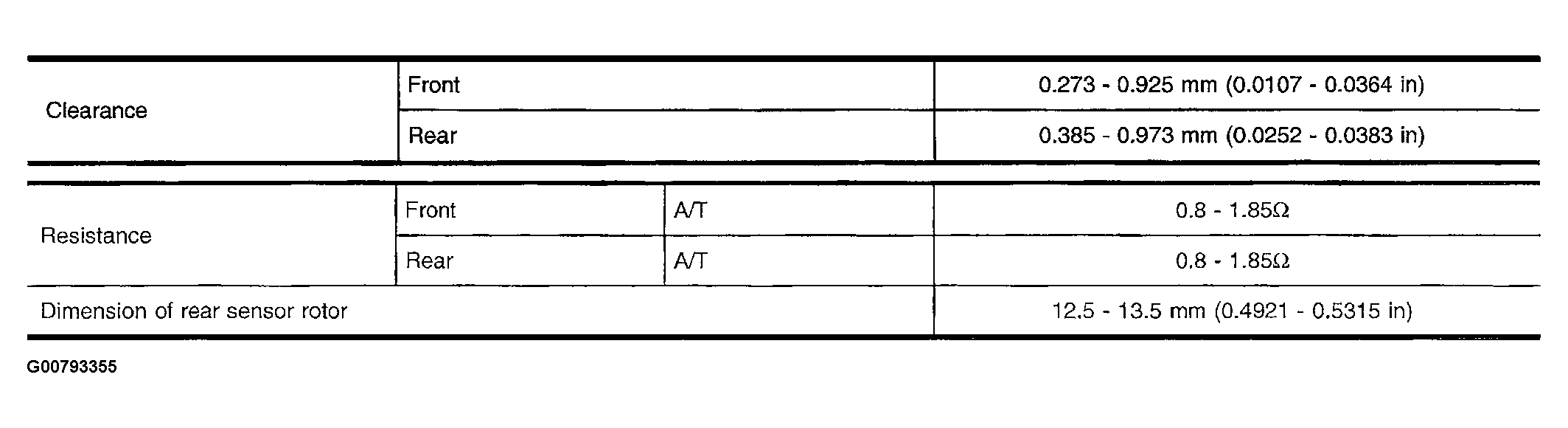

Fig 1: ABS Wheel Sensor Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
