Diagnostic Procedure

Self-Diagnosis Result Check
Check the self-diagnosis results.

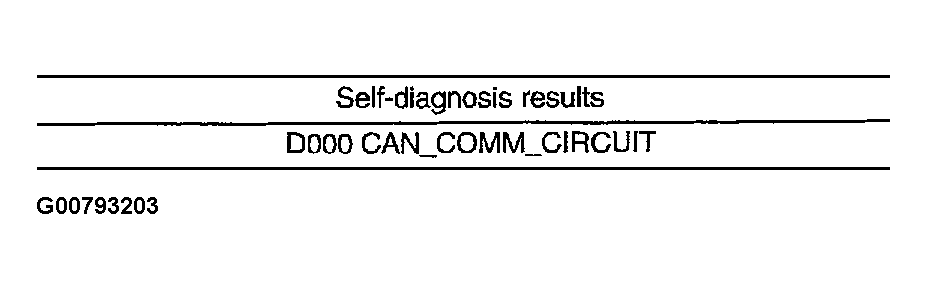

Fig 1: Self-Diagnosis Results Chart
Courtesy of NISSAN MOTOR CO., U.S.A.

Is the other item except above indicated in self-diagnosis results?

Yes: Repair or replace related parts.

No: GO TO 2.
Can Communication System Check
Check "CAN diagnosis support monitor" of the data monitor items.

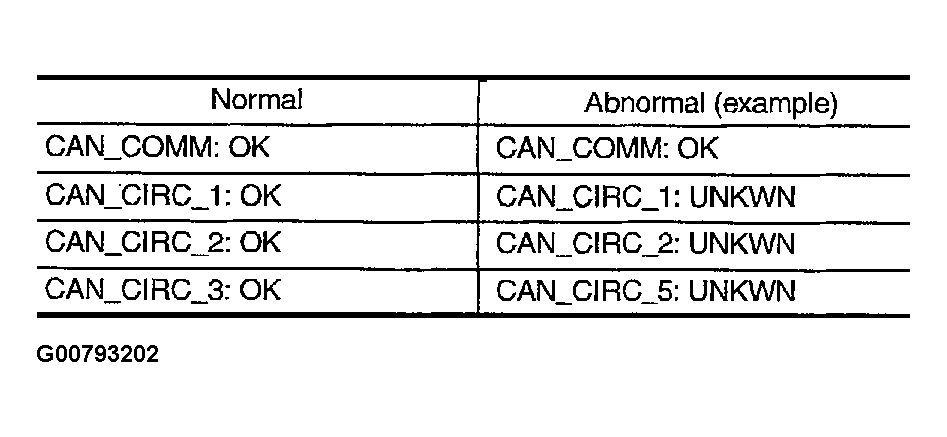

Fig 2: CAN Communication System Self-Diagnosis Results
Courtesy of NISSAN MOTOR CO., U.S.A.

: After printing the monitor items, go to CAN SYSTEM
