Active Test Procedure

When conducting Active test, vehicle must be stationary.
When ABS warning lamp or SLIP indicator lamp stays on, never conduct Active test.

Turn ignition switch OFF.
Connect CONSULT-II to Data Link Connector.
Start engine.
Touch "START" on CONSULT-II screen.

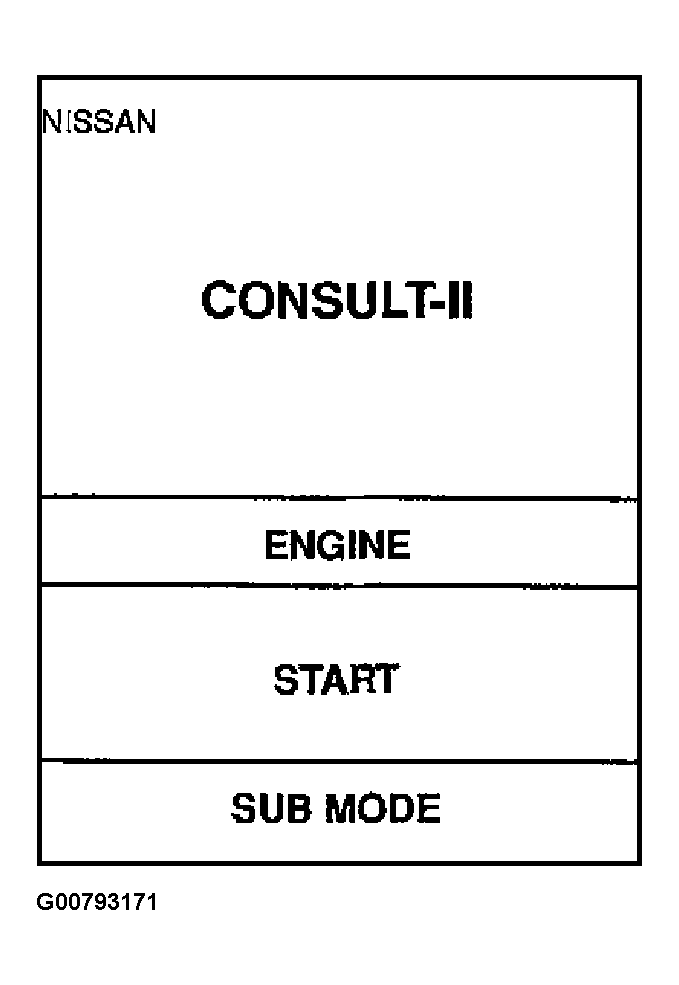

Fig 1: Displaying CONSULT-II START Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "ABS".

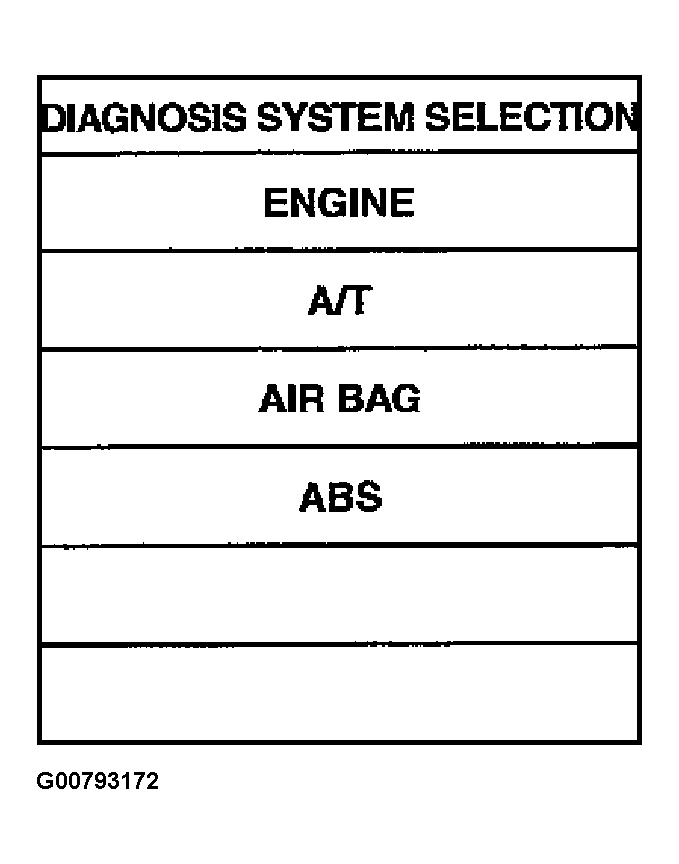

Fig 2: Displaying DIAGNOSIS SYSTEM SELECTION Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "ACTIVE TEST".

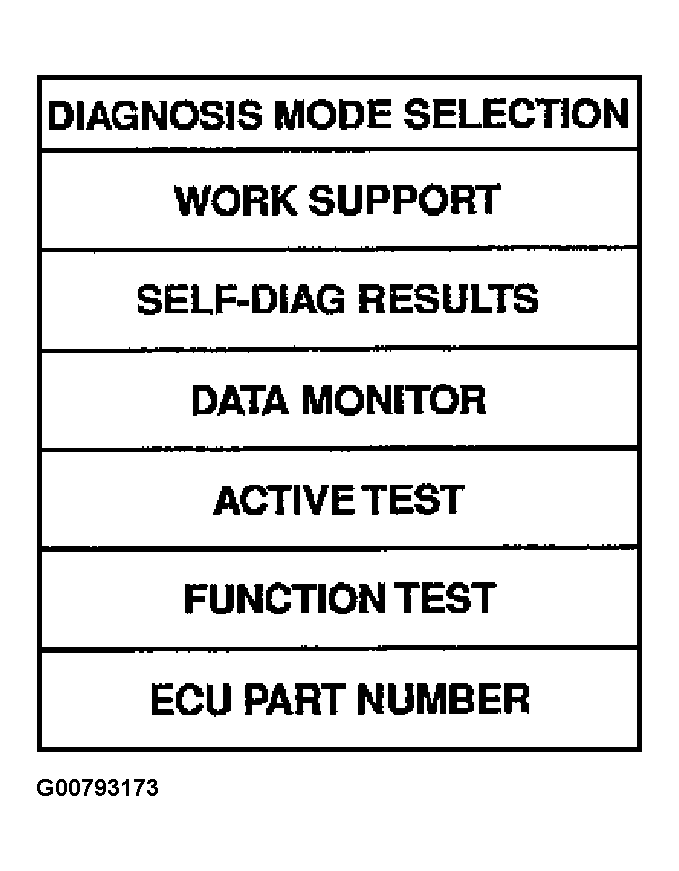

Fig 3: Displaying DIAGNOSIS MODE SELECTION Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Select active test item by touching screen.

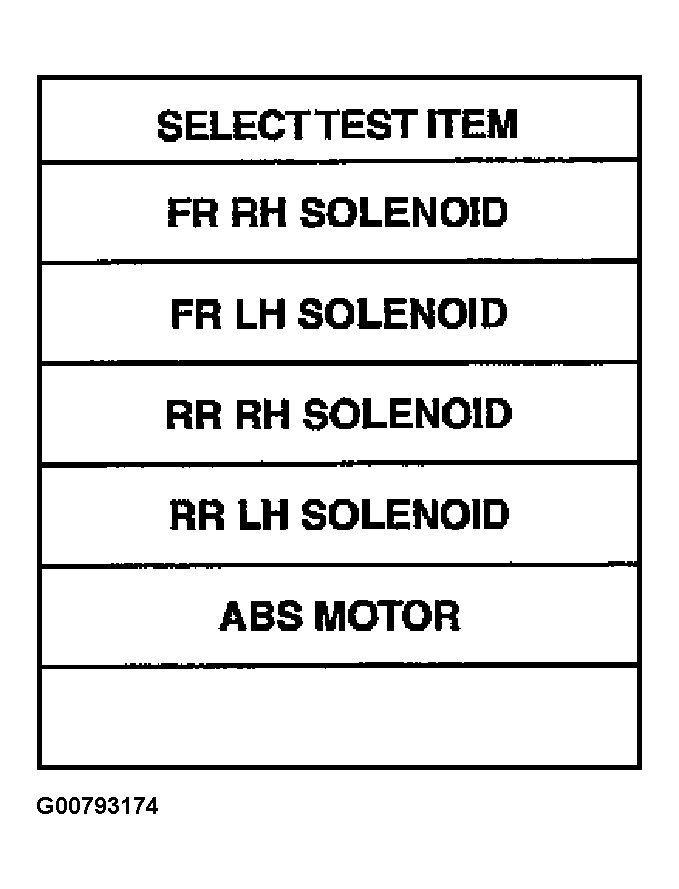

Fig 4: Displaying SELECT TEST ITEM Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "START".

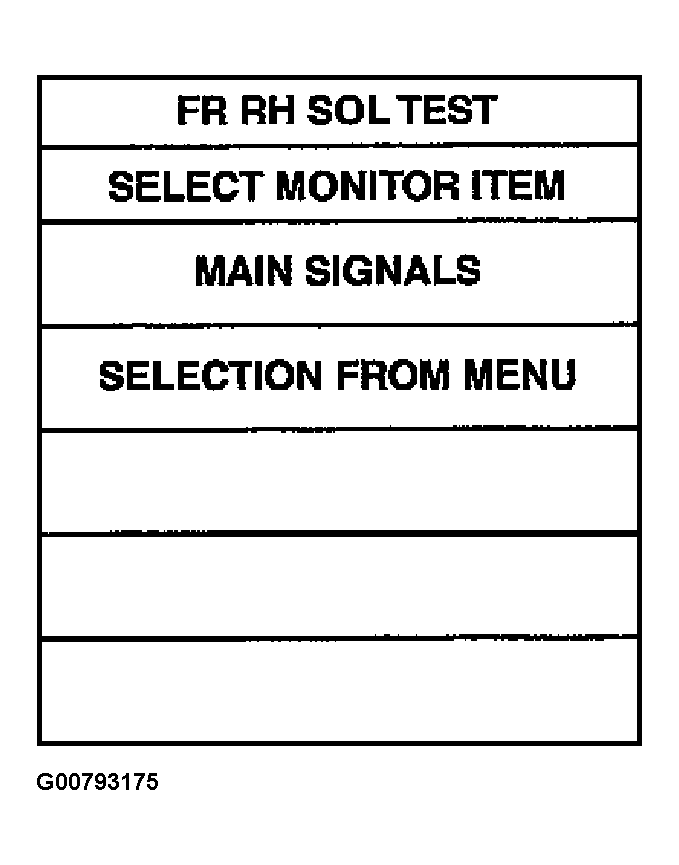

Fig 5: Displaying CONSULT-II START Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Carry out the active test by touching screen key.
