Data Monitor Procedure

  1. Turn ignition switch OFF.
  2. Connect CONSULT-II to data link connector.
  3. Turn ignition switch ON.
  4. Touch "START" on CONSULT-II screen.

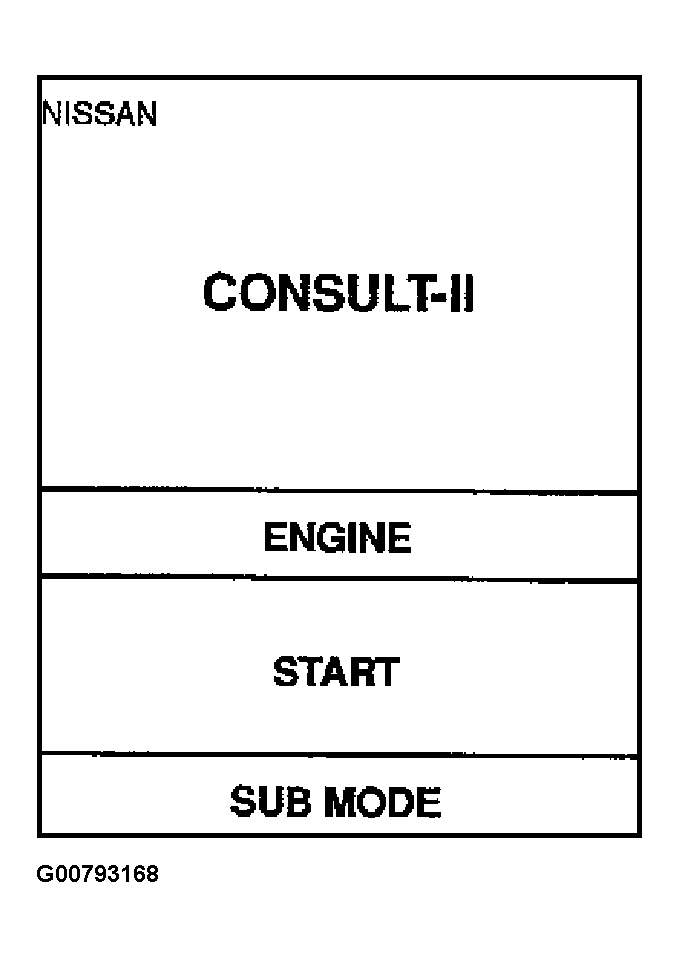

    Fig 1: Displaying CONSULT-II START Screen
    G00793168Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Touch "ABS".

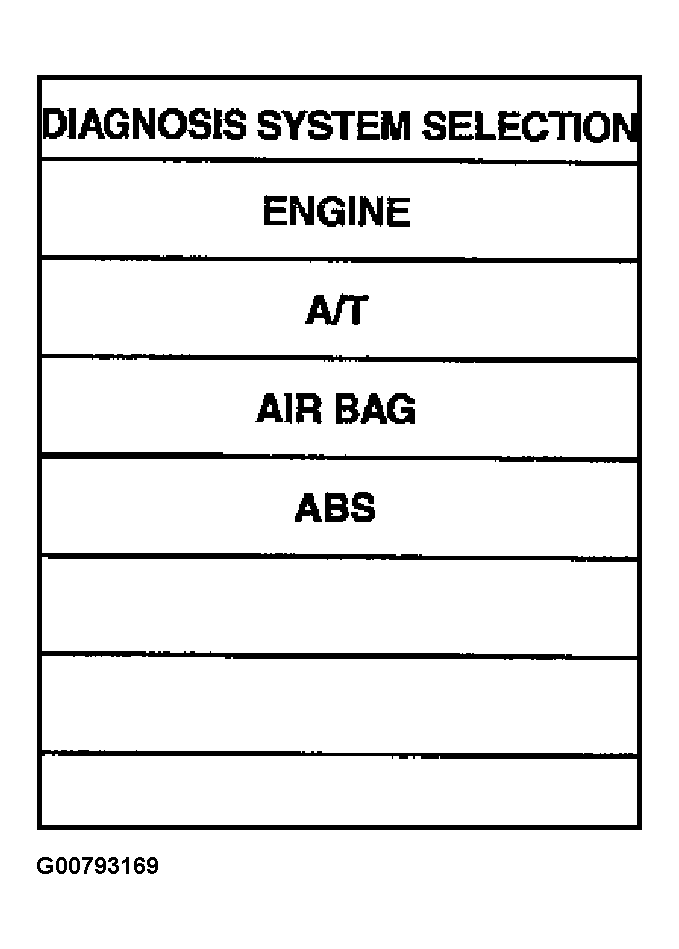

    Fig 2: Displaying DIAGNOSIS SYSTEM SELECTION Screen
    G00793169Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Touch "DATA MONITOR".
  7. Touch "SETTING" on "SELECT MONITOR ITEM" screen.
  8. Touch "START" on "SELECT MONITOR ITEM".

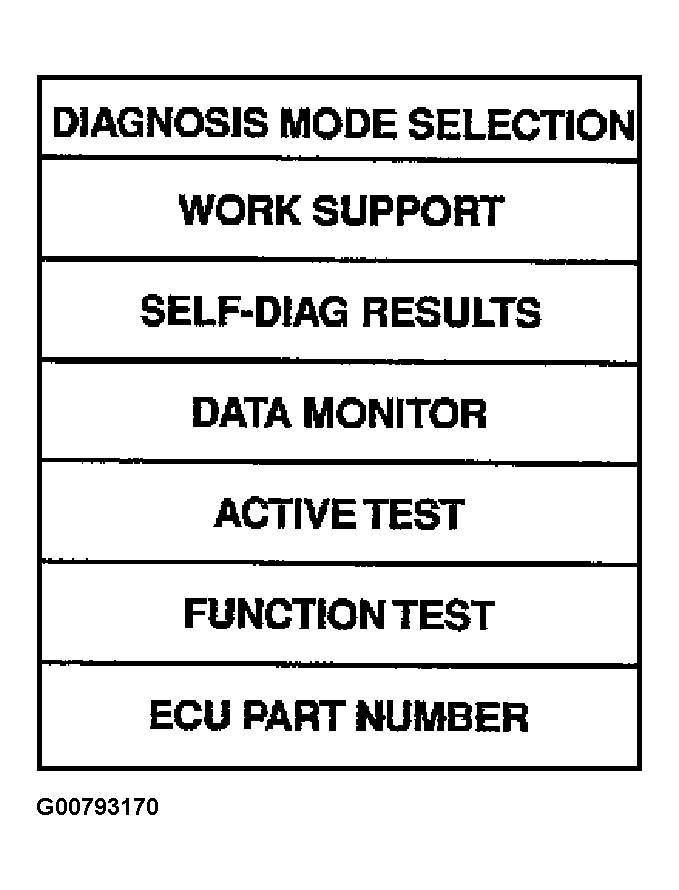

Fig 3: Displaying DIAGNOSIS MODE SELECTION Screen
G00793170Courtesy of NISSAN MOTOR CO., U.S.A.
