Standards Using A Circuit Tester And Oscilloscope

CAUTION: Connect the connectors for the VDC/TCS/ABS control unit and actuator, and turn the ignition switch ON.

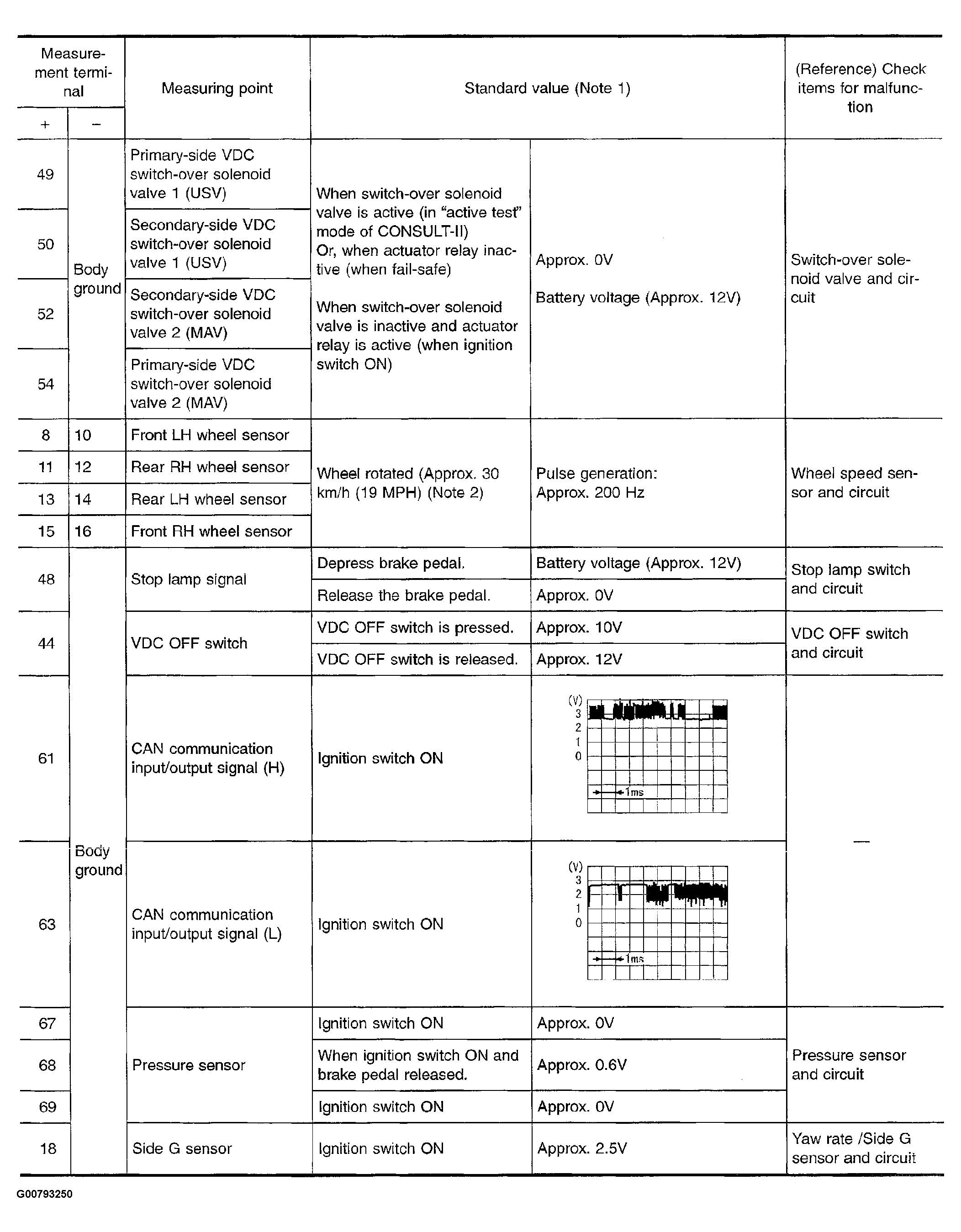

Fig 1: Standards Using Circuit Tester & Oscilloscope (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

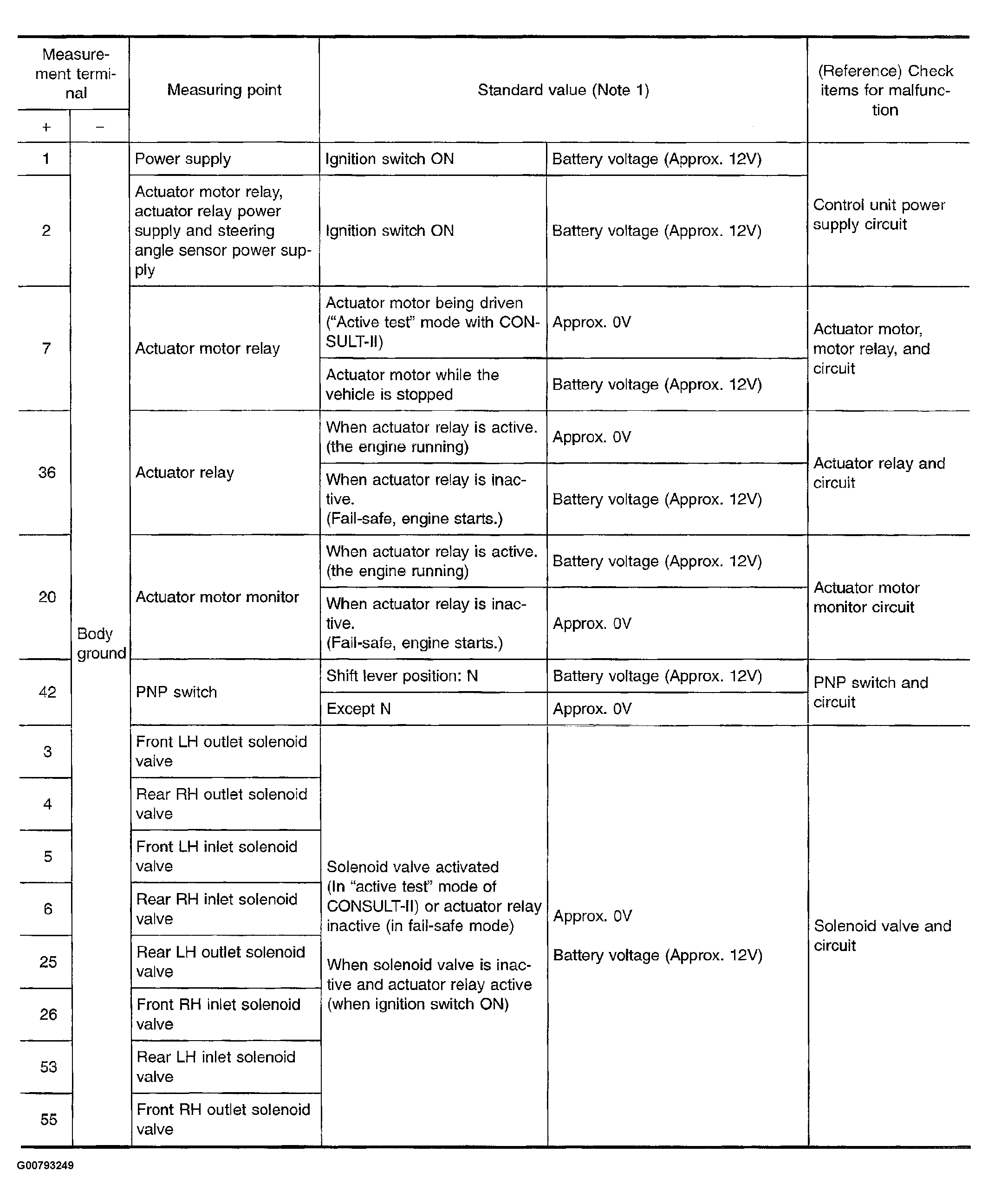

Fig 2: Standards Using Circuit Tester & Oscilloscope (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

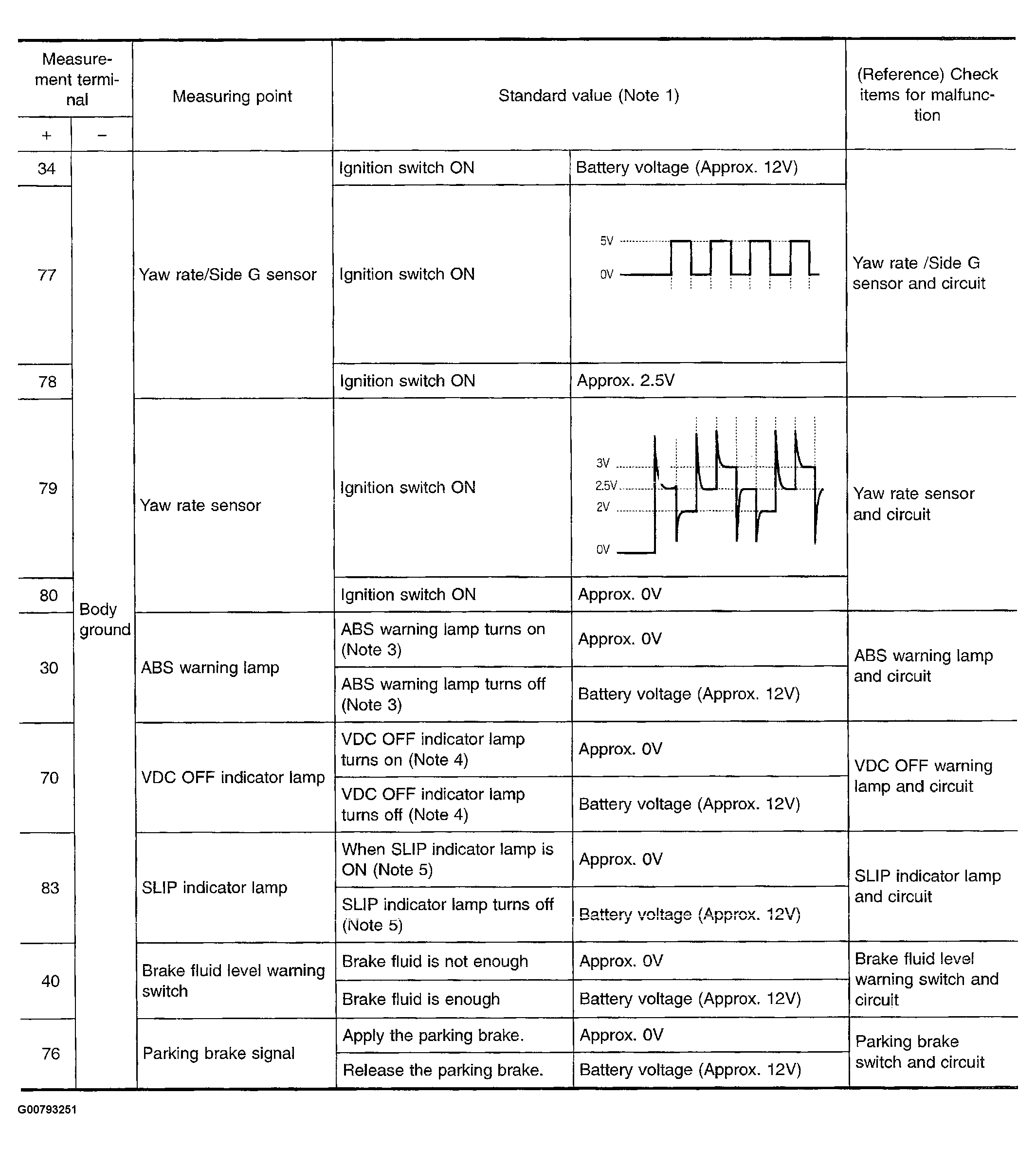

Fig 3: Standards Using Circuit Tester & Oscilloscope (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.
