Lubrication Circuit

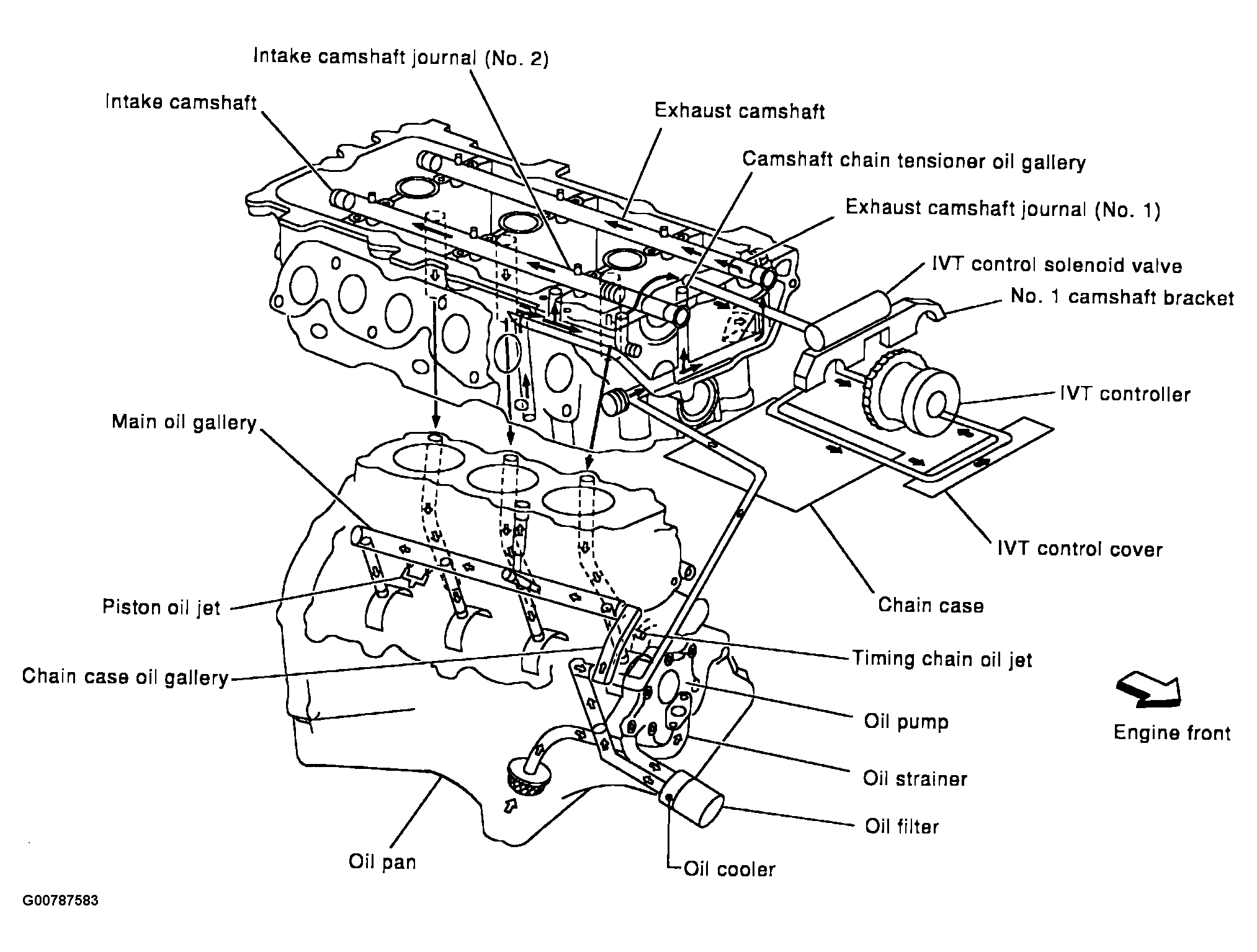

Fig 1: Identifying Lubrication Circuit
G00787583Courtesy of NISSAN MOTOR CO., U.S.A.

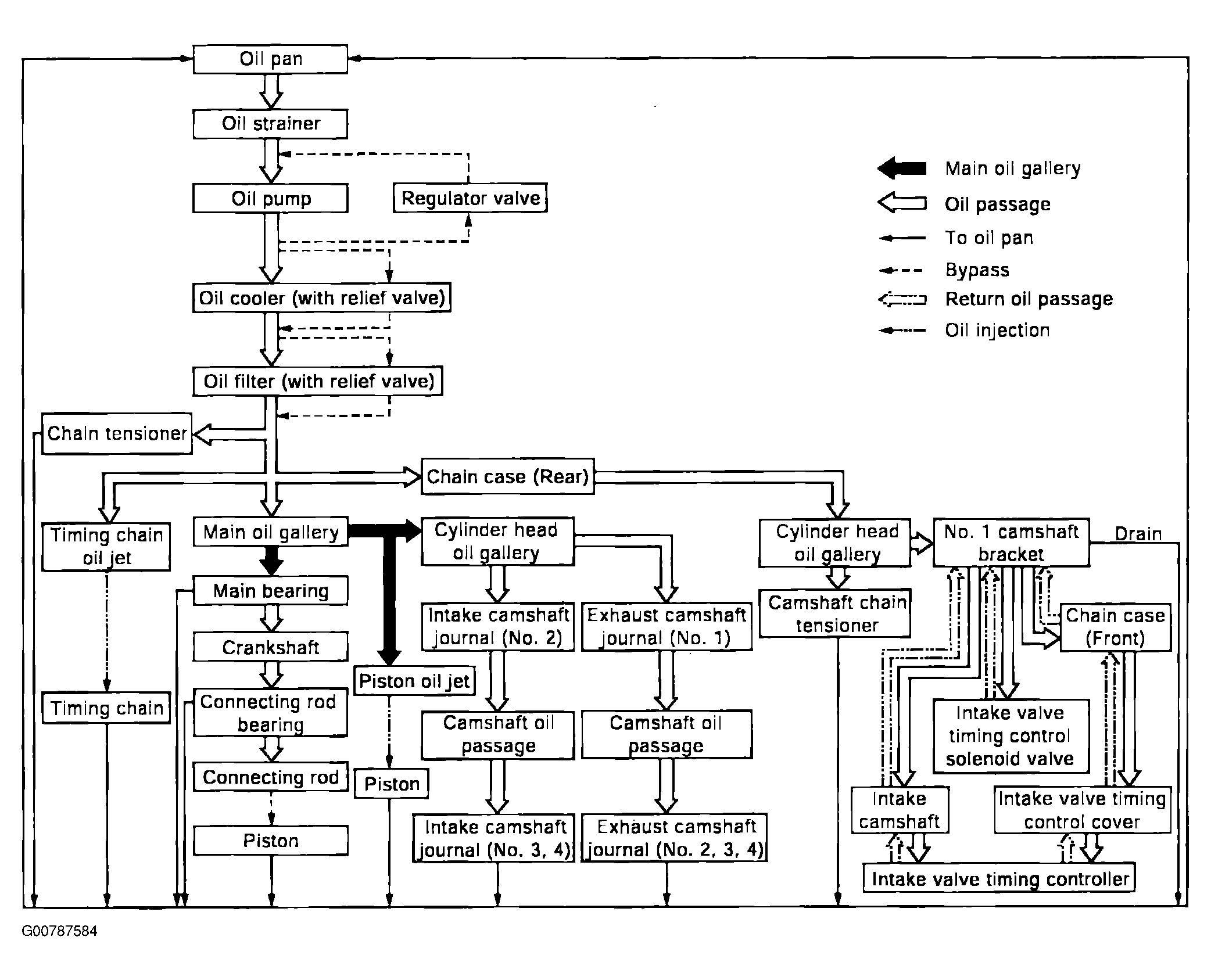

Fig 2: Engine Lubrication System Diagram
G00787584Courtesy of NISSAN MOTOR CO., U.S.A.
