Cylinder Block: Components

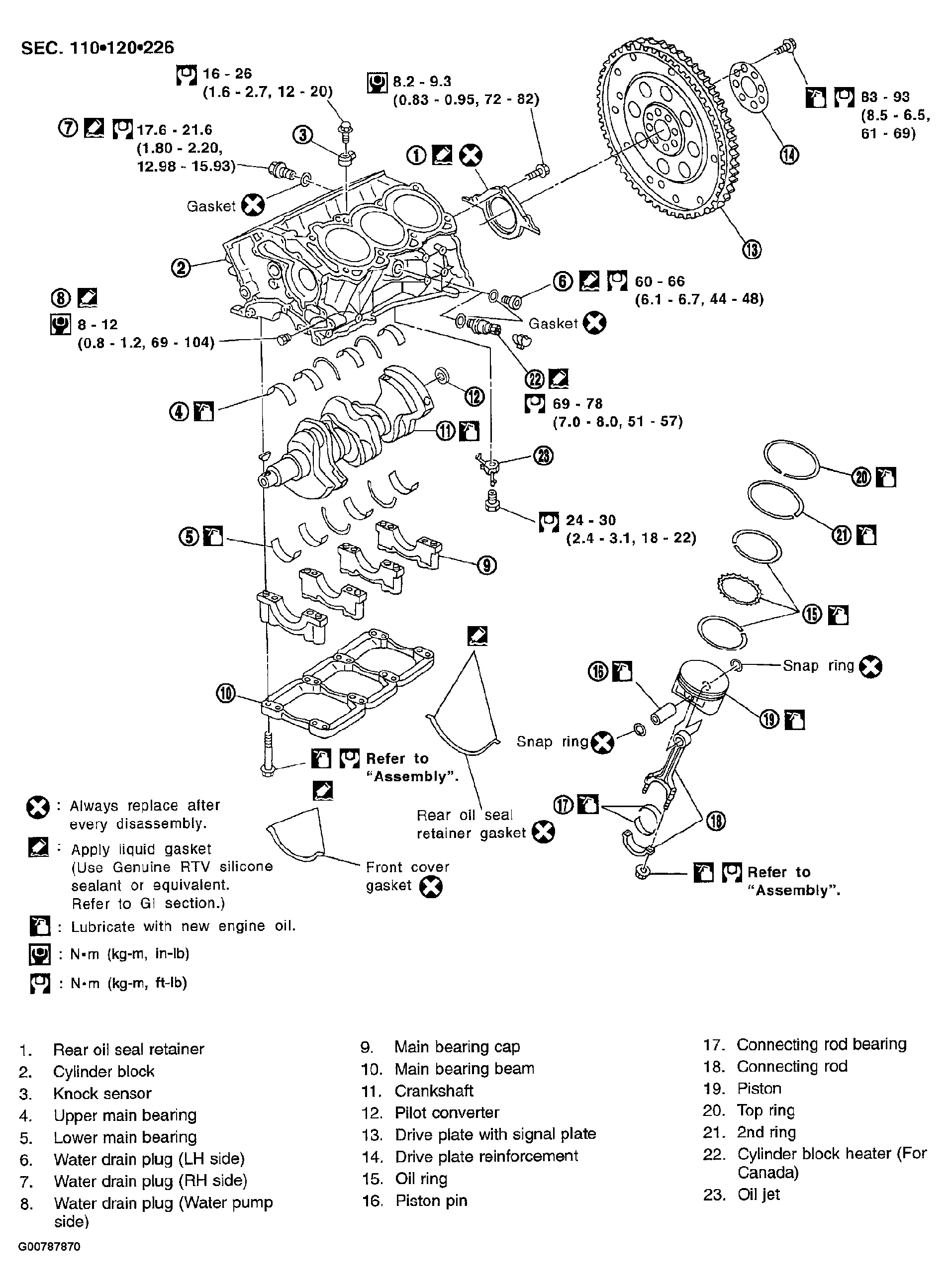

Fig 1: Exploded View Of Cylinder Block
Courtesy of NISSAN MOTOR CO., U.S.A.

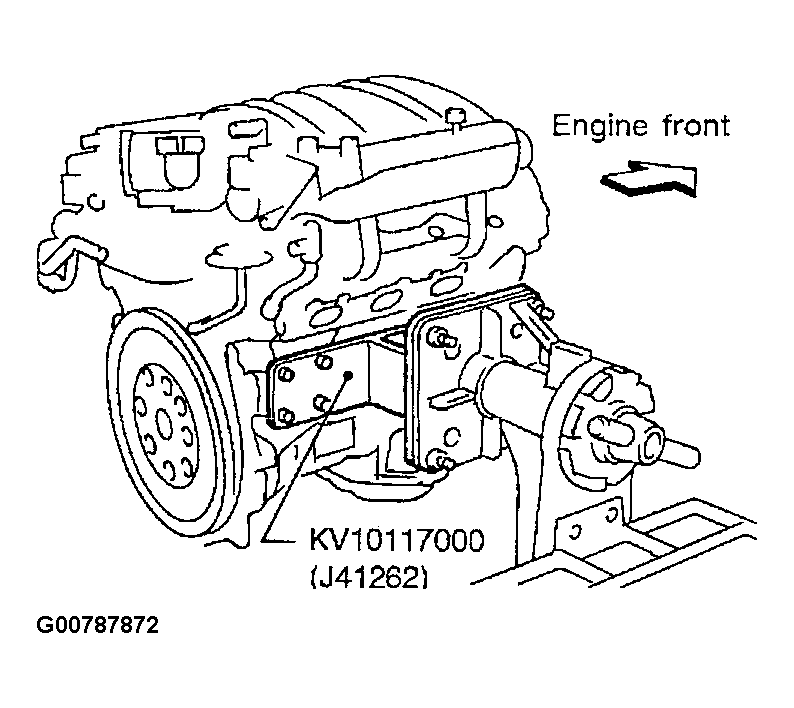

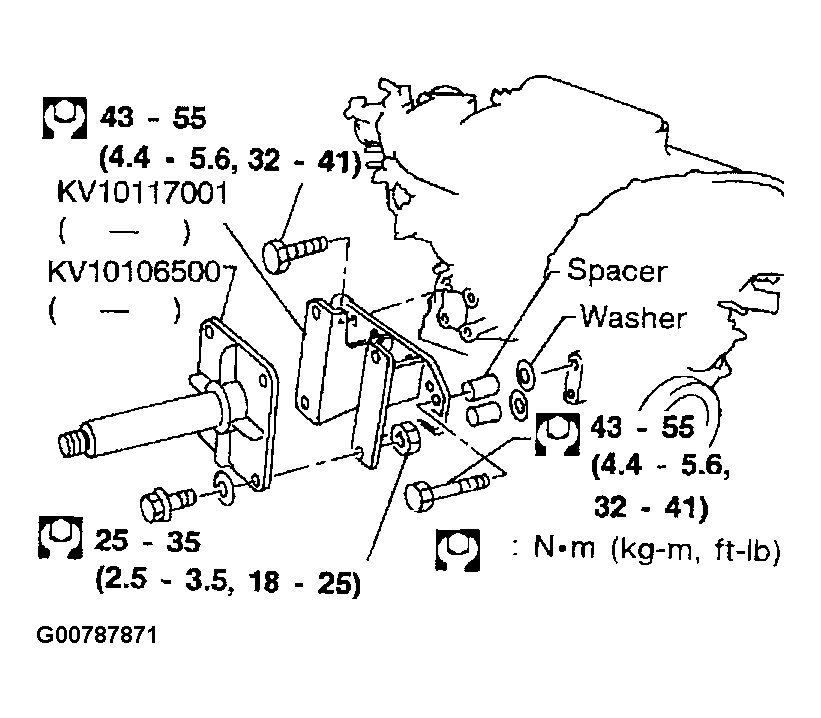

Fig 2: Removing Components
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 3: Removing Oil Pan
Courtesy of NISSAN MOTOR CO., U.S.A.

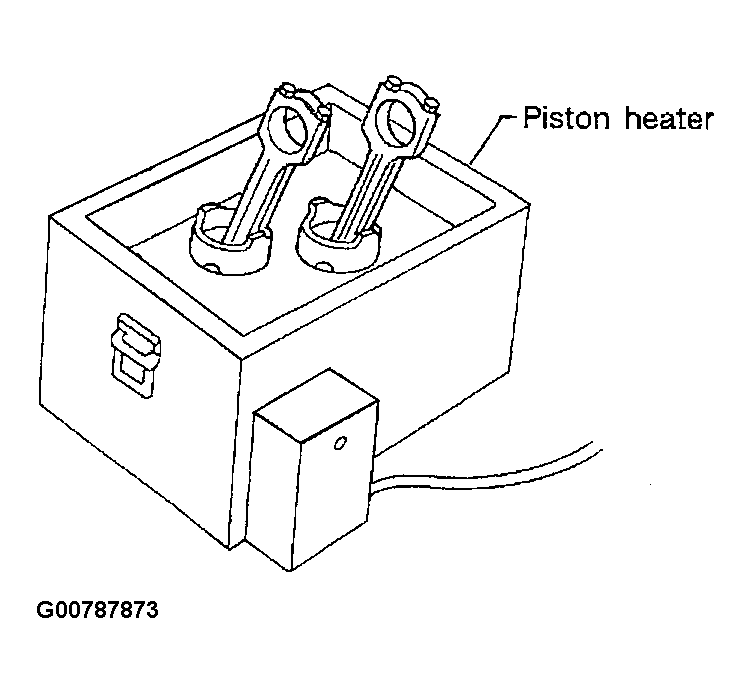

Fig 4: Heating Pistons And Connecting Rods
Courtesy of NISSAN MOTOR CO., U.S.A.

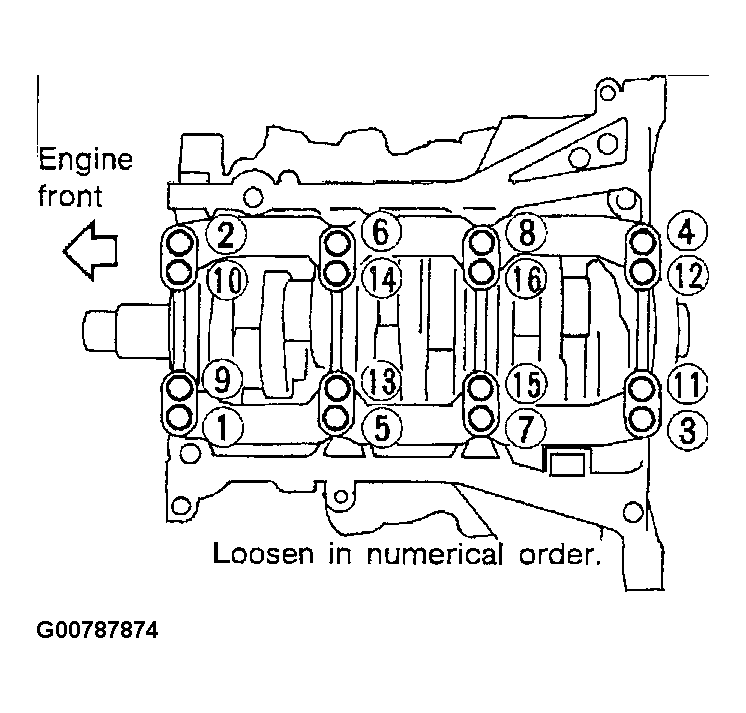

Fig 5: Removing Bearing Beam And Bearing Cap
Courtesy of NISSAN MOTOR CO., U.S.A.

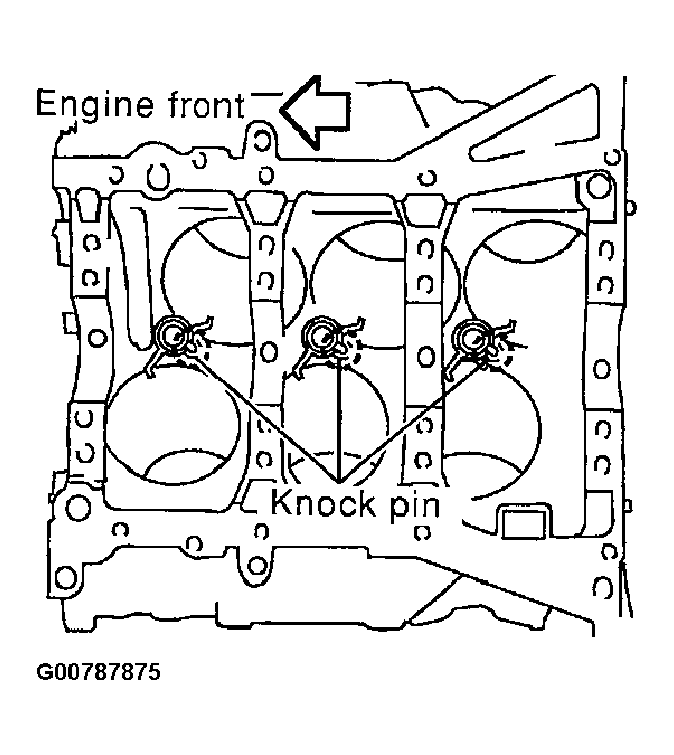

Fig 6: Removing Oil Jets
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
