System Description

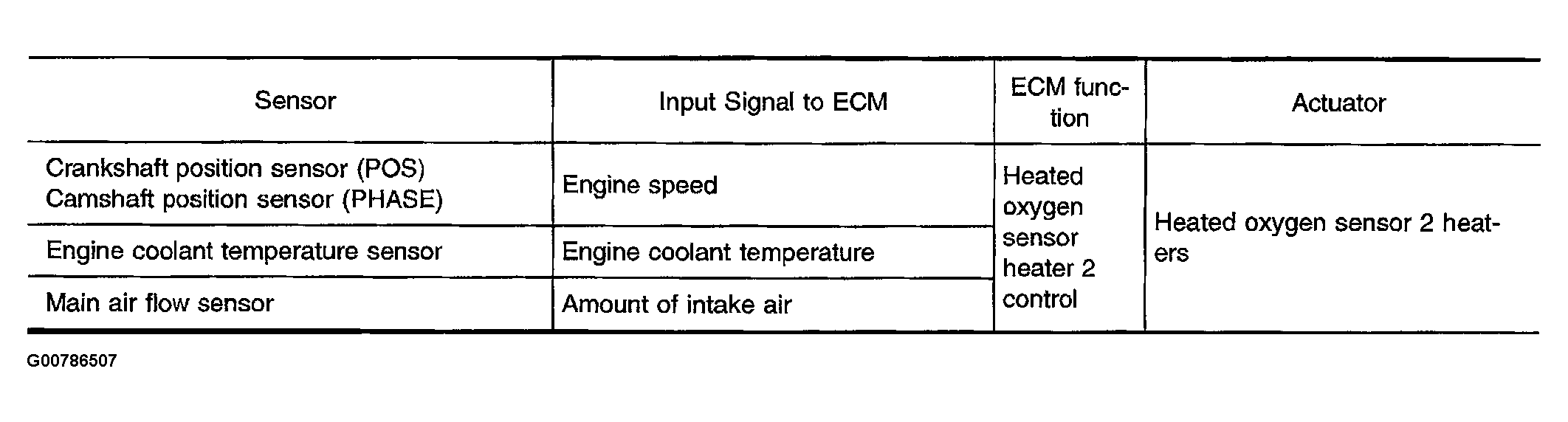

Fig 1: Identifying Sensor System Descriptions

Courtesy of NISSAN MOTOR CO., U.S.A.

The ECM performs ON/OFF control of the heated oxygen sensor 2 heaters corresponding to the engine speed, amount of intake air and engine coolant temperature.
