DTC Confirmation Procedure

NOTE: If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at least 10 seconds before conducting the next test.

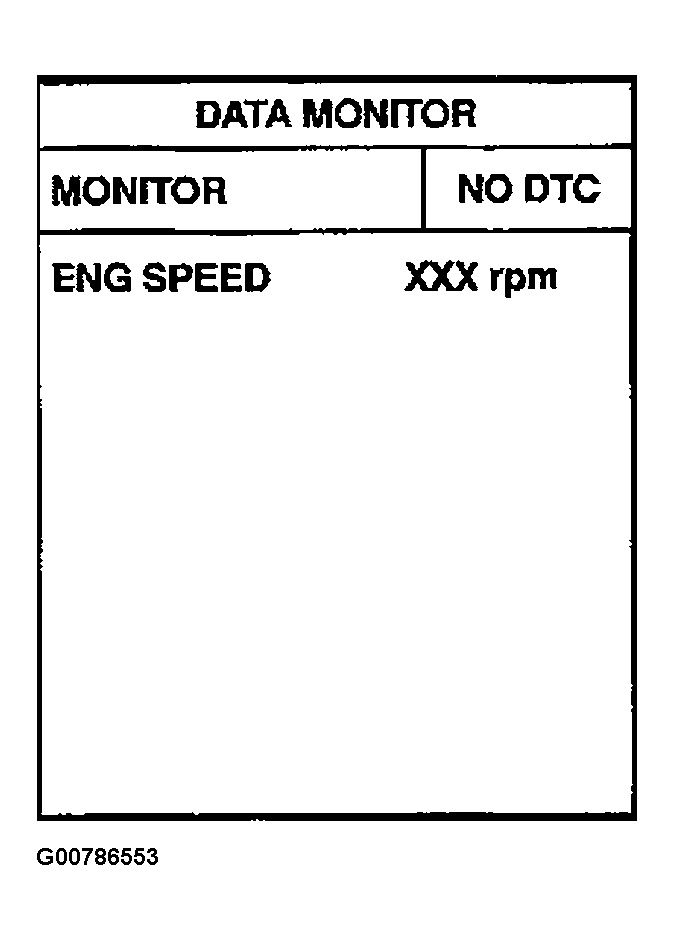

Fig 1: Displaying CONSULT-II DATA MONITOR Screen

Courtesy of NISSAN MOTOR CO., U.S.A.

WITH CONSULT-II

Turn ignition switch ON.
Select DATA MONITOR mode with CONSULT-II. See Figure .
Wait at least 5 seconds.
If 1st trip DTC is detected, go to DIAGNOSTIC PROCEDURE .

WITH GST

Follow the procedure, With CONSULT-II.
