DTC P0117 & DTC P0118: ECT Sensor: Wiring Diagram

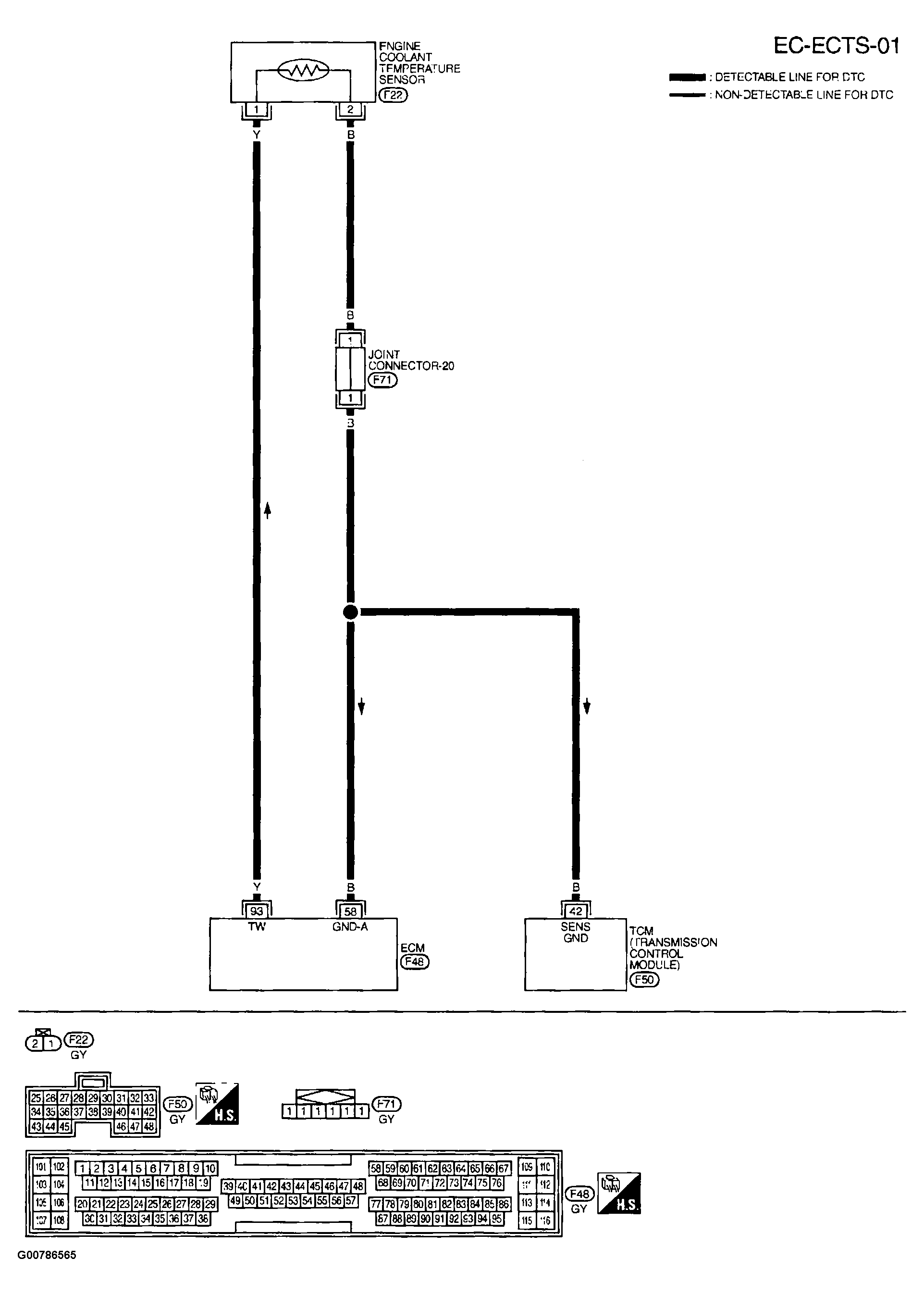

Fig 1: Displaying ECT Sensor Wiring Diagram (EC-ECTS-01)
G00786565Courtesy of NISSAN MOTOR CO., U.S.A.
