DTC P0122 & DTC P0123: TP Sensor: Wiring Diagram

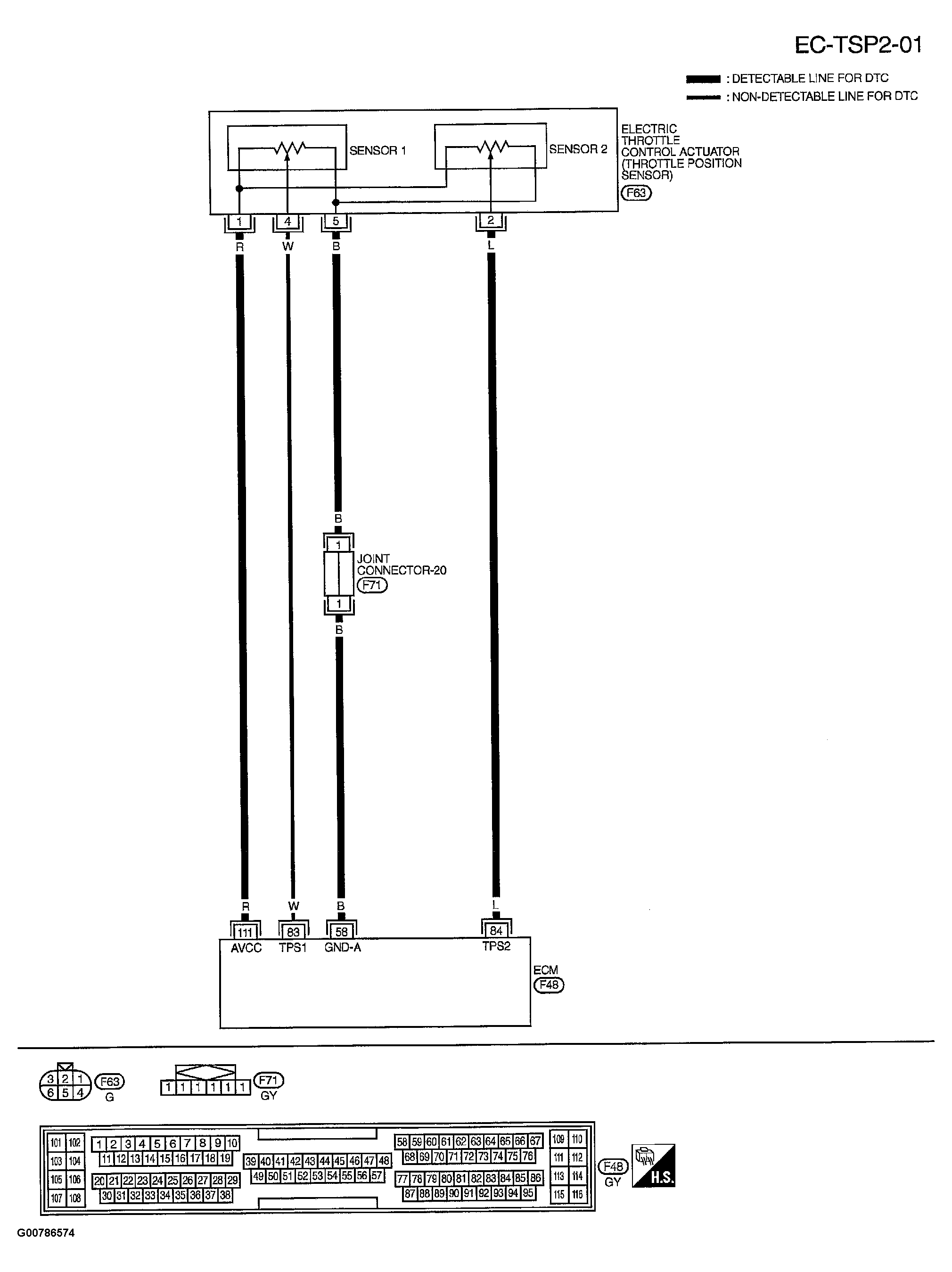

Fig 1: Displaying TP Sensor Wiring Diagram (EC-TSP2-01)

Courtesy of NISSAN MOTOR CO., U.S.A.

Specification data are reference values and are measured between each terminal and ground.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damages to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

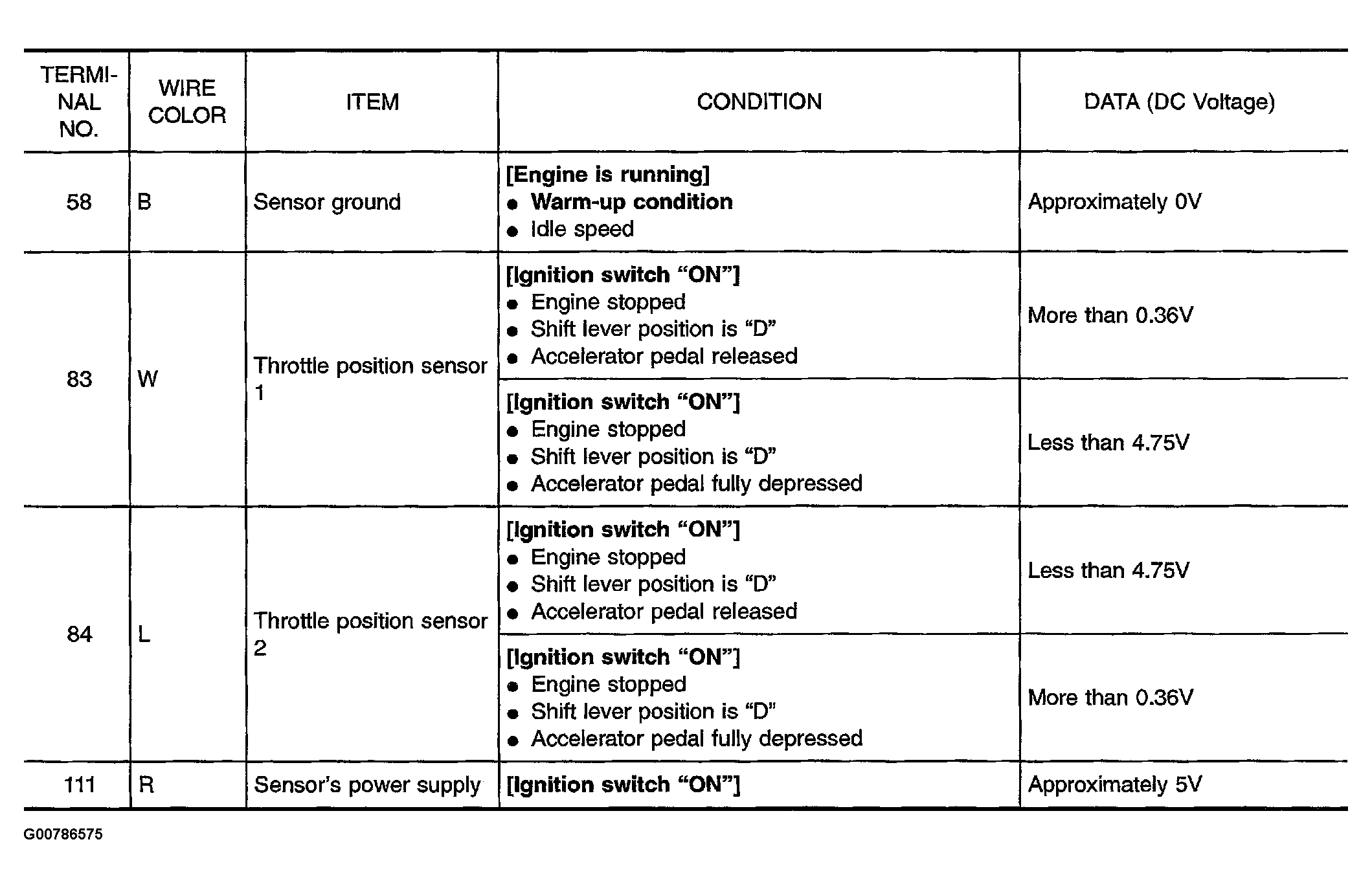

Fig 2: Displaying Terminal Reference Values

Courtesy of NISSAN MOTOR CO., U.S.A.
