On Board Diagnosis Logic

To judge the malfunction, the diagnosis checks that the heated oxygen sensor 1 output is not inordinately high.

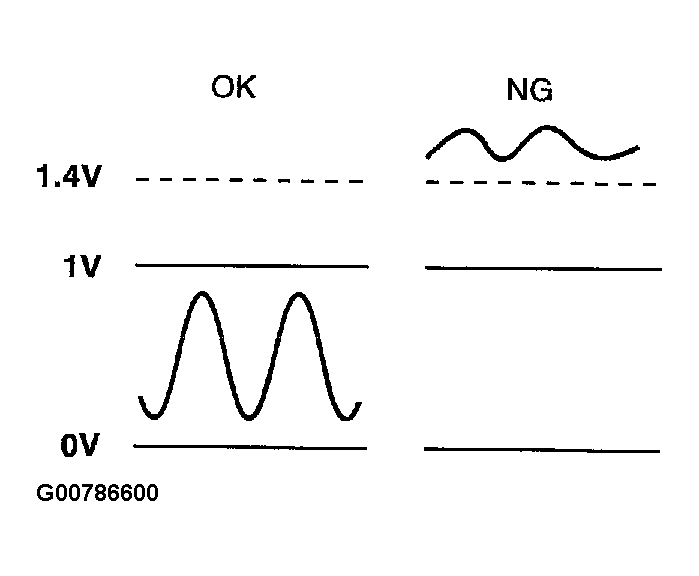

Fig 1: Displaying Heated Oxygen Sensor Output

Courtesy of NISSAN MOTOR CO., U.S.A.

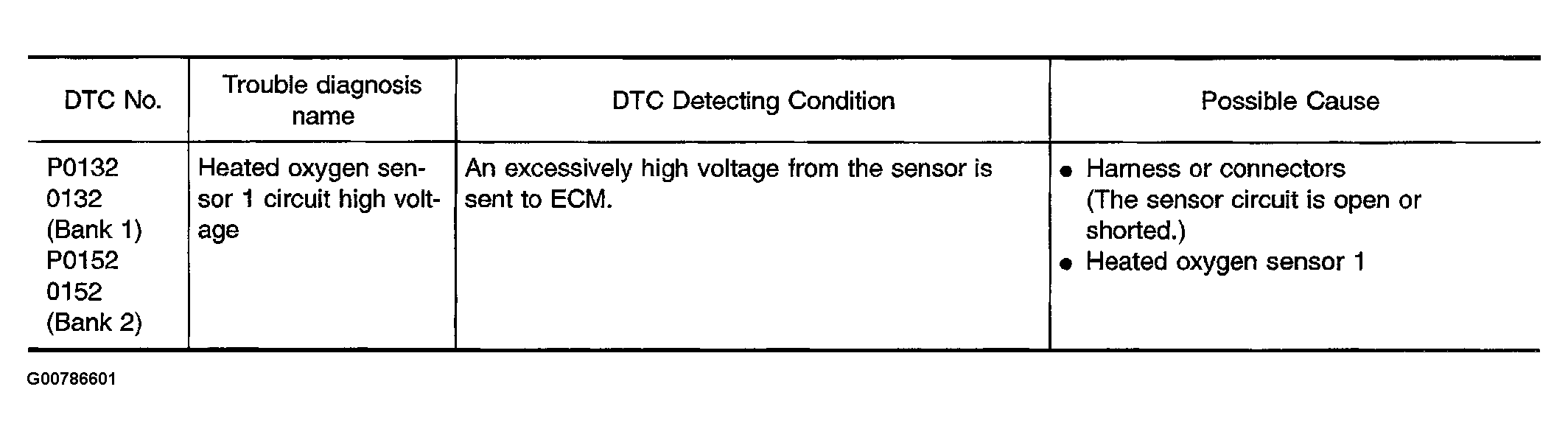

Fig 2: DTC Detecting Condition And Possible Causes

Courtesy of NISSAN MOTOR CO., U.S.A.
