DTC P0447: EVAP Canister Vent Control Value: Wiring Diagram

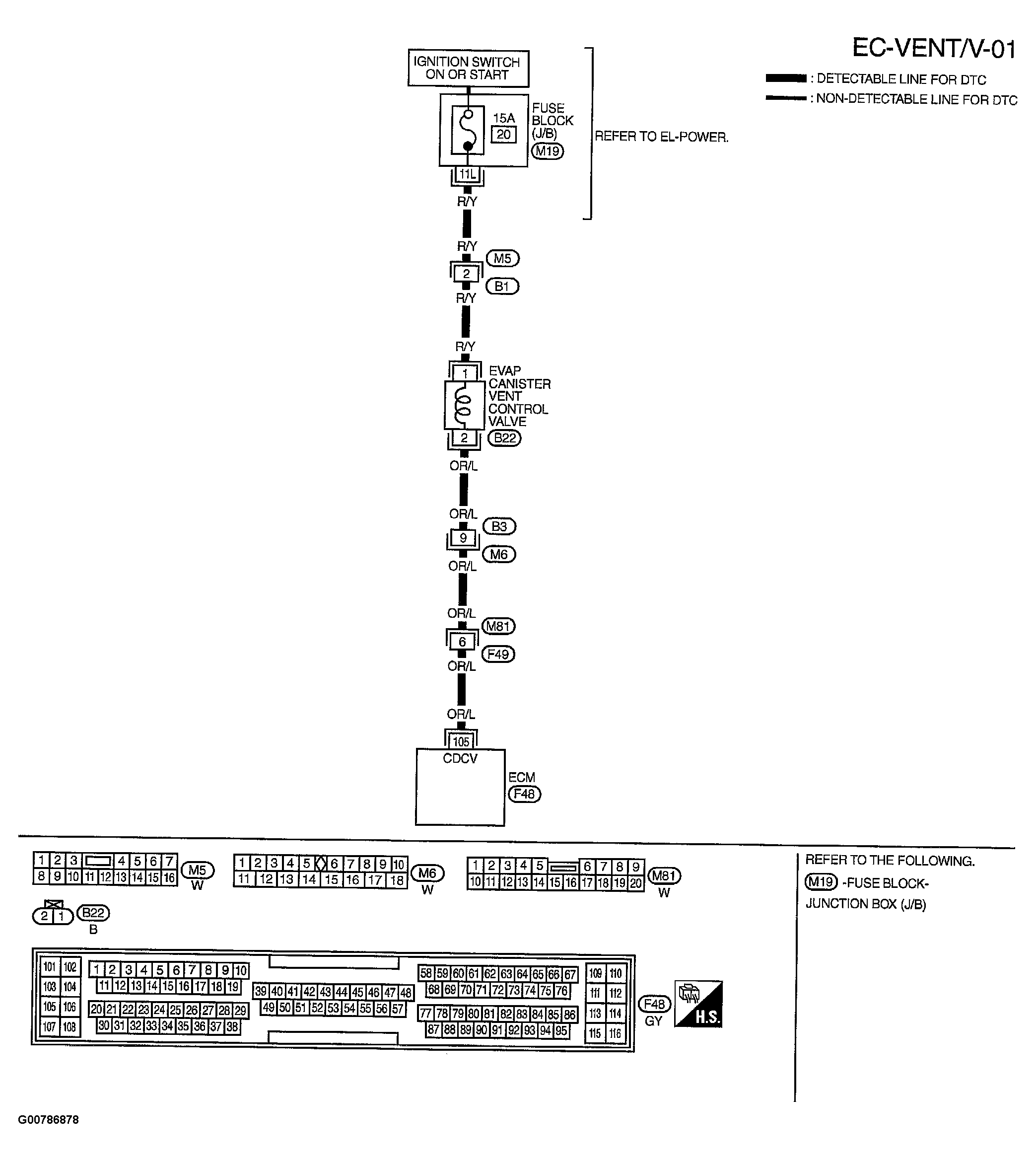

Fig 1: Displaying Wiring Diagram (EC-VENT/V-01)

Courtesy of NISSAN MOTOR CO., U.S.A.

ECM TERMINALS AND REFERENCE VALUE MEASURED BETWEEN EACH TERMINAL AND GROUND.

CAUTION: DO NOT USE ECM GROUND TERMINALS WHEN MEASURING INPUT/OUTPUT VOLTAGE. DOING SO MAY RESULT IN DAMAGE TO THE ECM'S TRANSISTOR. USE A GROUND OTHER THAN ECM TERMINALS, SUCH AS THE GROUND.

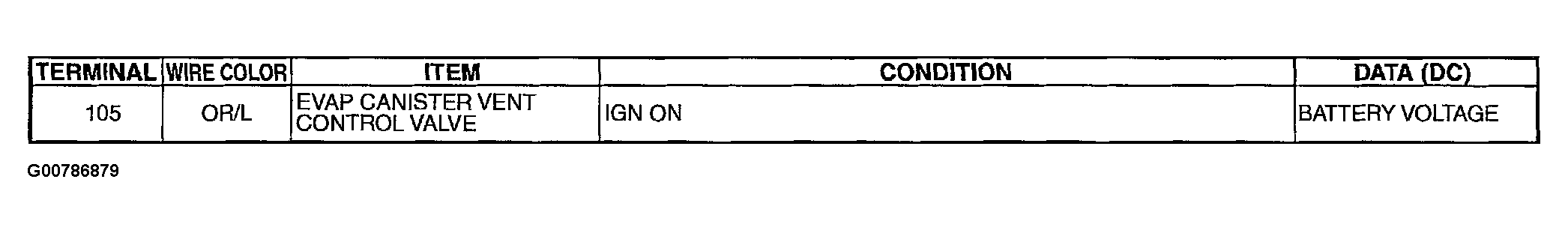

Fig 2: Identifying ECM Terminals And Reference Value

Courtesy of NISSAN MOTOR CO., U.S.A.
