On Board Diagnosis Logic

NOTE: If DTC P0455 is displayed with P1448, perform trouble diagnosis for DTC P1448 first. (See DTC P1448 EVAP CANISTER VENT CONTROL VALVE .)

This diagnosis detects a very large leak (fuel filler cap fell off etc.) in EVAP system between the fuel tank and EVAP canister purge volume control solenoid valve.

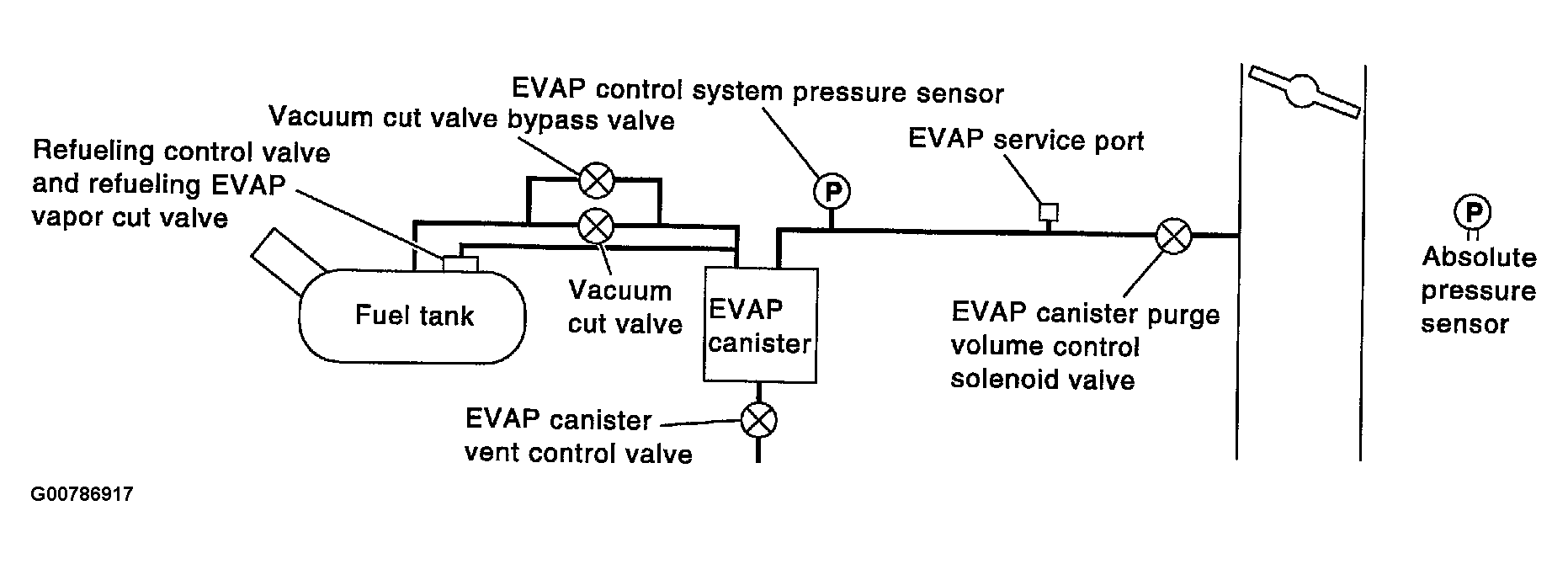

Fig 1: Identifying EVAP Control System

Courtesy of NISSAN MOTOR CO., U.S.A.

Malfunction is detected when EVAP control system has a very large leak such as fuel filler cap fell off, EVAP control system does not operate properly.

CAUTION:

Use only a genuine NISSAN fuel filler cap as a replacement. If an incorrect fuel filler cap is used, the MIL may come on.
If the fuel filler cap is not tightened properly, the MIL may come on.
Use only a genuine NISSAN rubber tube as a replacement.
