Fail-Safe Mode

When the malfunction detected even in the 1st trip, the ECM enters fail-safe mode and the MIL lights up.

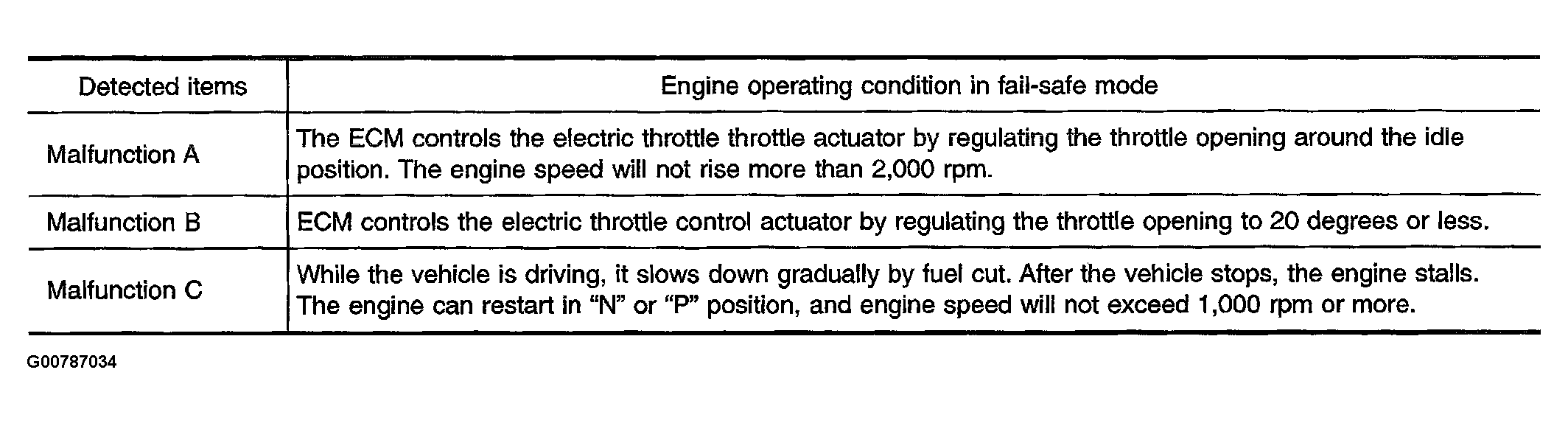

Fig 1: Identifying Engine Operation Condition In Fail-Safe Mode

Courtesy of NISSAN MOTOR CO., U.S.A.
