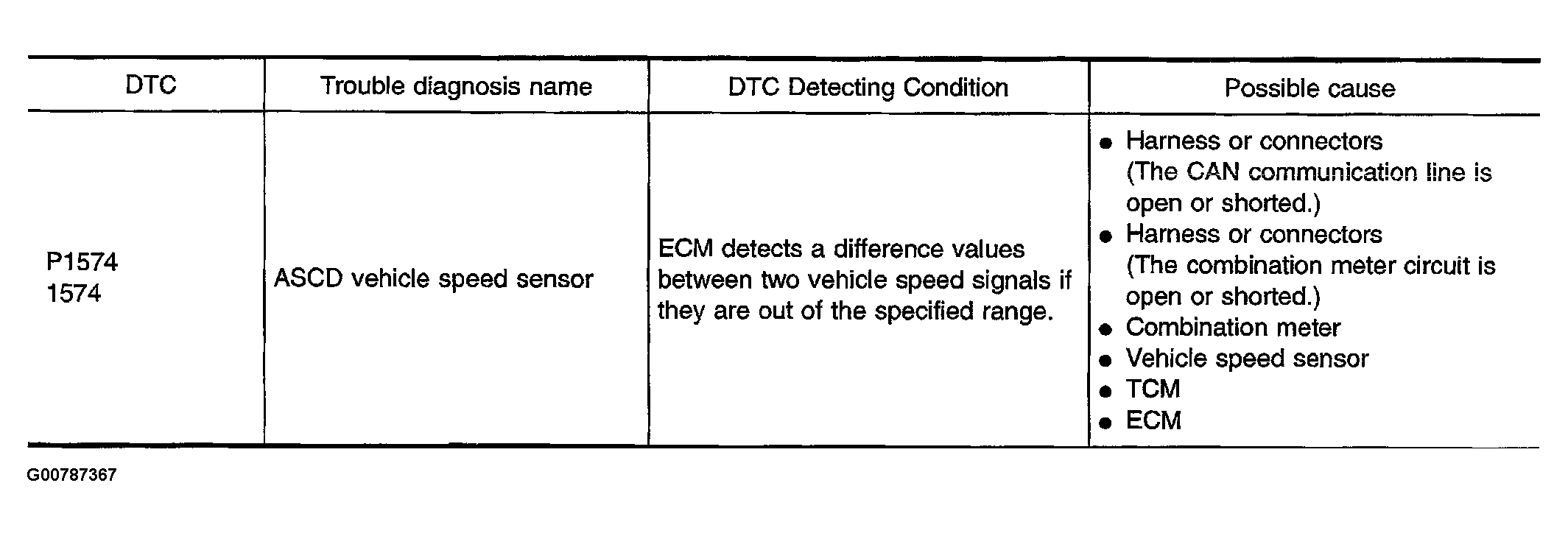

On Board Diagnosis Procedure
The MIL will not light up for this self-diagnosis.
NOTE:
- If DTC P1574 is displayed with DTC U1000, U1001, first perform the trouble diagnosis for DTC U1000, U1001, refer to DTC U1000, U1001 CAN COMMUNICATION LINE .
- If DTC P1574 is displayed with DTC P0500, first perform the trouble diagnosis for DTC P0500. Refer to DTC P0500 VSS .
- If DTC P1574 is displayed with DTC P0605, first perform the trouble diagnosis for DTC P0605. Refer to DTC P0605 ECM .
