Fail-Safe Mode

When the malfunction is detected, the ECM enters fail-safe mode.

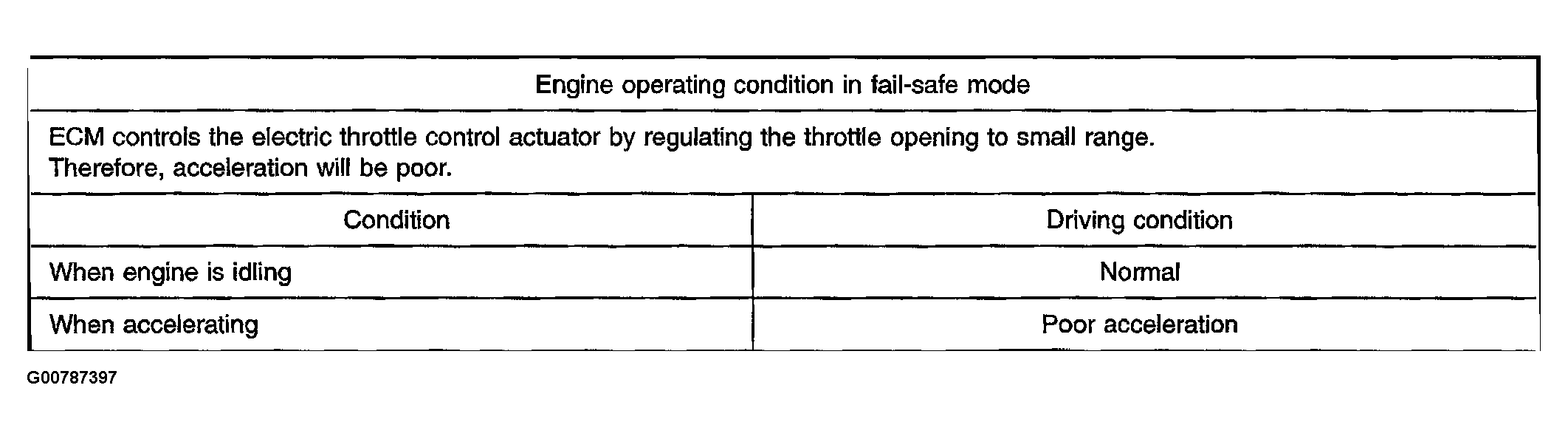

Fig 1: Displaying ECM Fail-Safe Mode

Courtesy of NISSAN MOTOR CO., U.S.A.

Engine operating condition in fail-safe mode

ECM controls the electric throttle control actuator by regulating the throttle opening to small range.

Therefore, acceleration will be poor.
