DTC U1000 & DTC U1001: Can Communication Line: Wiring Diagram

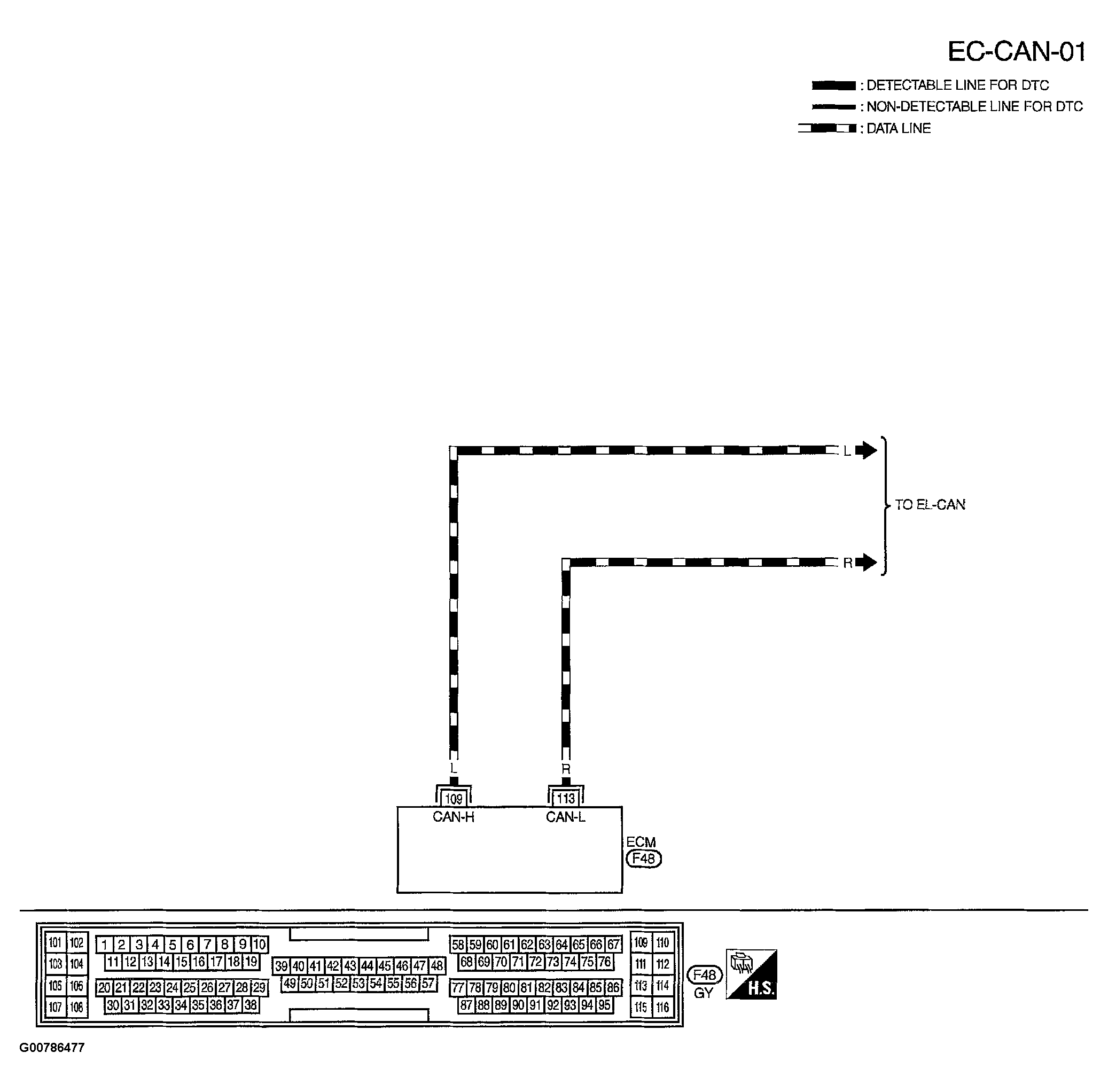

Fig 1: Displaying Wiring Diagram (EC-CAN-01)
G00786477Courtesy of NISSAN MOTOR CO., U.S.A.
