How to Display SRT Code
With CONSULT-II
Selecting SRT STATUS in DTC CONFIRMATION mode with CONSULT-II.
For items whose SRT codes are set, a CMPLT is displayed on the CONSULT-II screen; for items whose SRT codes are not set, INCMP is displayed.
With GST
Selecting Mode 1 with GST (Generic Scan Tool)

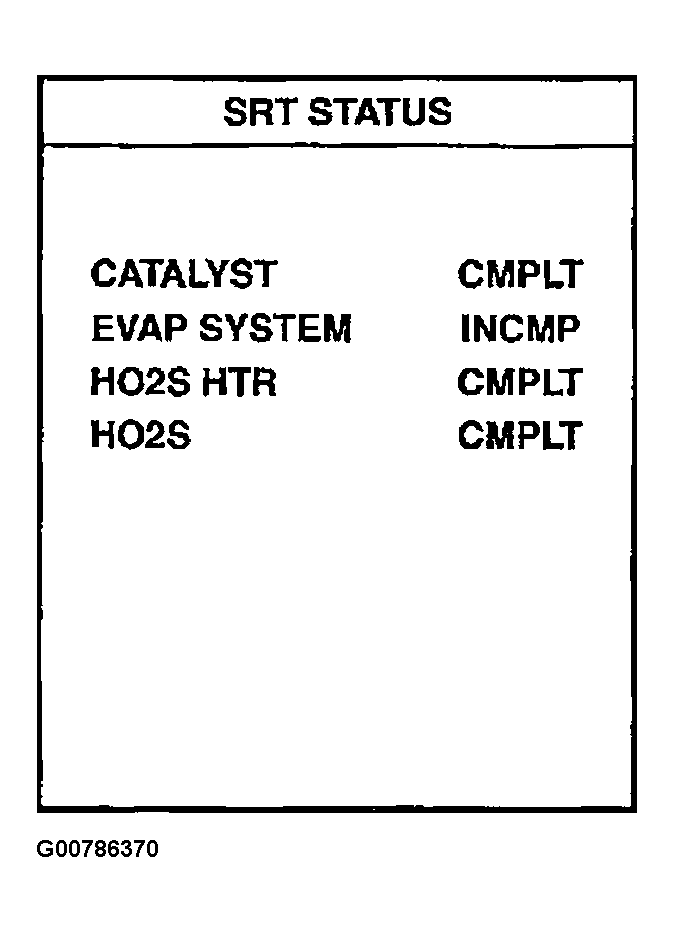

A sample of CONSULT-II display for SRT code is shown in Fig 1 .
"INCMP means the self-diagnosis is incomplete and SRT is not set. CMPLT means the self-diagnosis is complete and SRT is set.
