CLSD THL Pos, ACCEL Sen1, THRTL Sen1

Below is the data for CLSD THL POS, ACCEL SEN1 and THRTL SEN1 when depressing the accelerator pedal with the ignition switch ON and with selector lever in D position (AT models).

The signal of ACCEL SEN1 and THRTL SEN1 should rise gradually without any intermittent drop or rise after CLSD THL POS is changed from ON to OFF.

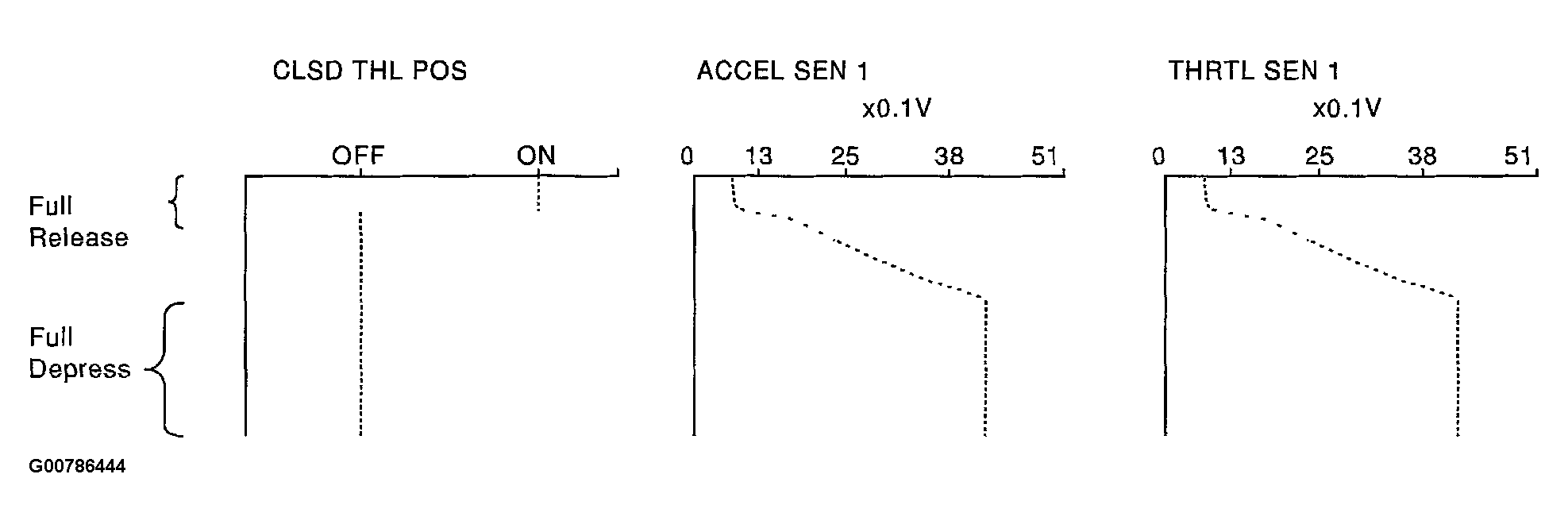

Fig 1: Identifying Major Reference Graphs In DATA MONITOR Mode

Courtesy of NISSAN MOTOR CO., U.S.A.
