NOTE:
If DTC U1000 or U1001 is displayed with other DTC, first perform the trouble diagnosis for DTC U1000, U1001. Refer to DTC U1000, U1001 CAN COMMUNICATION LINE
.

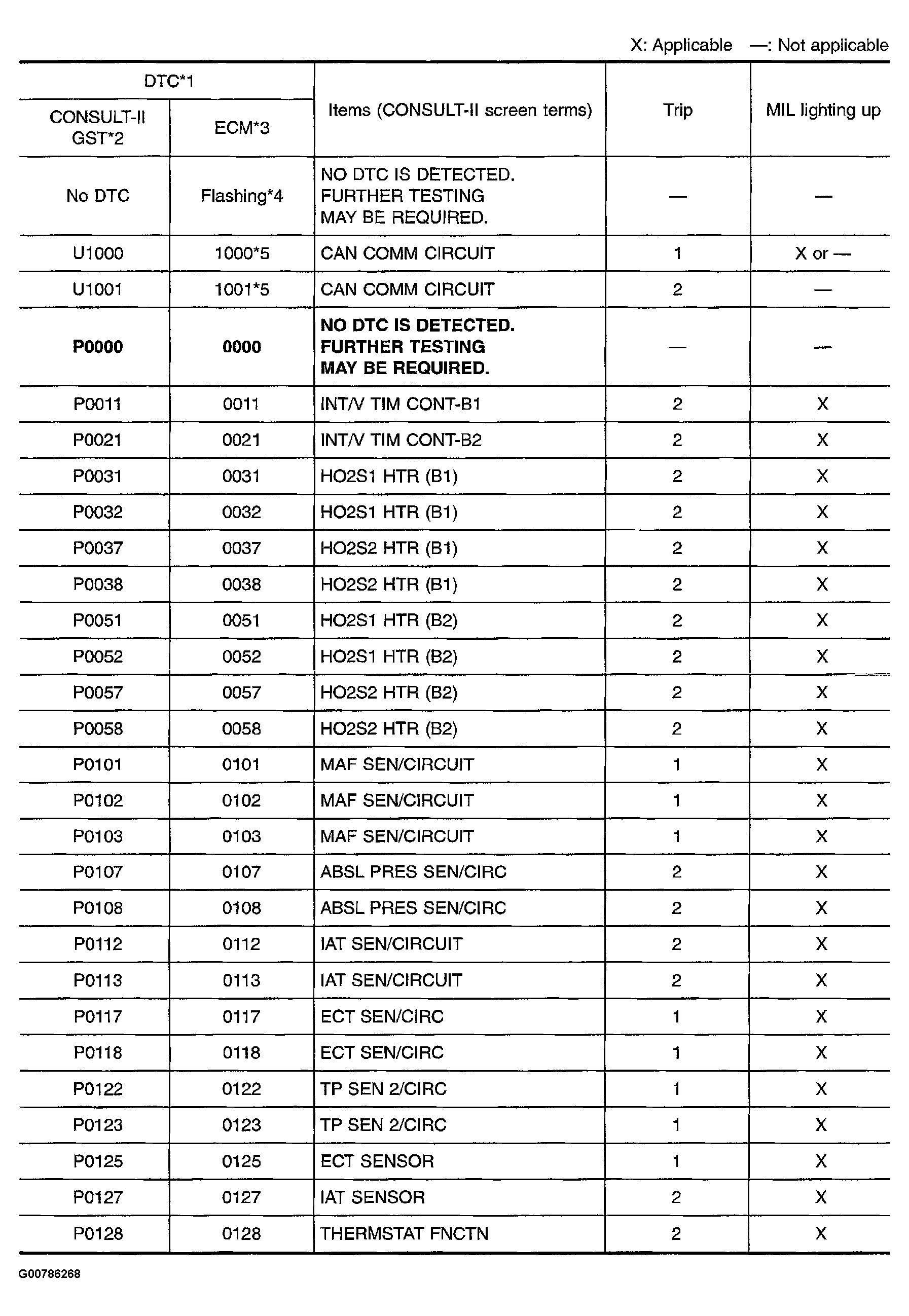

Fig 1: Engine Control System DTC No. Index (1 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.

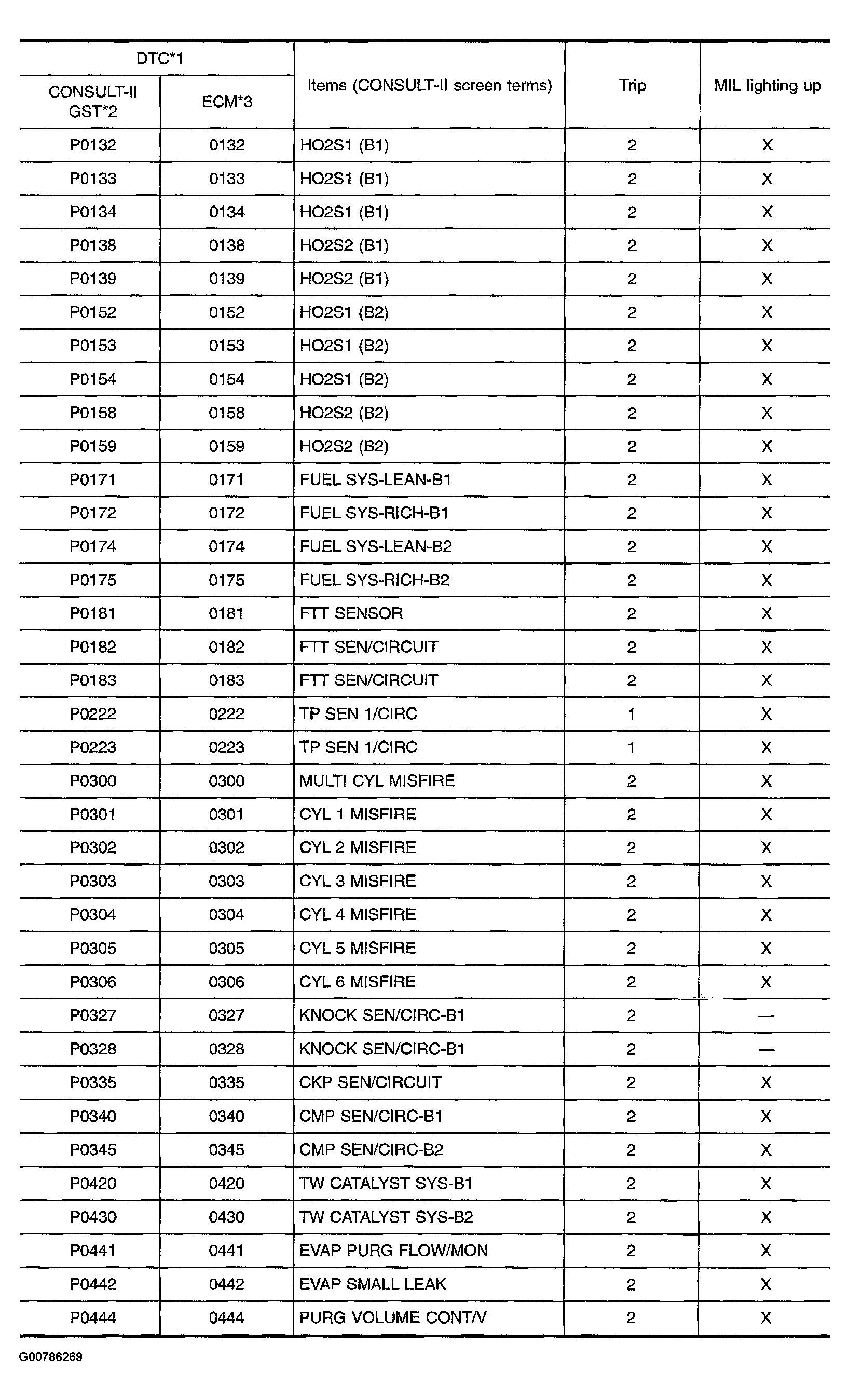

Fig 2: Engine Control System DTC No. Index (2 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.

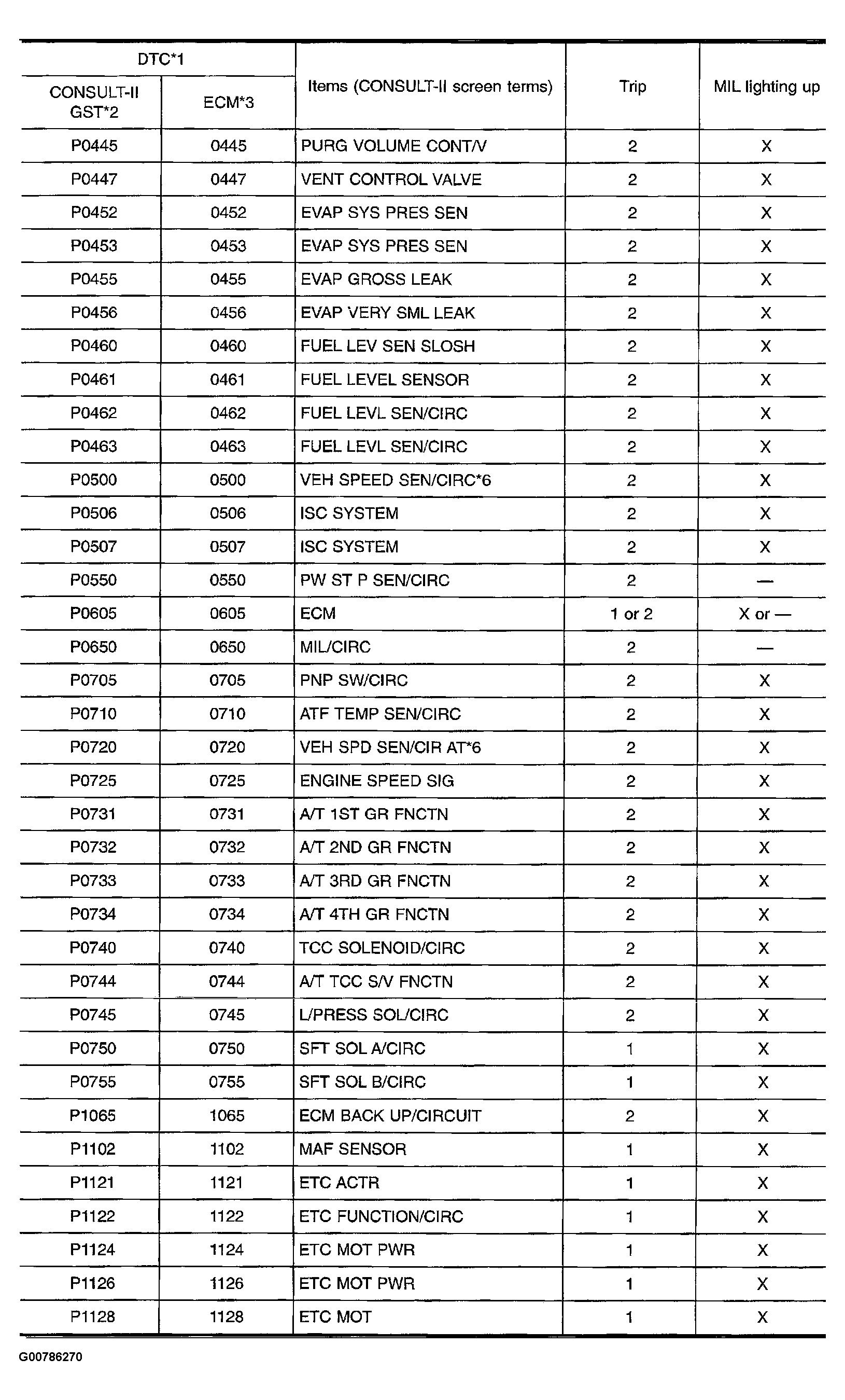

Fig 3: Engine Control System DTC No. Index (3 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.

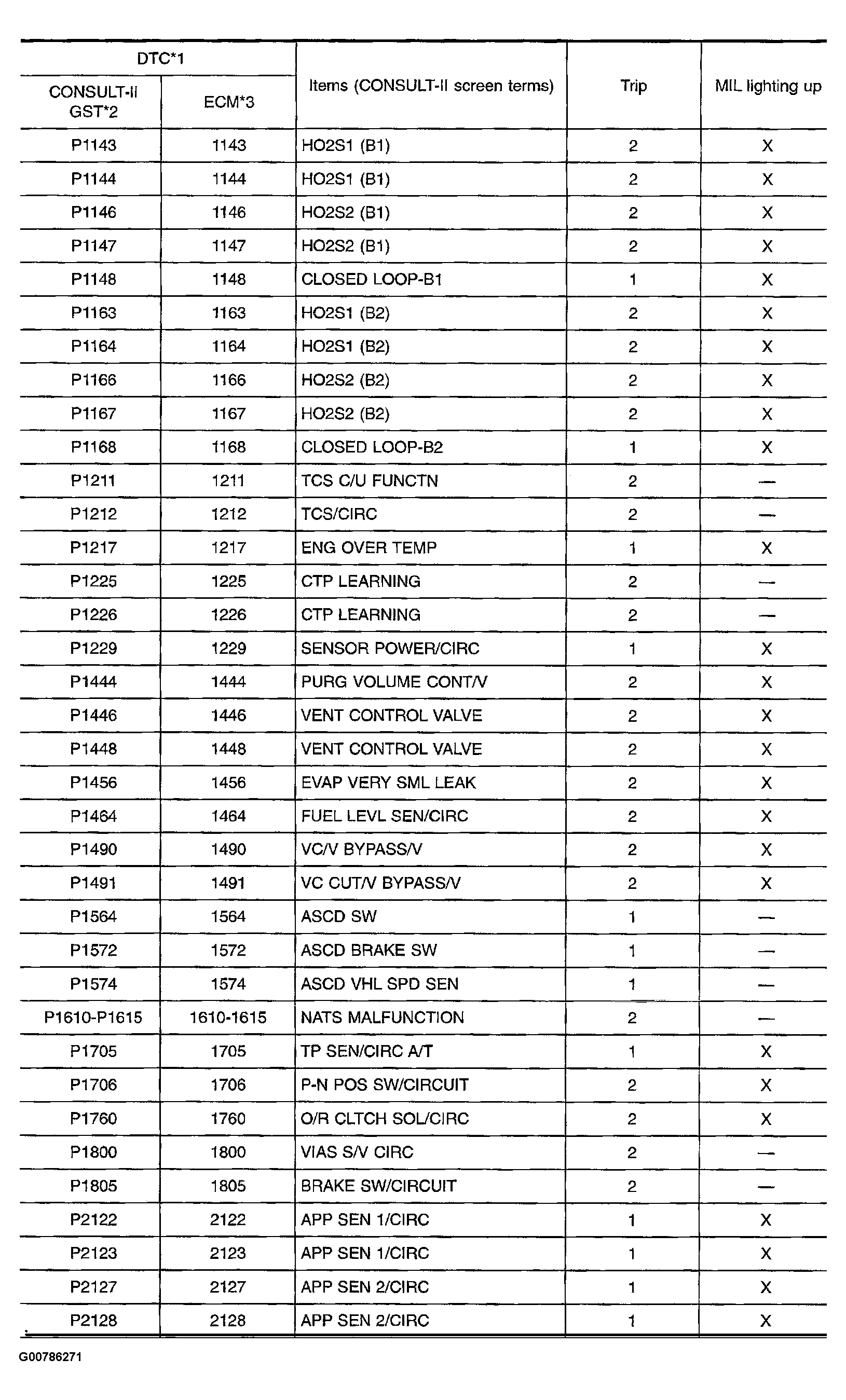

Fig 4: Engine Control System DTC No. Index (4 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.

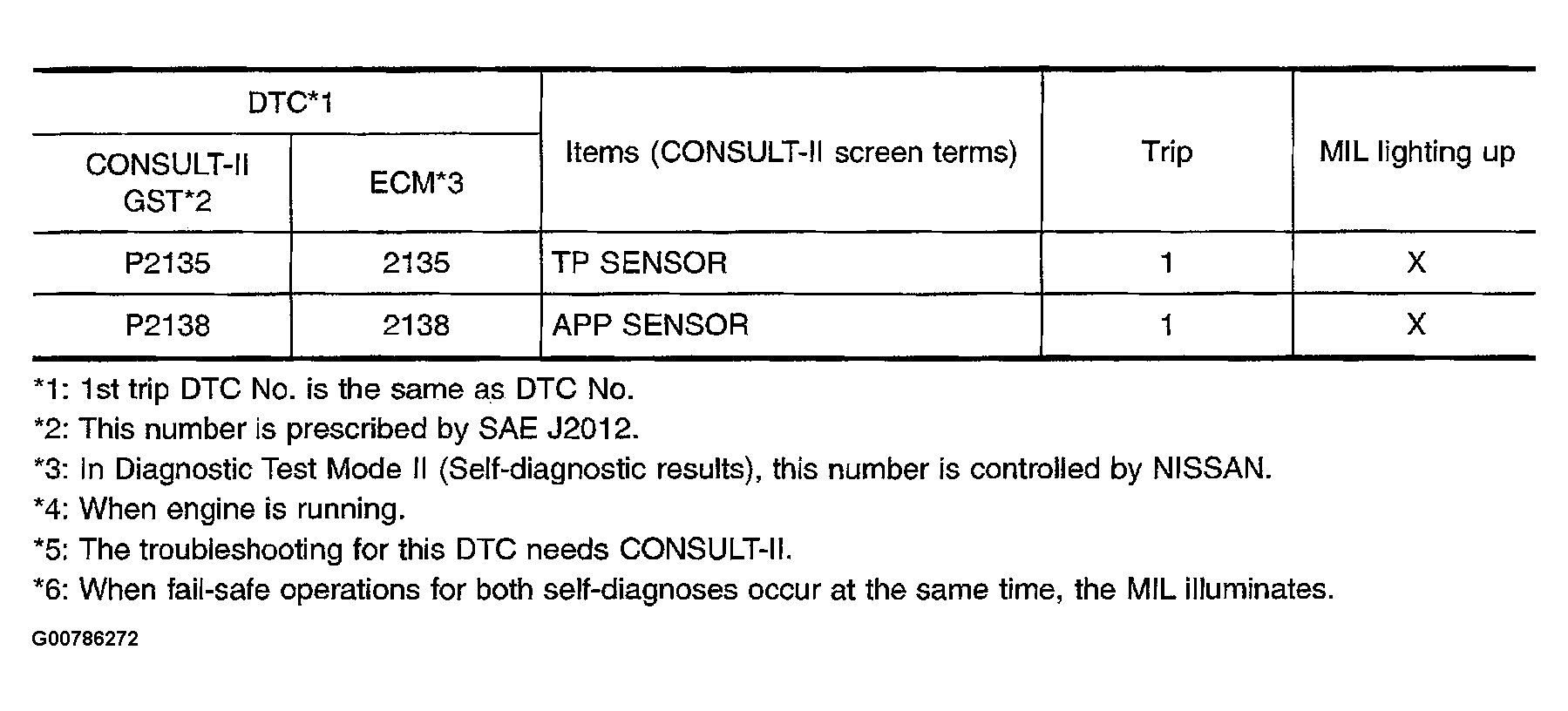

Fig 5: Engine Control System DTC No. Index (5 Of 5)
