Data Monitor Procedure

WARNING: This page is about a different car, the 2003 Infiniti I35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch OFF.
  2. Connect CONSULT-II to data link connector.
  3. Turn ignition switch ON.
  4. Touch "START" on CONSULT-II screen.

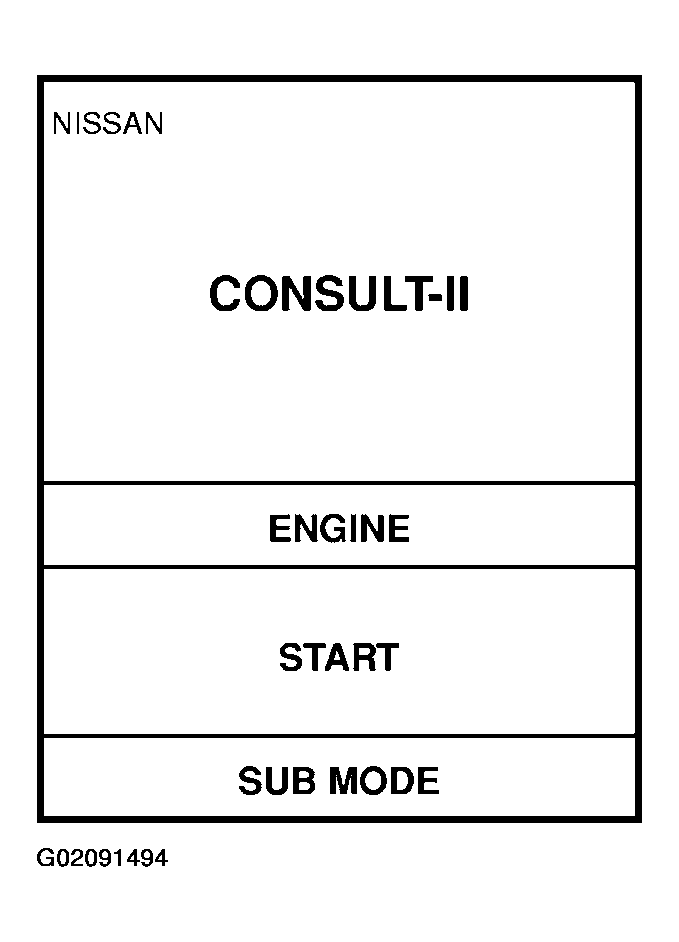

    Fig 1: Displaying CONSULT-II "START" Screen
    G02091494Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Touch "ABS".

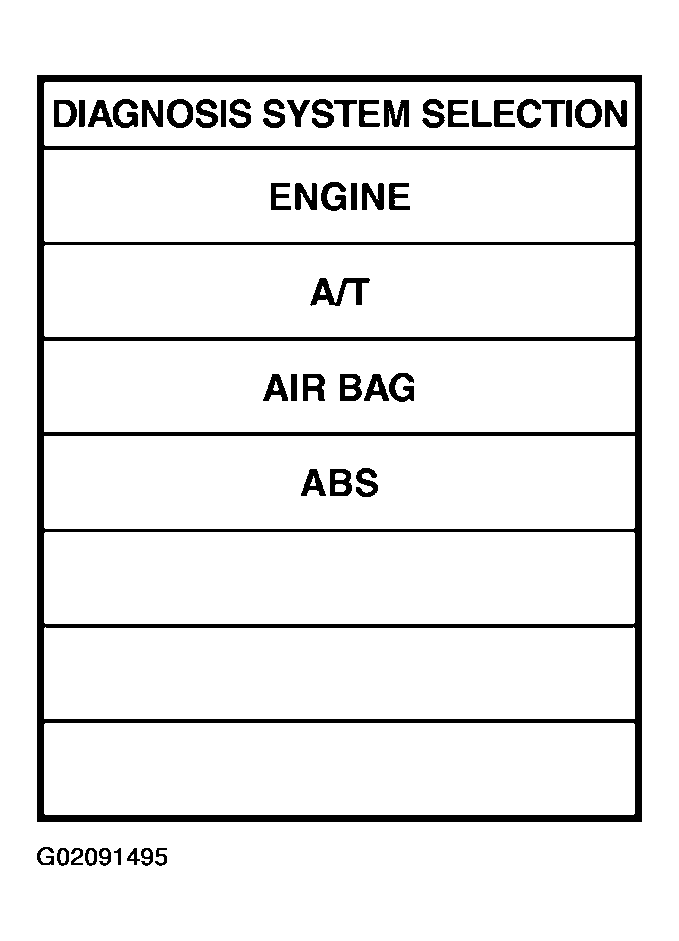

    Fig 2: Displaying "DIAGNOSIS SYSTEM SELECTION" Screen
    G02091495Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Touch "DATA MONITOR".
  7. Touch "SETTING" on "SELECT MONITOR ITEM" screen.
  8. Touch "START" on "SELECT MONITOR ITEM".
