Malfunction Code/Symptom Chart

WARNING: This page is about a different car, the 2003 Infiniti I35. However, it is still accessible from the selected car via links, so may be relevant.

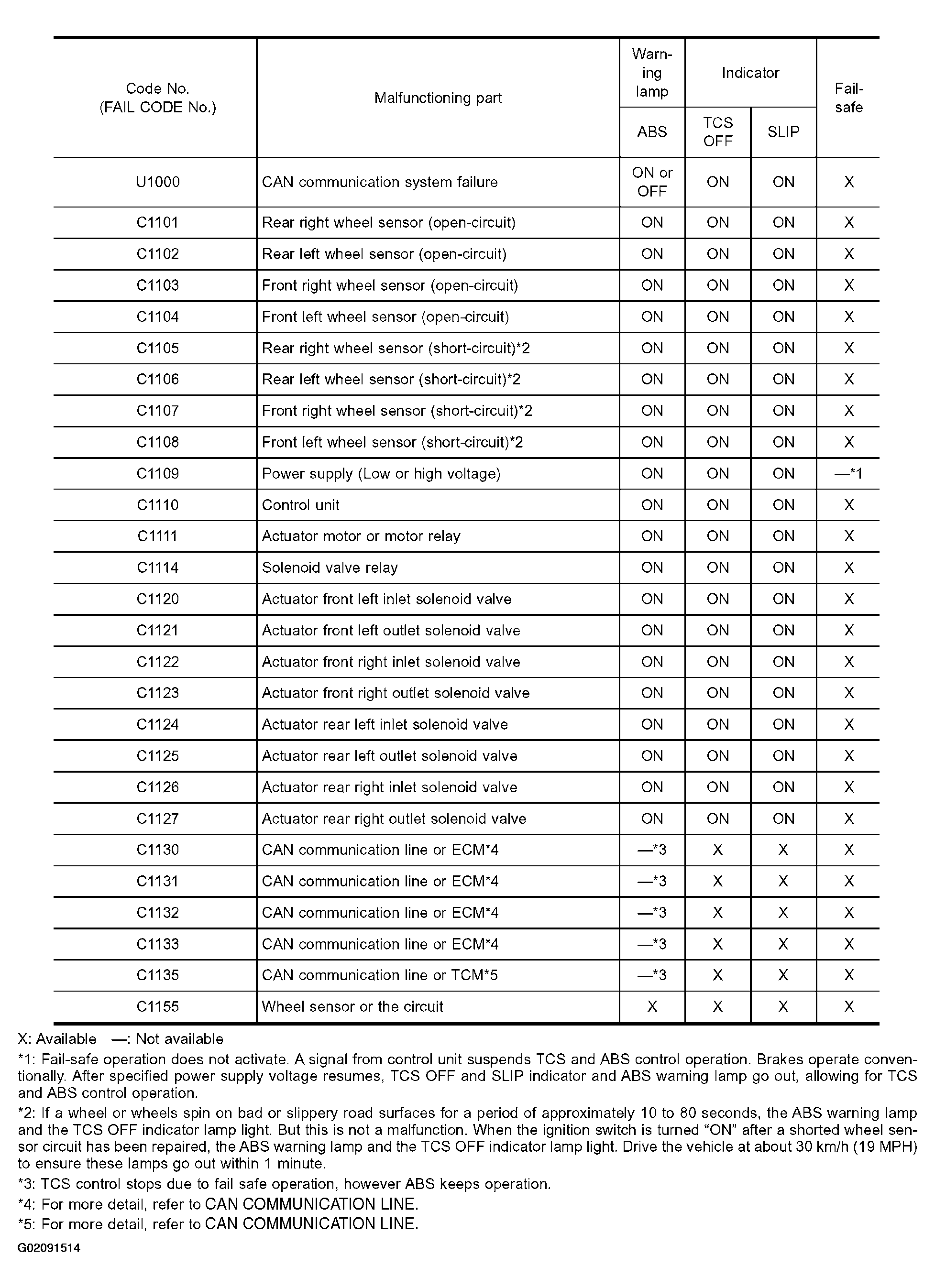

Fig 1: Identifying Malfunction Code/Symptom Conditions

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: When a system part have electric malfunction, ABS warning lamp is illuminated by fail-safe function. According to malfunctioning condition, both ABS and EBD system become in following conditions.

ABS is not operated. EBD is operated.
Both ABS and EBD are operated. (Same condition as the vehicle without ABS and EBD)
On the condition 1), some sound for ABS system self-diagnosis can be heard same as usual, when key switch is turned ON or first starting.
