Work Flow

WARNING: This page is about a different car, the 2003 Infiniti I35. However, it is still accessible from the selected car via links, so may be relevant.

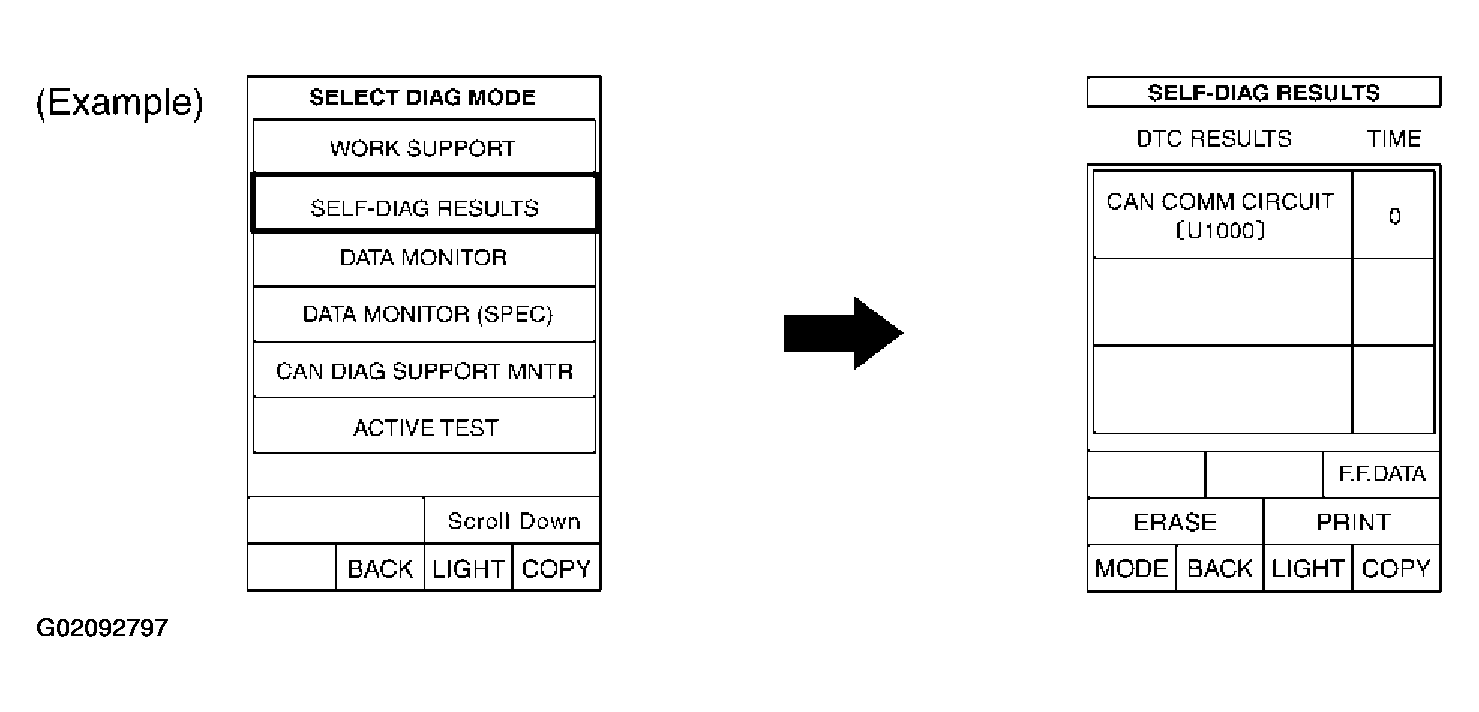

Print all the data of "SELF-DIAG RESULTS" for "ENGINE", "ABS" and "A/T" displayed on CONSULT-II.

Fig 1: Self-Diag Results For Engine, ABS And A/T CONSULT-II Display For TCS Models
Courtesy of NISSAN MOTOR CO., U.S.A.

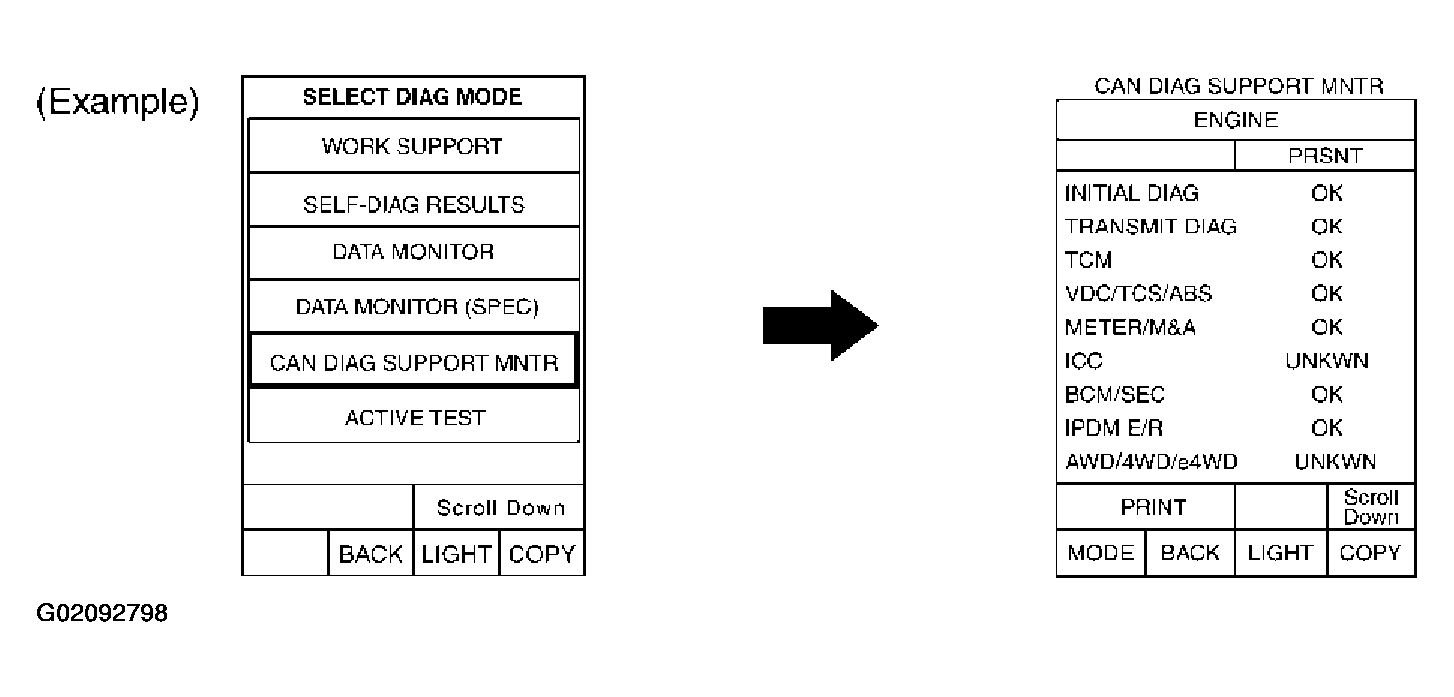

Print all the data of "CAN DIAG SUPPORT MNTR" for "ENGINE", "ABS" and "A/T" displayed on CONSULT-II.

Fig 2: CAN Diag Support Mntr For Engine, ABS And A/T CONSULT-II Display For TCS Models
Courtesy of NISSAN MOTOR CO., U.S.A.
Attach the printed sheet of "SELF-DIAG RESULTS" and "CAN DIAG SUPPORT MNTR" onto the check sheet. Refer to "CHECK SHEET " .
Based on the "CAN DIAG SUPPORT MNTR" results, put "v" marks onto the items with "UNKWN" or "NG" in the check sheet table. Refer to "CHECK SHEET " .
NOTE: If "NG" is displayed on "INITIAL DIAG (Initial diagnosis)" as "CAN DIAG SUPPORT MNTR" for the diagnosed control unit, replace the control unit.
According to the check sheet results (example), start inspection. Refer to "CHECK SHEET RESULTS (EXAMPLE) " .
