Electrical Component Locator: Grounds
GROUNDS LOCATION

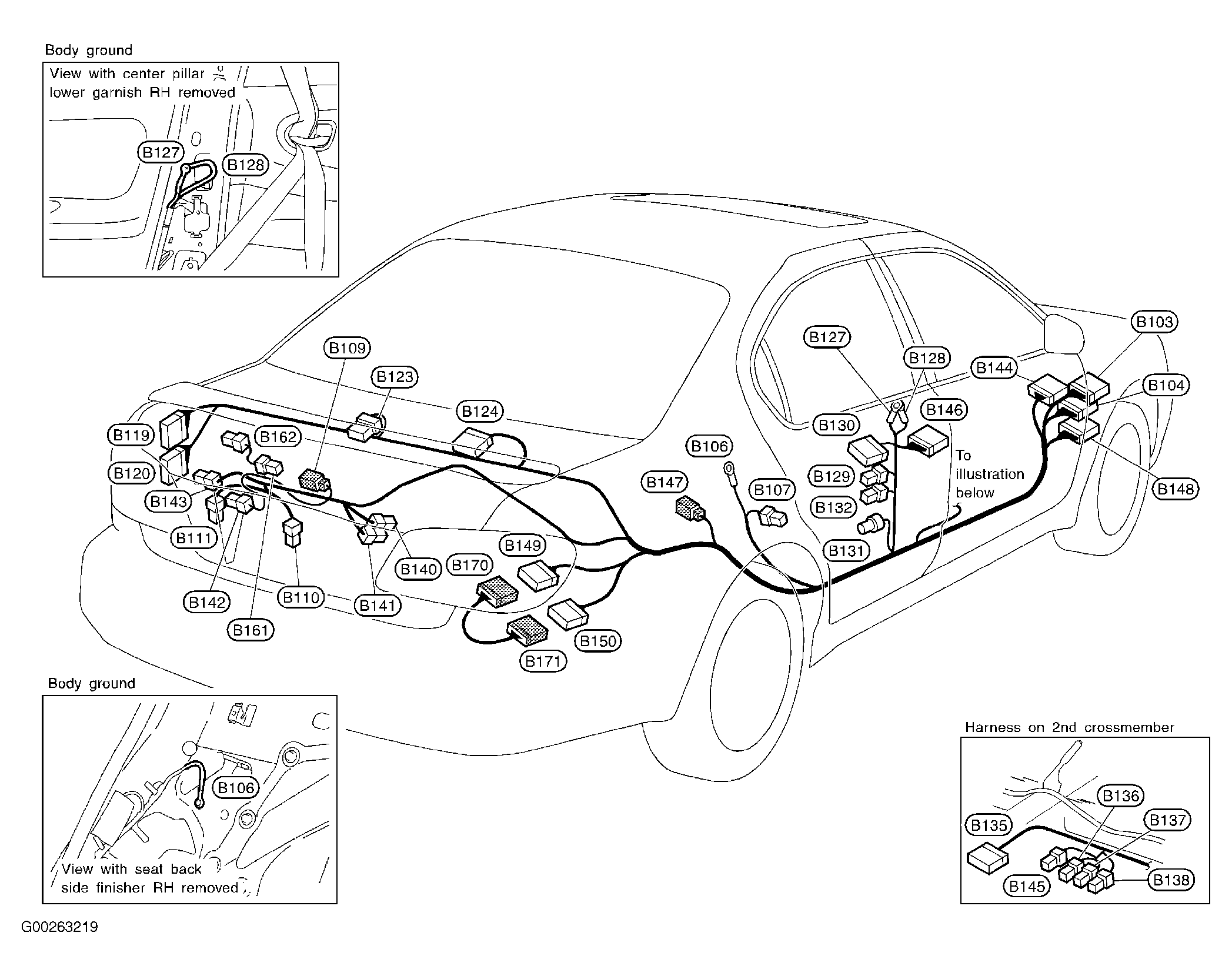

| Component | Location |
|---|---|
| B7 | Behind lower left "B" pillar trim. See Figure . |
| B13 | Under left rear seat trim panel. See Figure . |
| B30 | Behind lower left "B" pillar trim. See Figure . |
| B44 | Behind lower left "B" pillar trim. See Figure . |
| B46 | Under left rear seat trim panel. See Figure . |
| B62 | Under right "C" pillar trim. See Figure . |
| B78 | Behind lower left "B" pillar trim. See Figure . |
| B106 | Under right rear seat trim panel. See Figure . |
| B127 | Under lower right "B" pillar trim. See Figure . |
| B128 | Under lower right "B" pillar trim. See Figure . |
| E11 | Under fuse & fusible link box. See Figure . |
| E22 | At left front of engine compartment. See Figure . |
| E48 | Near alternator. See Figure . |
| E53 | Near alternator. See Figure . |
| E111 | Near alternator. See Figure . |
| E149 | Lower front center of radiator. See Figure . |
| F39 | At front of left cylinder head. See Figure . |
| F40 | At front of left cylinder head. See Figure . |
| F41 | At front of left cylinder head. See Figure . |
| F42 | At front of left cylinder head. See Figure . |
| M9 | Under left "A" pillar trim. See Figure . |
| M25 | Behind left side of dash. See Figure . |
| M87 | At base of right "A" pillar. See Figure . |

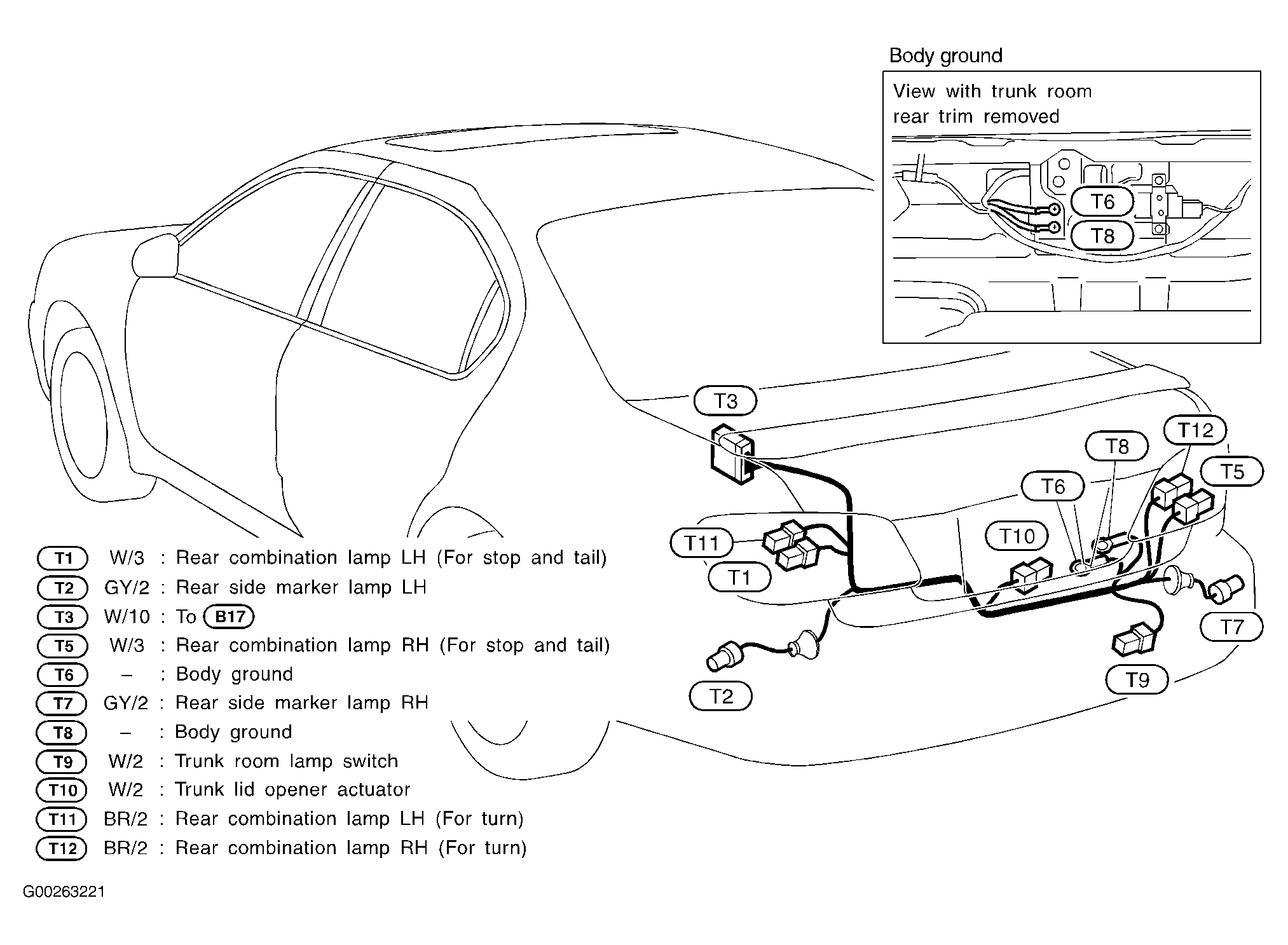

| T6 | Under trim panel, at rear center of luggage compartment. See Figure . |
| T8 | Under trim panel, at rear center of luggage compartment. See Figure . |
