Detention Switch

For Key:

Check continuity between terminals of the A/T device harness connector terminals.

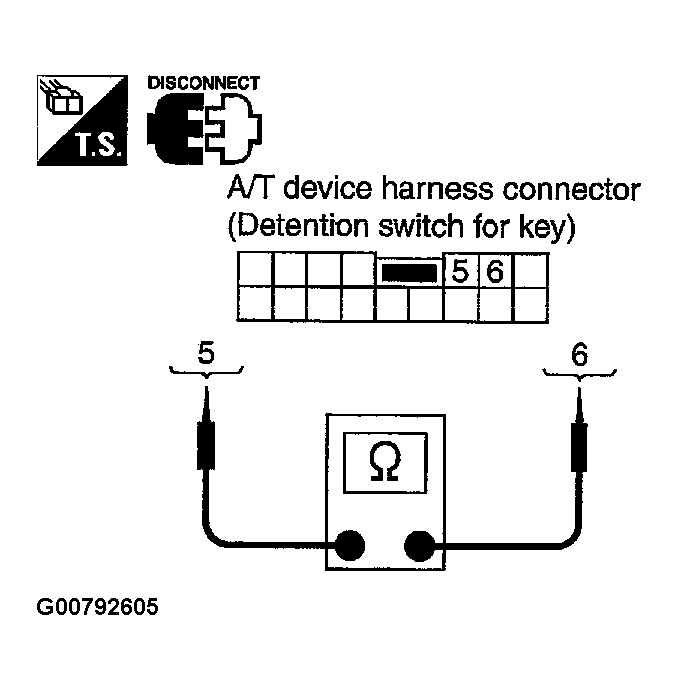

Fig 1: Checking Continuity Of Detention Switch For Key (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

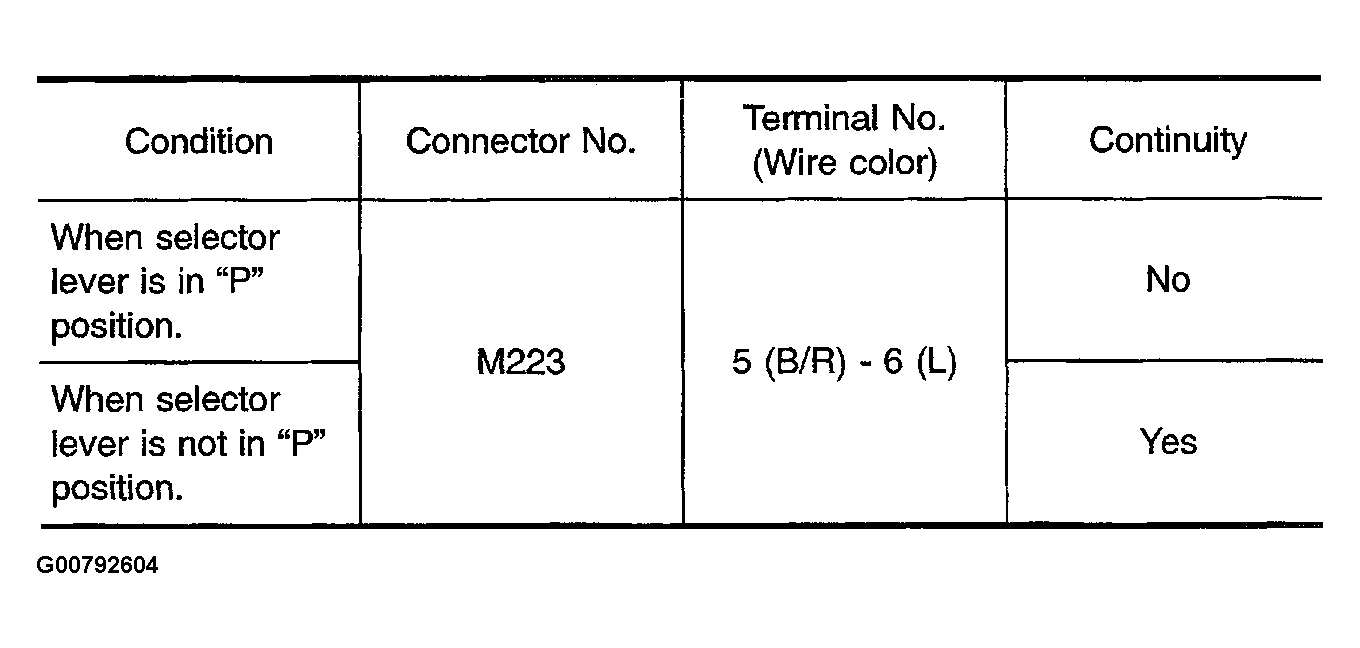

Fig 2: Checking Continuity Of Detention Switch For Key (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

For shift:

• Check continuity between terminals of the A/T device harness connector terminals.
  Fig 3: Checking Continuity Of Detention Switch For Shift (1 Of 2)

  Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: Checking Continuity Of Detention Switch For Shift(2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
