Key Lock Solenoid

Key Lock

• Check operation by applying battery voltage to key switch and key lock solenoid connector.
  CAUTION: Be careful not to cause burnout of the harness.

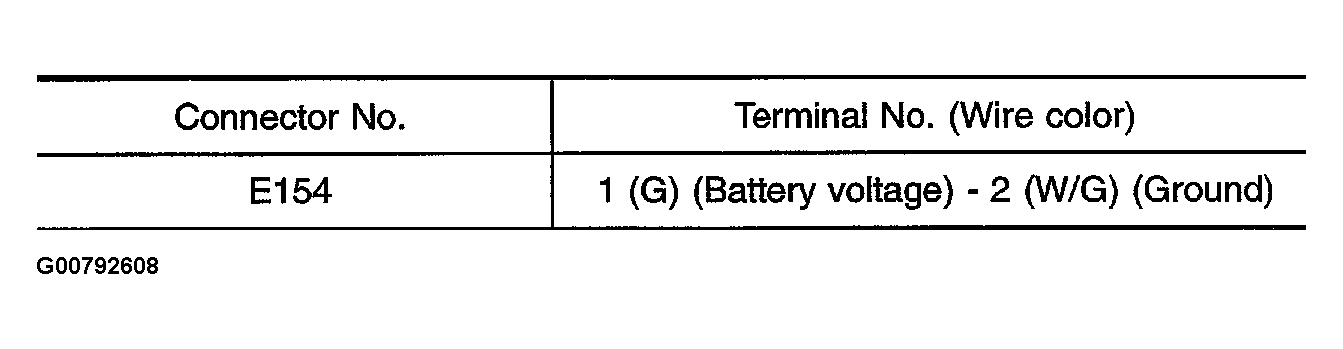

  Fig 1: Checking Operation By Applying Battery Voltage To Key Switch And Key Lock Solenoid Connector (1 Of 2)

  Courtesy of NISSAN MOTOR CO., U.S.A.

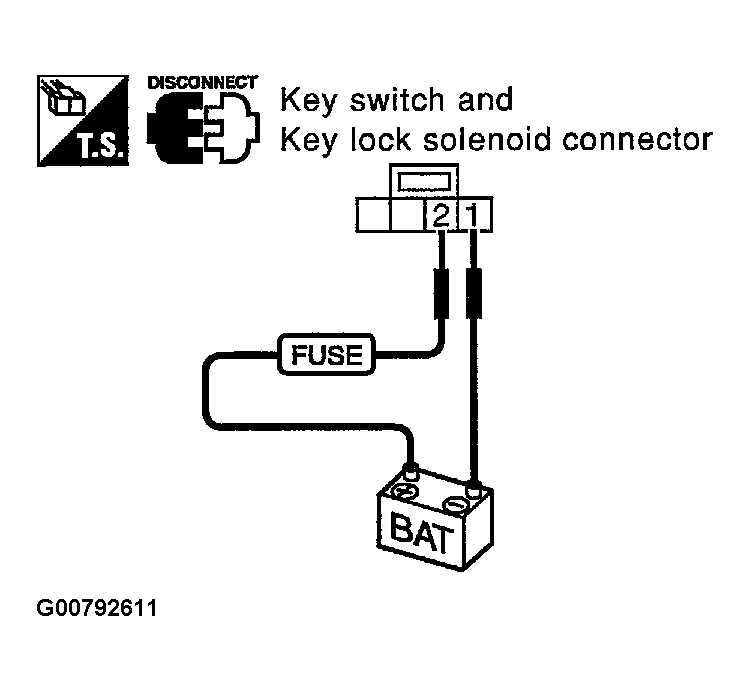

  Fig 2: Checking Operation By Applying Battery Voltage To Key Switch And Key Lock Solenoid Connector (2 Of 2)

  Courtesy of NISSAN MOTOR CO., U.S.A.

  Key Unlock

• Check operation by applying battery voltage to key switch and key lock solenoid connector.

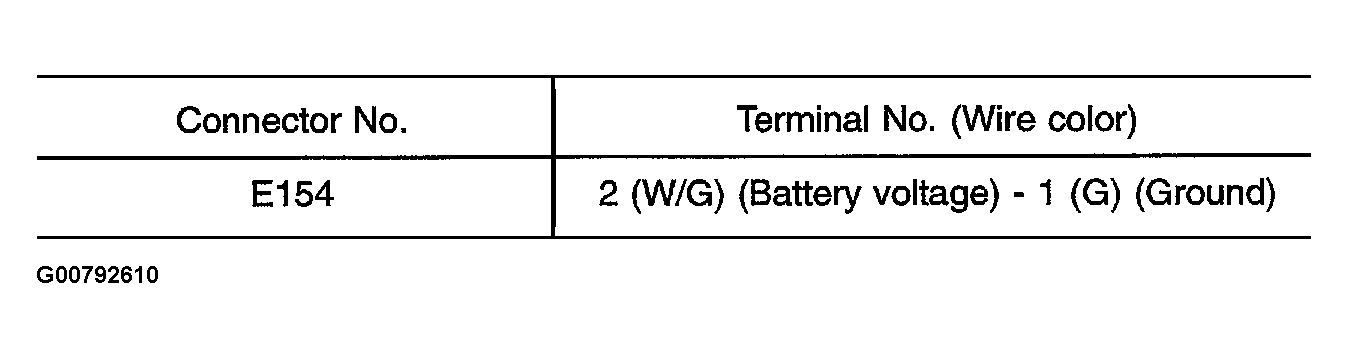

Fig 3: Checking Operation By Applying Battery Voltage To Key Switch And Key Lock Solenoid Connector (Key Unlock)(1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: Checking Operation By Applying Battery Voltage To Key Switch And Key Lock Solenoid Connector (Key Unlock) (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
