Shift Lock Solenoid

Check operation by applying battery voltage to the A/T device harness connector terminal.
CAUTION: Be sure to apply the voltage of the correct polarity to the respective terminals. Otherwise, the part may be damaged.

Fig 1: Checking Shift Lock Solenoid Operation By Applying Battery Voltage To The A/T Device Harness Connector Terminal (1 of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

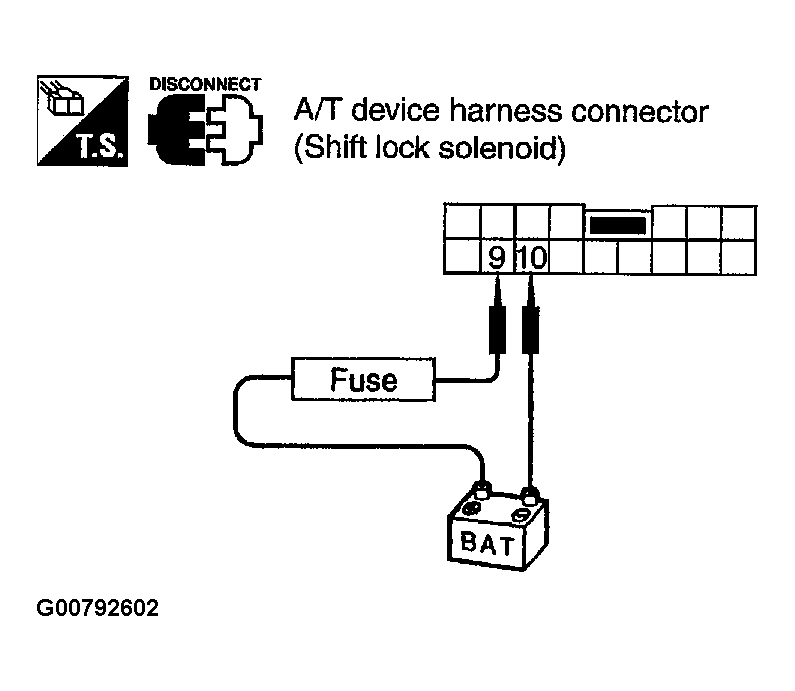

Fig 2: Checking Shift Lock Solenoid Operation By Applying Battery Voltage To The A/T Device Harness Connector Terminal (2 of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
