Stop Lamp Switch

Check continuity between terminals of the stop lamp switch connector.

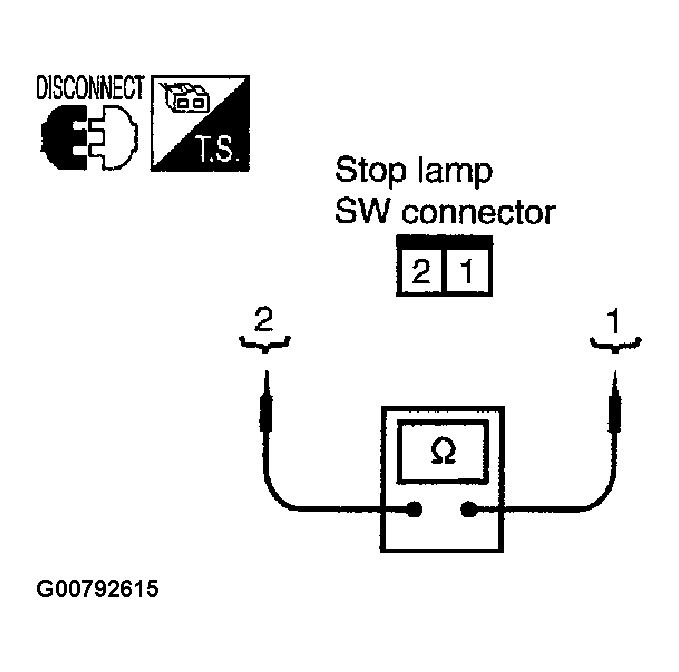

Fig 1: Checking Continuity Between Terminals Of The Stop Lamp Switch Connector ( 1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

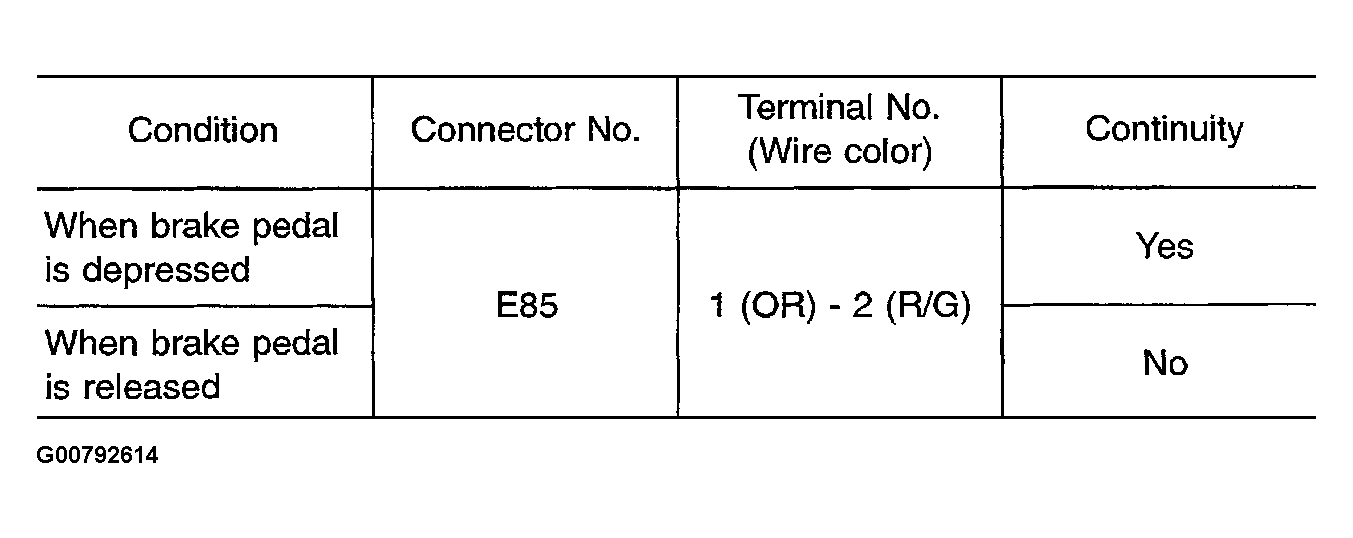

Fig 2: Checking Continuity Between Terminals Of The Stop Lamp Switch Connector ( 2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

Check stop lamp switch after adjusting brake pedal. Refer to .
