Diagnostic Trouble Code (DTC) Confirmation Procedure: Notes

NOTE: If "DTC Confirmation Procedure" has been previously conducted, always turn ignition switch "OFF" and wait at least 10 seconds before conducting the next test.

WITH CONSULT-II

Turn ignition switch "ON" and select "DATA MONITOR" mode for A/T with CONSULT-II.
Start engine.
Run engine for at least 2 seconds at idle speed.

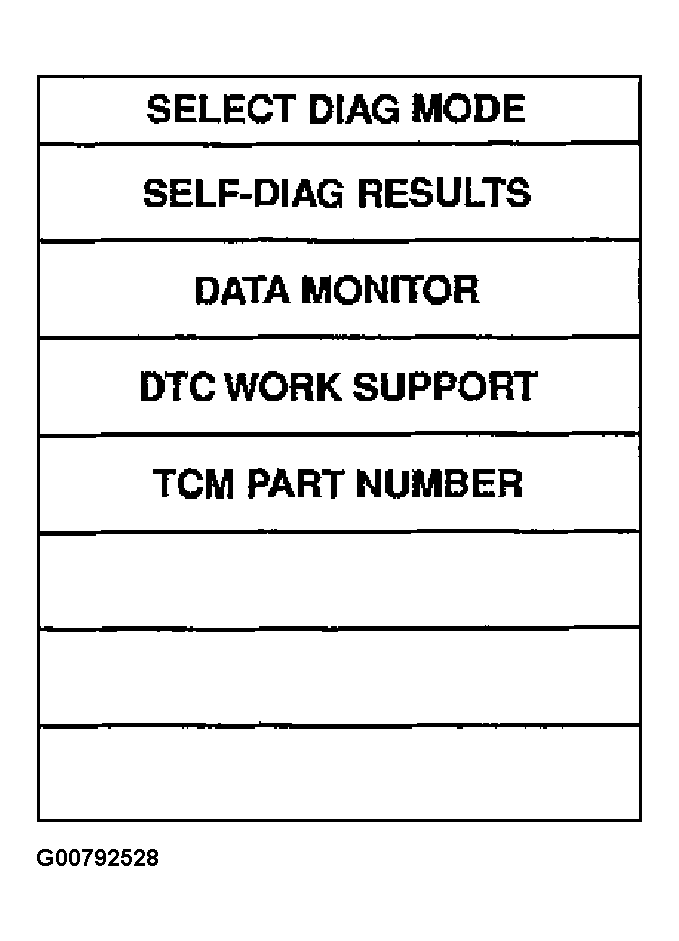

Fig 1: identifying data monitor display

Courtesy of NISSAN MOTOR CO., U.S.A.
