DTC P0734: A/T 4TH Gear Function
>>
Description
>>
Consult-II Reference Value In Data Monitor Mode
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Consult-II Reference Value In Data Monitor Mode
Remarks: Specification data are reference values.

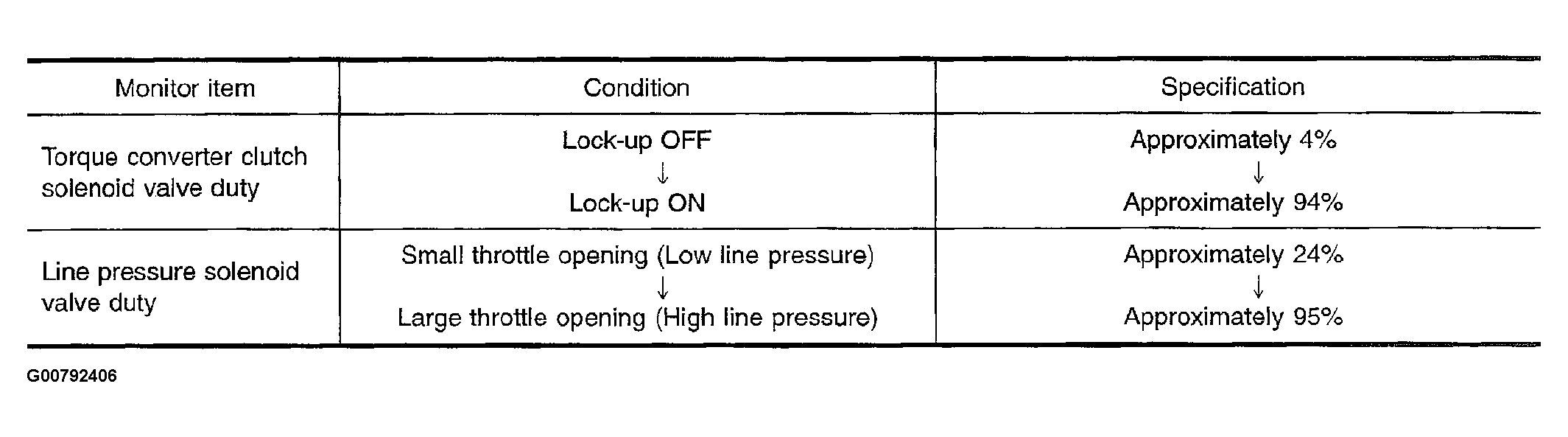

Fig 1: Identifying Consult-II Reference Value In Data Monitor Mode
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
