Power Train Revolution Sensor
Check resistance between terminals 1 (R/Y), 2 (PU) and 3 (B).

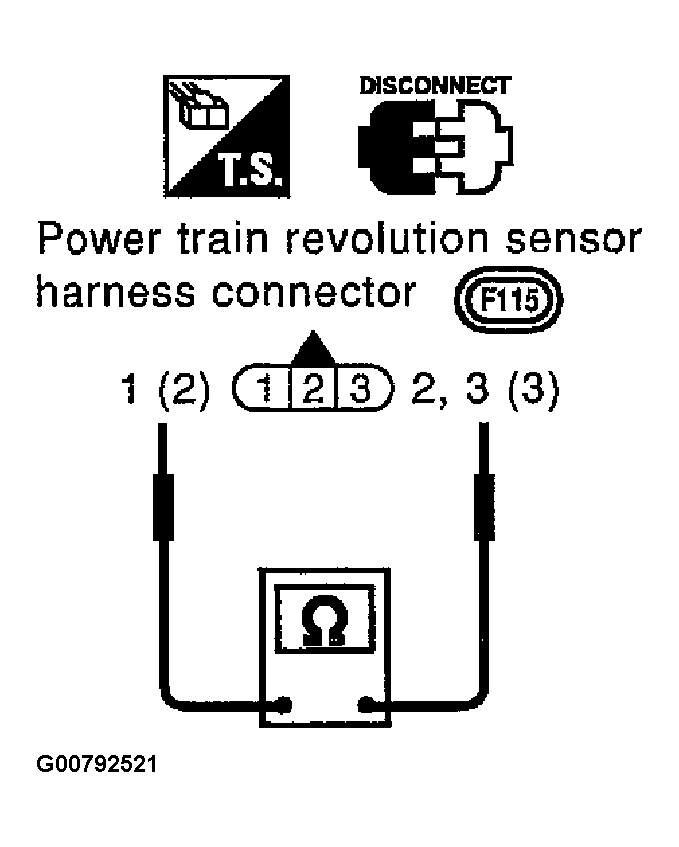

Fig 1: Checking resistance between terminals 1 (R/Y), 2 (PU) and 3 (B) (1 of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

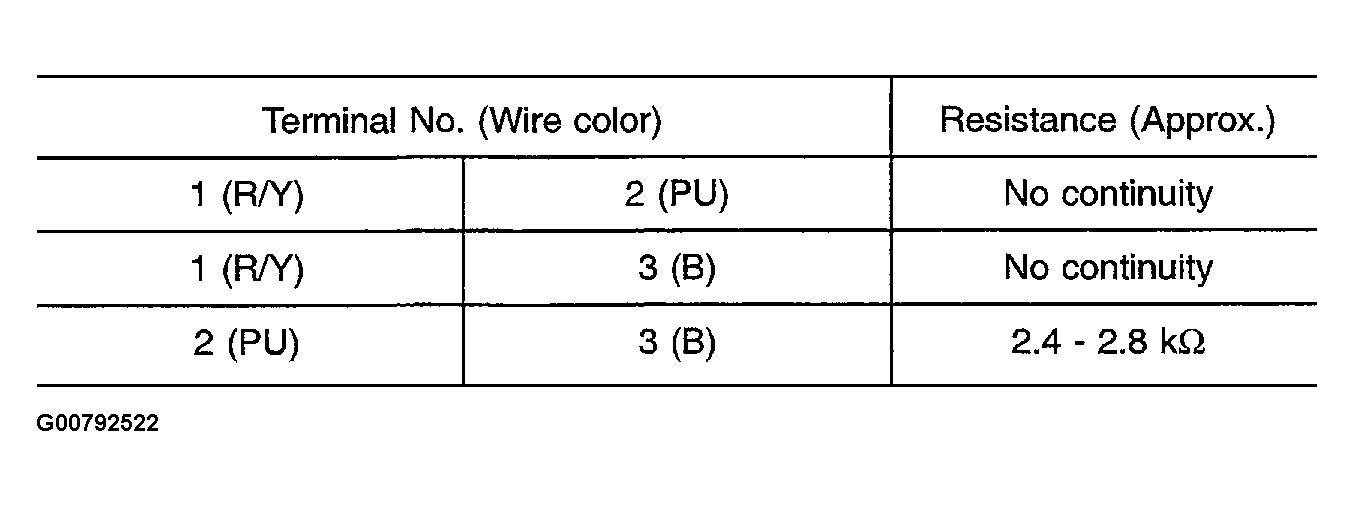

Fig 2: Check resistance between terminals 1 (R/Y), 2 (PU) and 3 (B) (2 of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
