1 Check Input Signal

With CONSULT-II

1. Start engine.
2. Select "TCM INPUT SIGNALS" in "DATA MONITOR" mode for "A/T" with CONSULT-II.
3. Read out the value of "VHCL/S SE.MTR" while driving.

   Check the value changes according to driving speed.

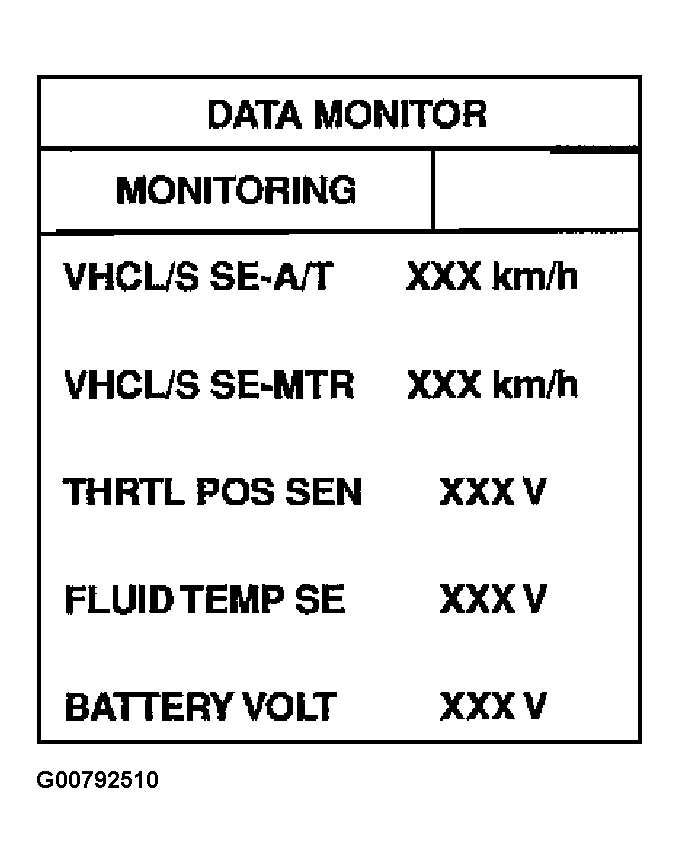

Fig 1: Checking Input Signal With Consult II

Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II

1. Start engine.
2. Check voltage between TCM harness connector F50 terminal 40 (PU/R) and ground while driving at 2 to 3 km/h (1 to 2 MPH) for 1 m (3 ft) or more.

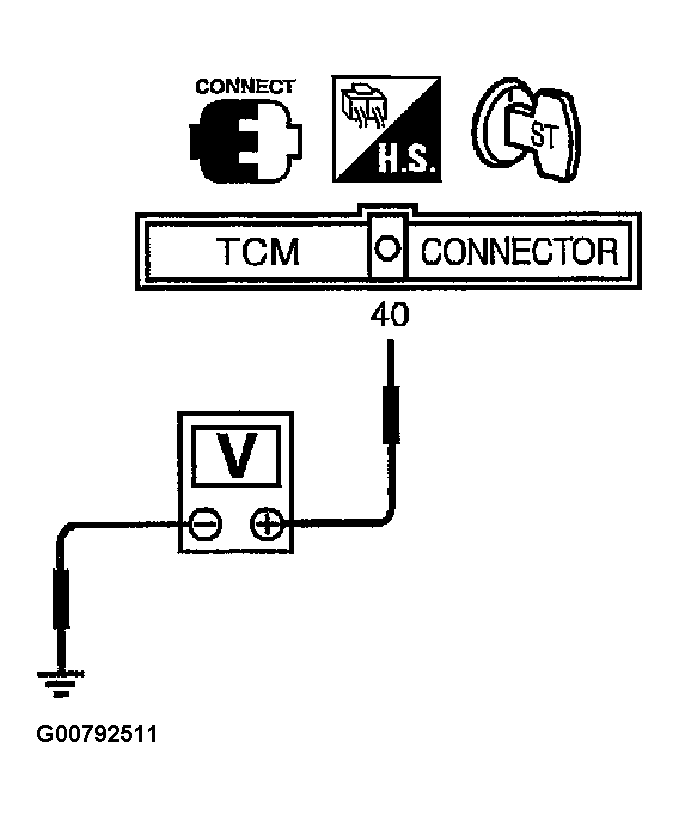

   Fig 2: Checking Input Signal Without Consult II

   Courtesy of NISSAN MOTOR CO., U.S.A.
   1. Voltage:Intermittently changes between approx. 0V and approx. 4.5V.

OK or NG

OK: GO TO 3.

NG: GO TO 2.
