DTC Work Support Mode With Consult-II

CONSULT-II Setting Procedure

1. Turn ignition switch OFF.
2. Connect CONSULT-II and CONSULT-II CONVERTER to Data link connector, which is located in left side dash panel.

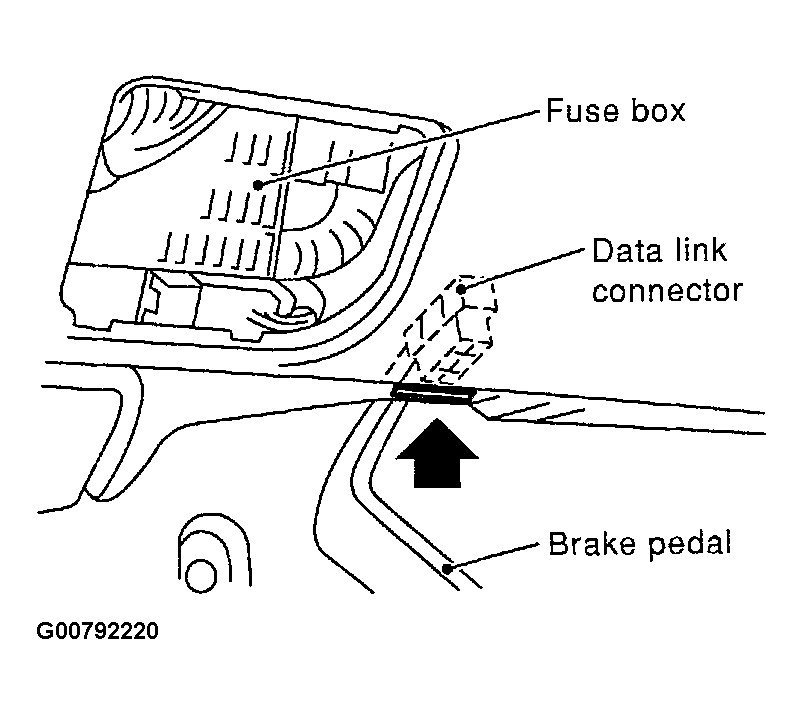

   Fig 1: Locating Data Link Connector In Left Side Dash Panel

   Courtesy of NISSAN MOTOR CO., U.S.A.
3. Turn ignition switch ON.
4. Touch "START".

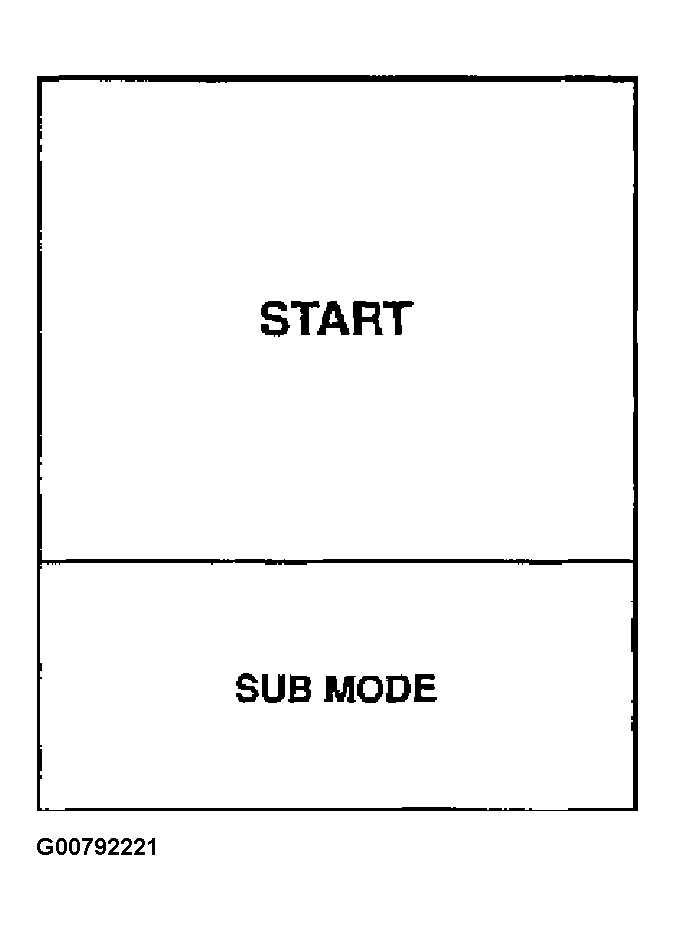

   Fig 2: CONSULT-II START Display

   Courtesy of NISSAN MOTOR CO., U.S.A.
5. Touch "A/T". If "A/T" is not indicated, go to CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT .

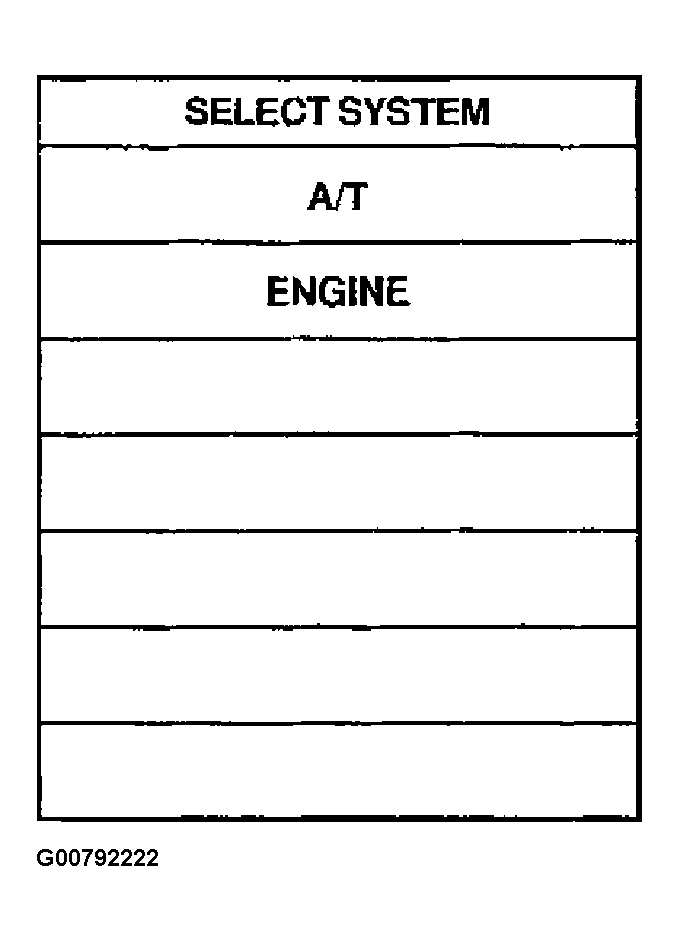

   Fig 3: Select System "A/T" On CONSULT-II

   Courtesy of NISSAN MOTOR CO., U.S.A.
6. Touch "DTC WORK SUPPORT".

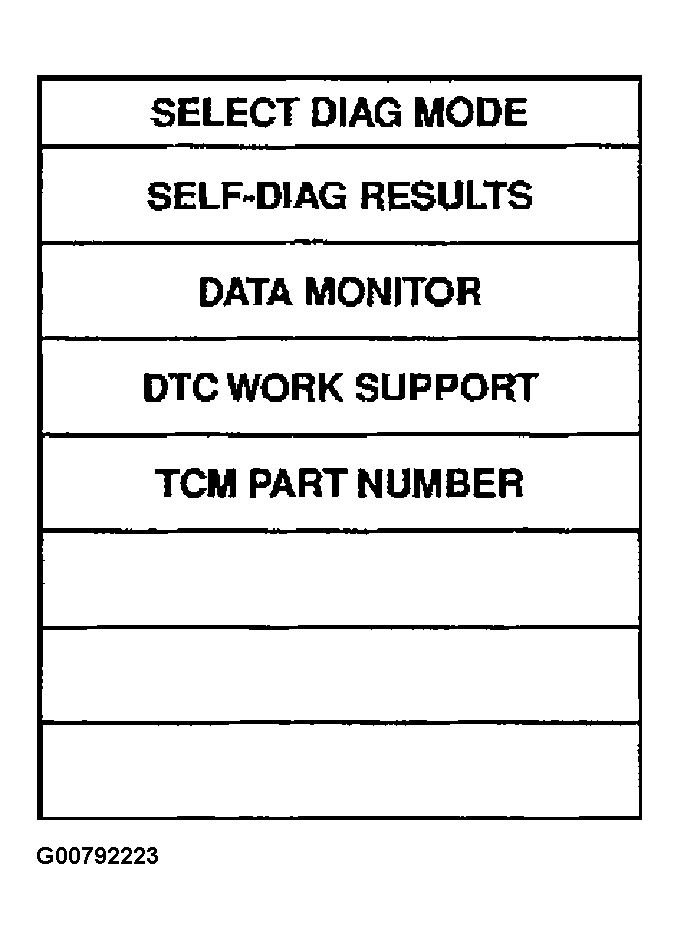

   Fig 4: DTC WORK SUPPORT Display On CONSULT-II

   Courtesy of NISSAN MOTOR CO., U.S.A.
7. Touch select item menu (1ST, 2ND, etc.).

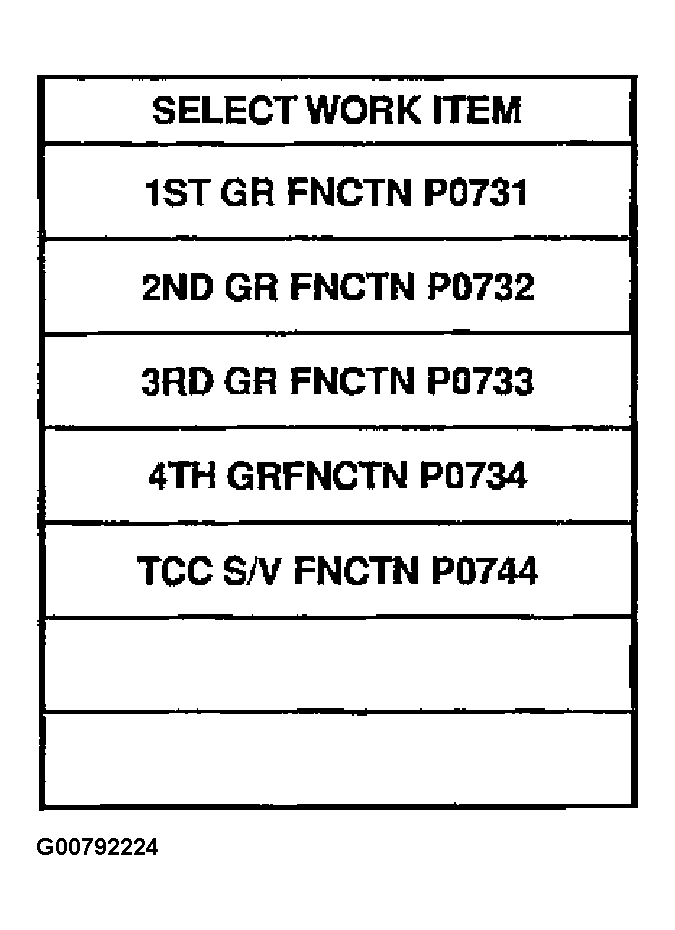

   Fig 5: Select Work Item (1st, 2nd, etc) On CONSULT-II]

   Courtesy of NISSAN MOTOR CO., U.S.A.
8. Touch "START".
   Fig 6: Touch START Display On CONSULT-II

   Courtesy of NISSAN MOTOR CO., U.S.A.

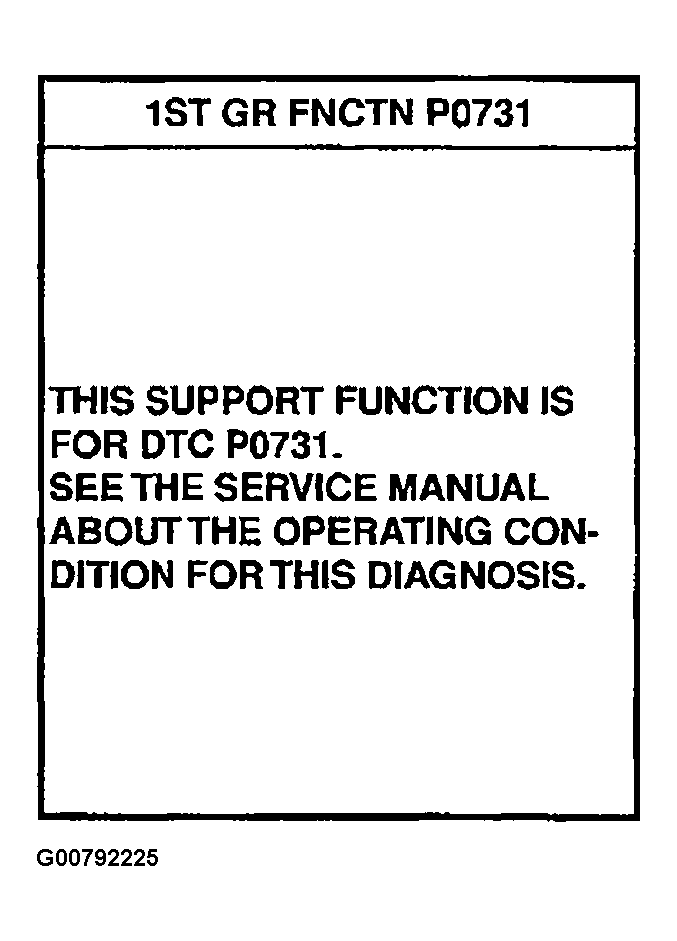

9. Perform driving test according to "DTC CONFIRMATION PROCEDURE" in "TROUBLE DIAGNOSIS FOR DTC".
   Fig 7: DTC CONFIRMATION PROCEDURE In TROUBLE DIAGNOSIS FOR DTC On CONSULT-II

   Courtesy of NISSAN MOTOR CO., U.S.A.
   • When testing conditions are satisfied, CONSULT-II screen changes from "OUT OF CONDITION" to "TESTING".

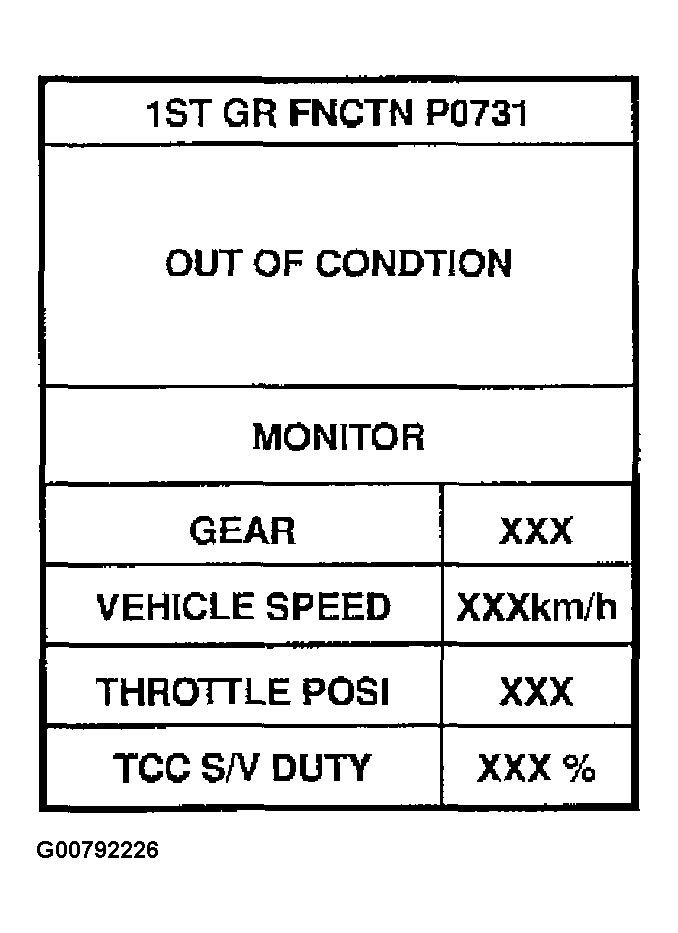

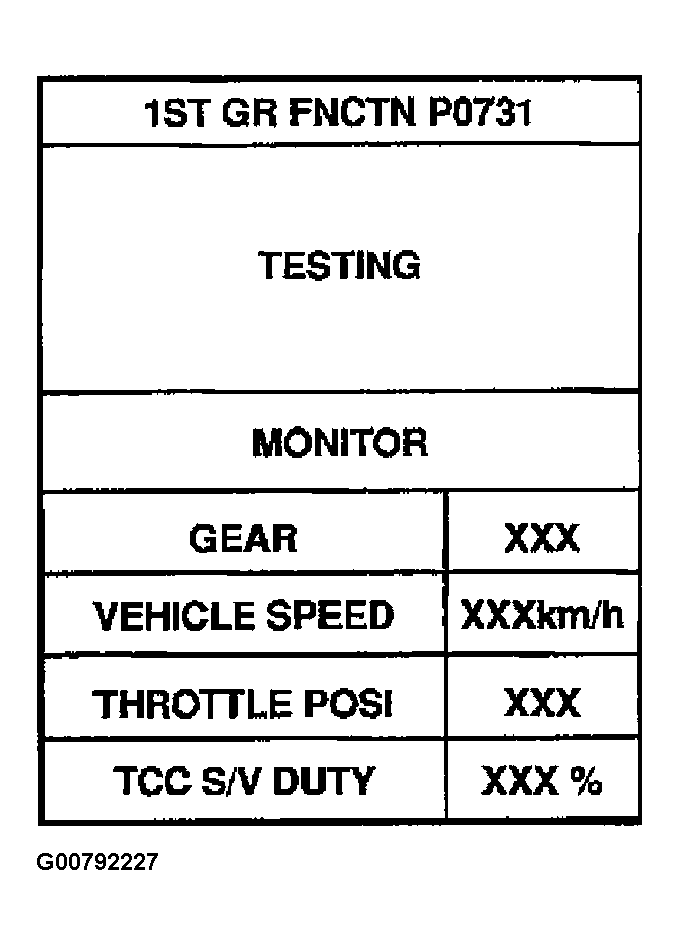

   Fig 8: OUT OF CONDITION To TESTING Display On CONSULT-II

   Courtesy of NISSAN MOTOR CO., U.S.A.

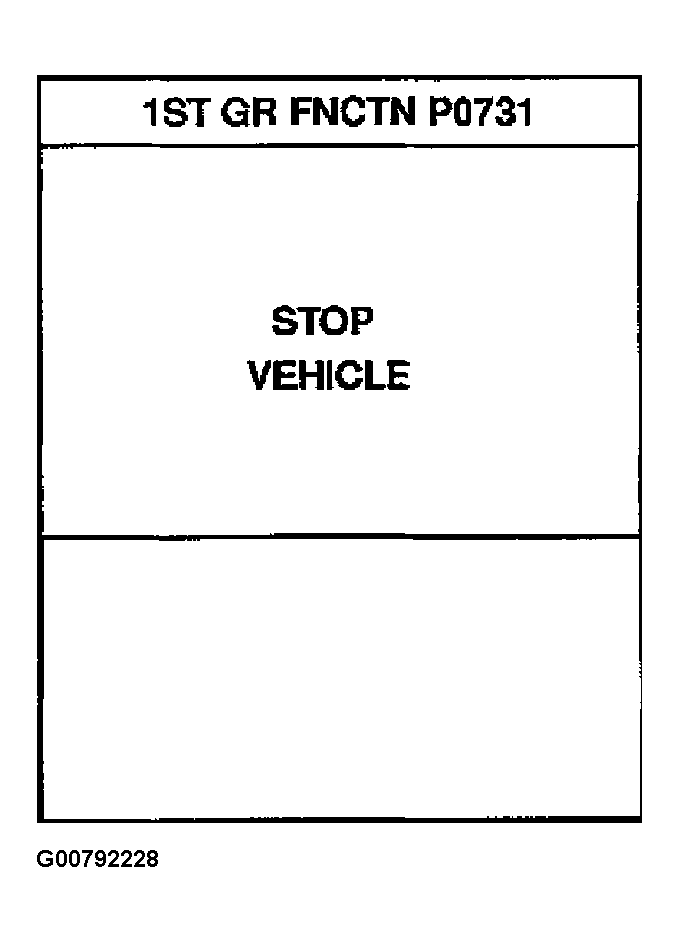

10. Stop vehicle. If "NG" appears on the screen, malfunction may exist. Go to "DIAGNOSTIC PROCEDURE".

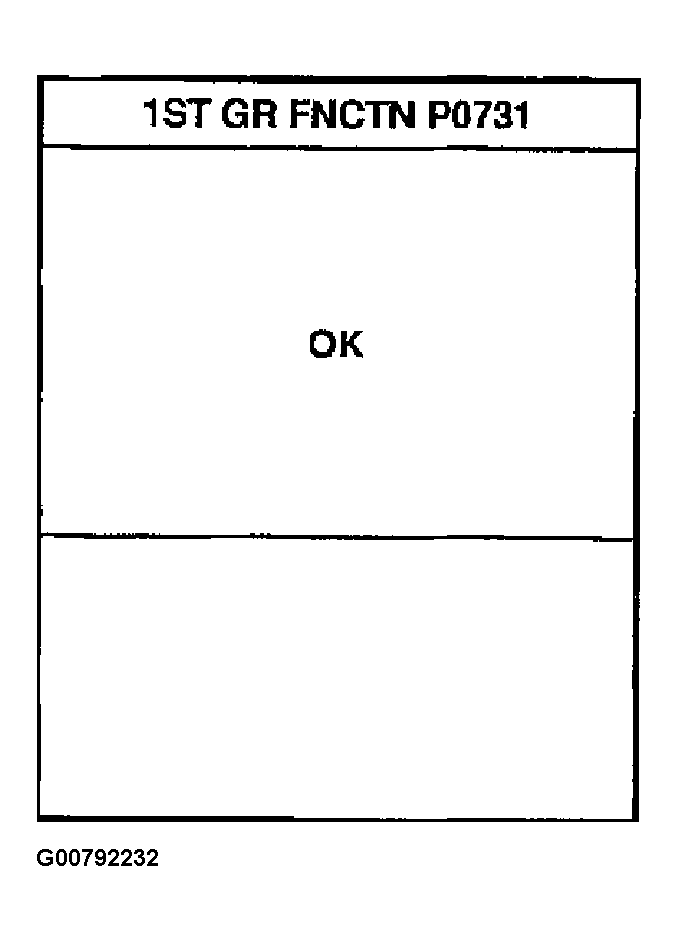

    Fig 9: CONSULT-II "OK" Display

    Courtesy of NISSAN MOTOR CO., U.S.A.

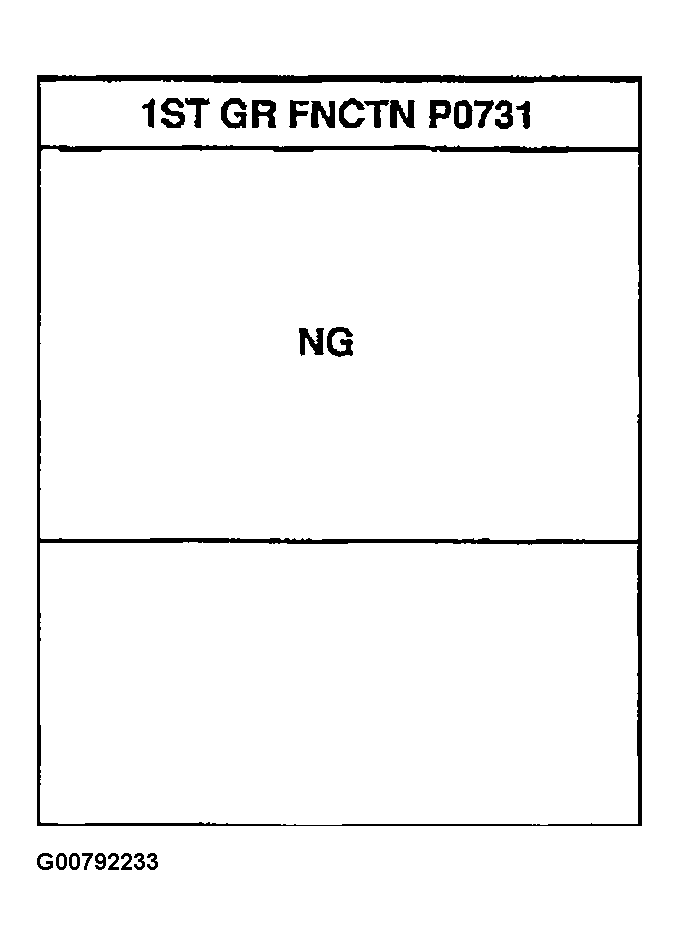

    Fig 10: CONSULT-II "NG" Display

    Courtesy of NISSAN MOTOR CO., U.S.A.
11. Perform test drive to check gear shift feeling in accordance with instructions displayed.

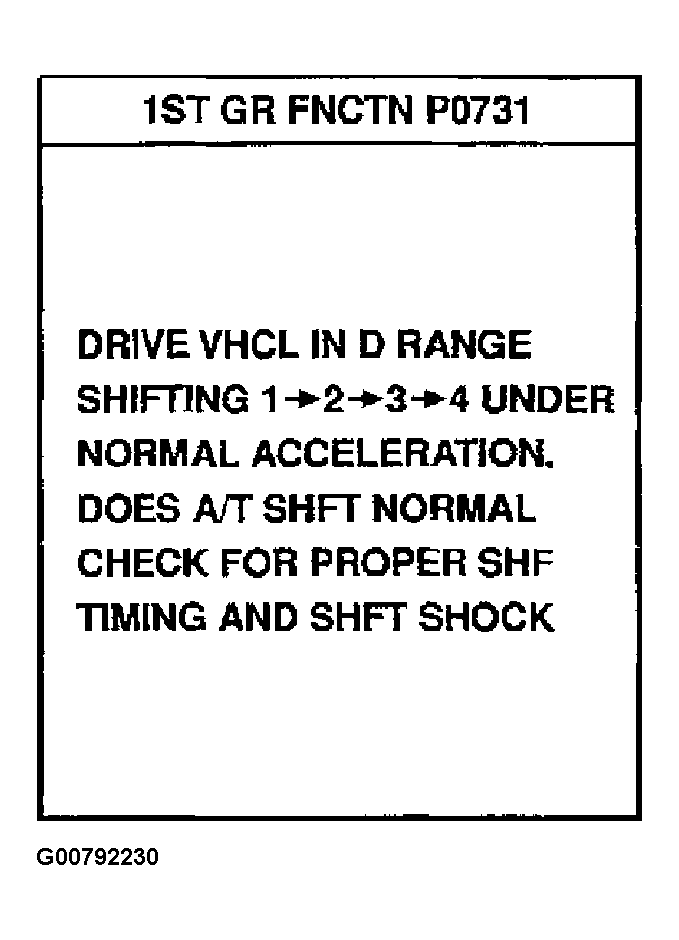

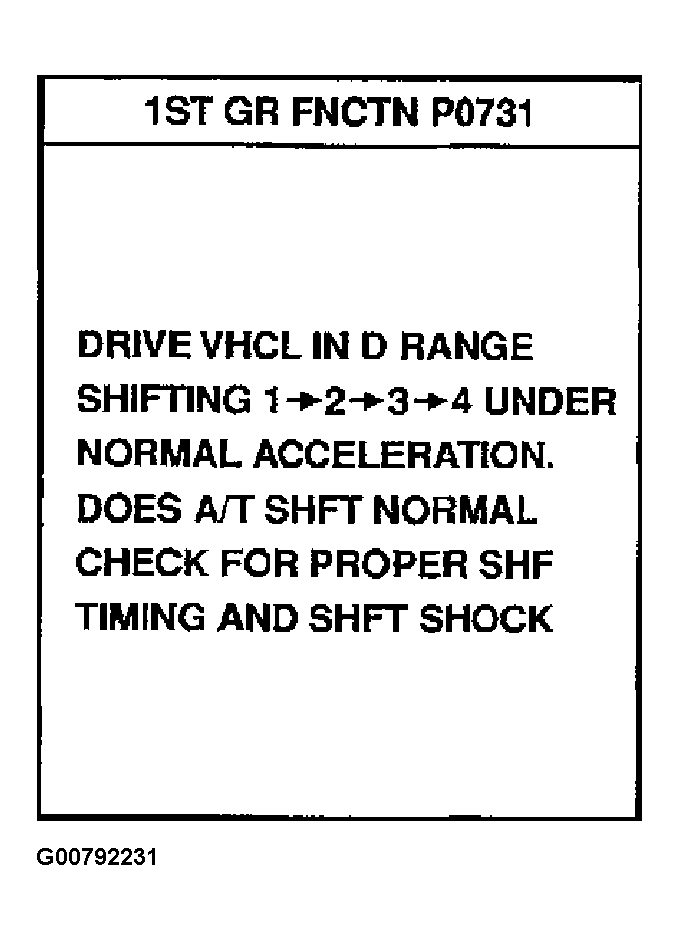

    Fig 11: CONSULT-II Instructions Display

    Courtesy of NISSAN MOTOR CO., U.S.A.
12. Touch "YES" or "NO".
    Fig 12: CONSULT-II "YES" Or "NO" Display

    Courtesy of NISSAN MOTOR CO., U.S.A.
13. CONSULT-II procedure ended.

    If "NG" appears on the screen, a malfunction may exist. Go to "DIAGNOSTIC PROCEDURE".

    Fig 13: CONSULT-II "OK" Display

    Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 14: CONSULT-II "NG" Display

Courtesy of NISSAN MOTOR CO., U.S.A.
