DTC Work Support Mode

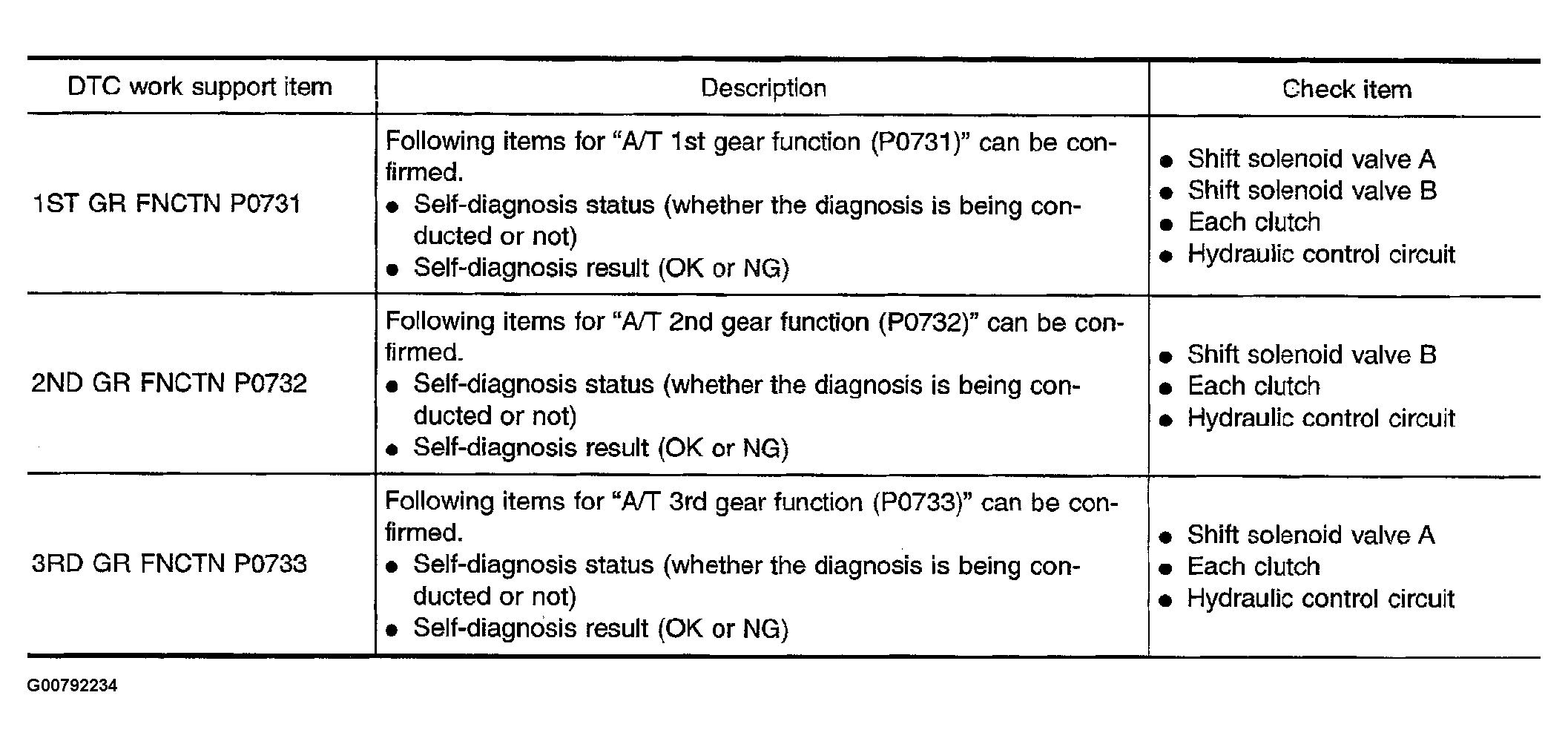

Fig 1: DTC Work Support Mode Item Description Chart (1 Of 2)
G00792234Courtesy of NISSAN MOTOR CO., U.S.A.

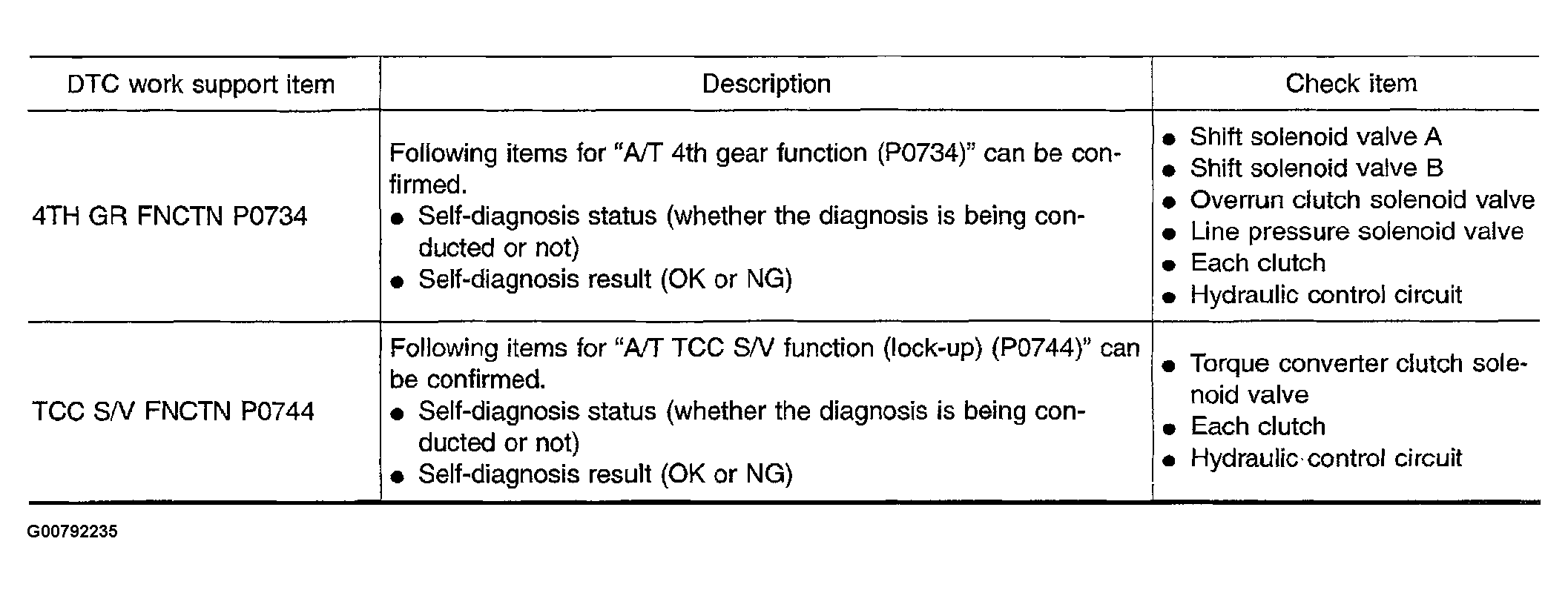

Fig 2: DTC Work Support Mode Item Description Chart (2 Of 2)
G00792235Courtesy of NISSAN MOTOR CO., U.S.A.
