Shift Mechanism: Construction

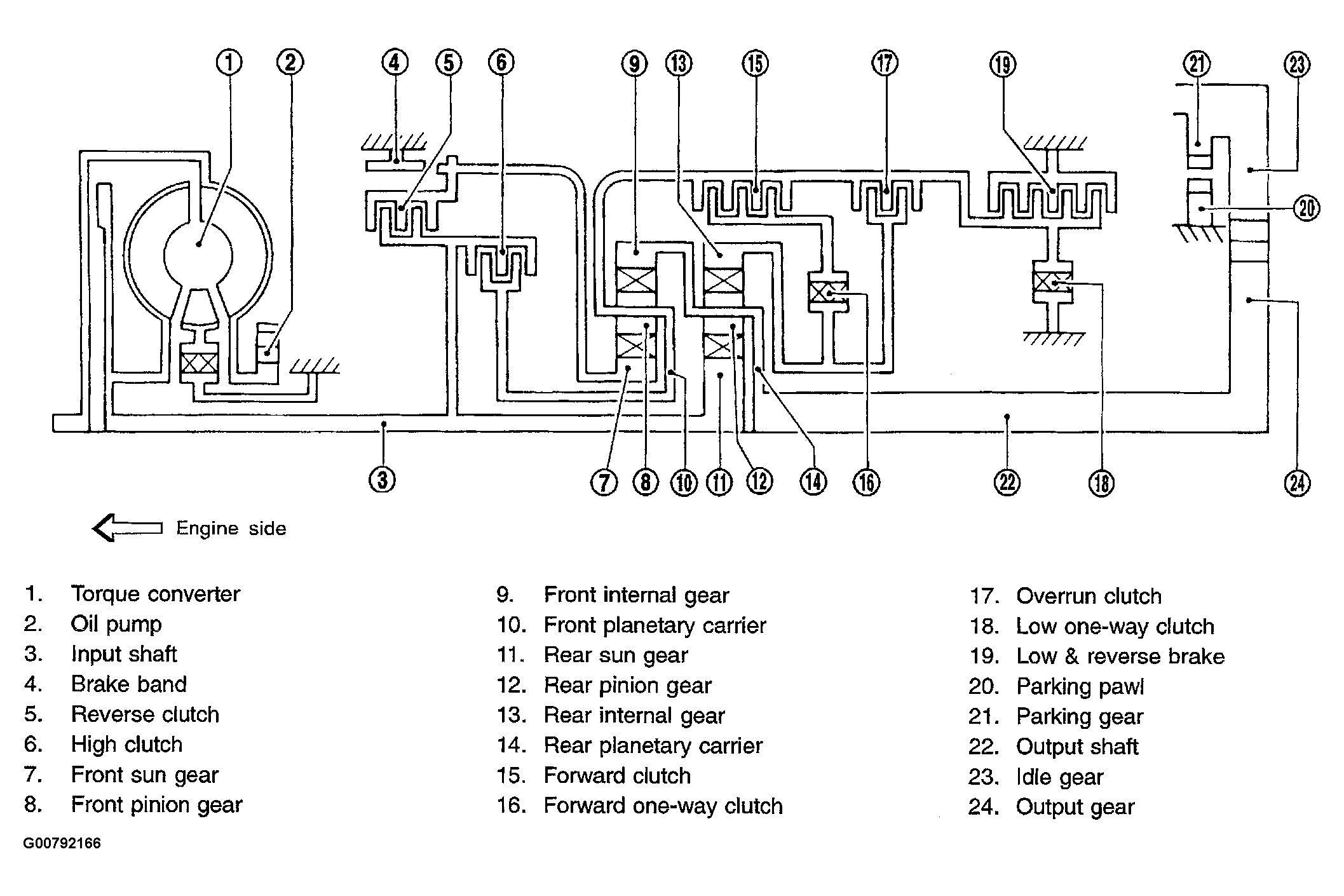

Fig 1: Construction For Shift Mechanism

G00792166

Courtesy of NISSAN MOTOR CO., U.S.A.
