Power Transmission

P and N Positions

P position
Similar to the N position, the clutches do not operate. The parking pawl engages with the parking gear to mechanically hold the output shaft so that the power train is locked.
N position
Power from the input shaft is not transmitted to the output shaft because the clutches do not operate.

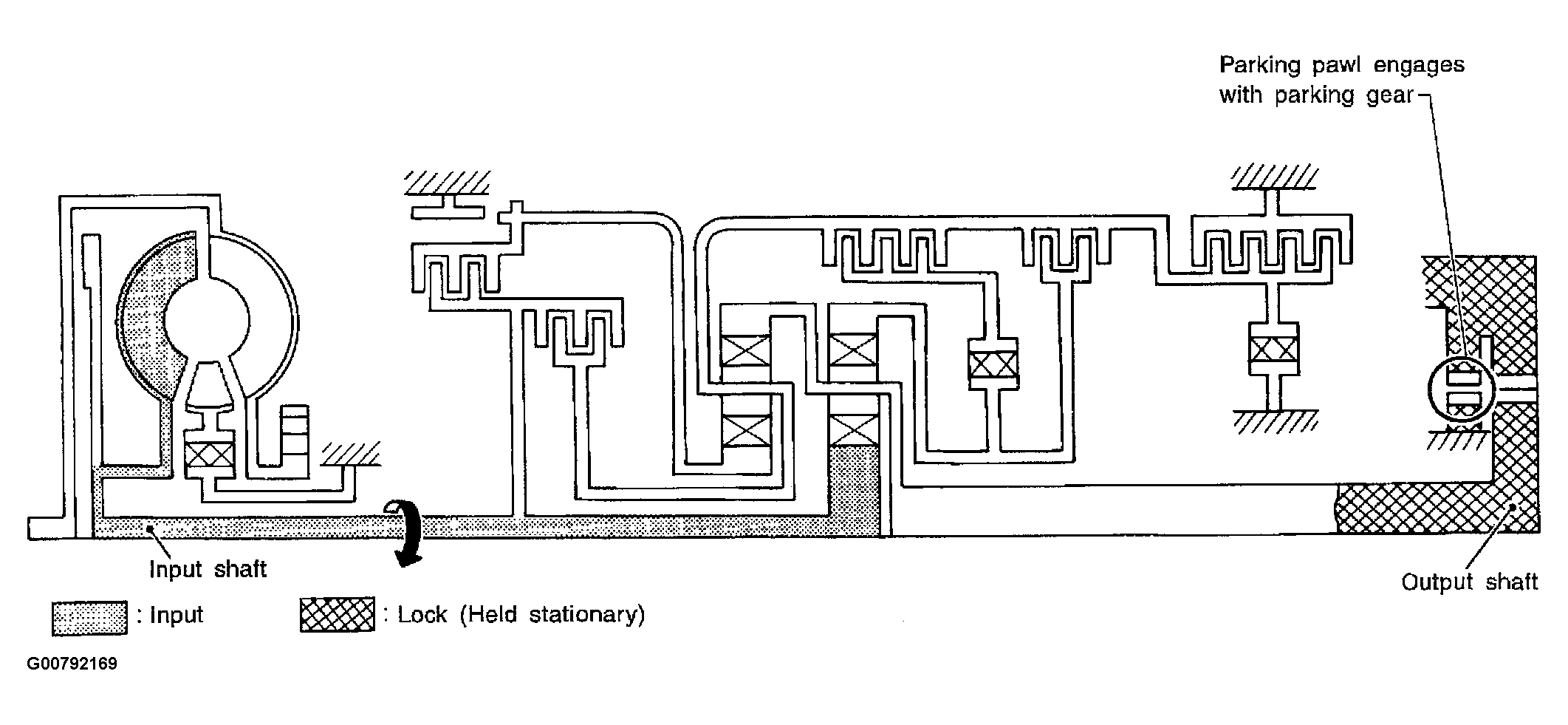

Fig 1: Identifying Power Transmission P And N Positions

G00792169

Courtesy of NISSAN MOTOR CO., U.S.A.

1 ₁Position

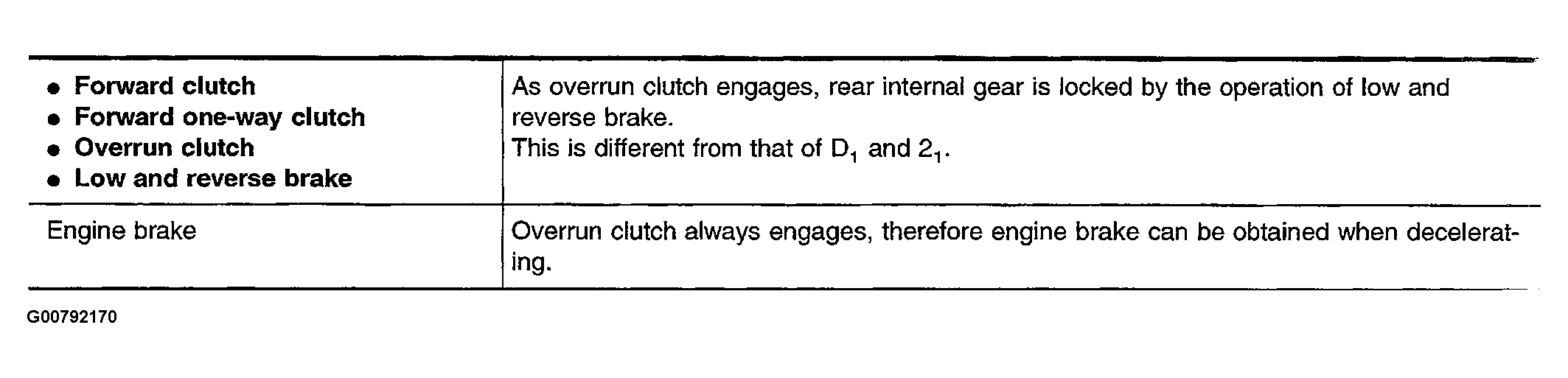

Fig 2: 1₁ Positions Chart

G00792170

Courtesy of NISSAN MOTOR CO., U.S.A.

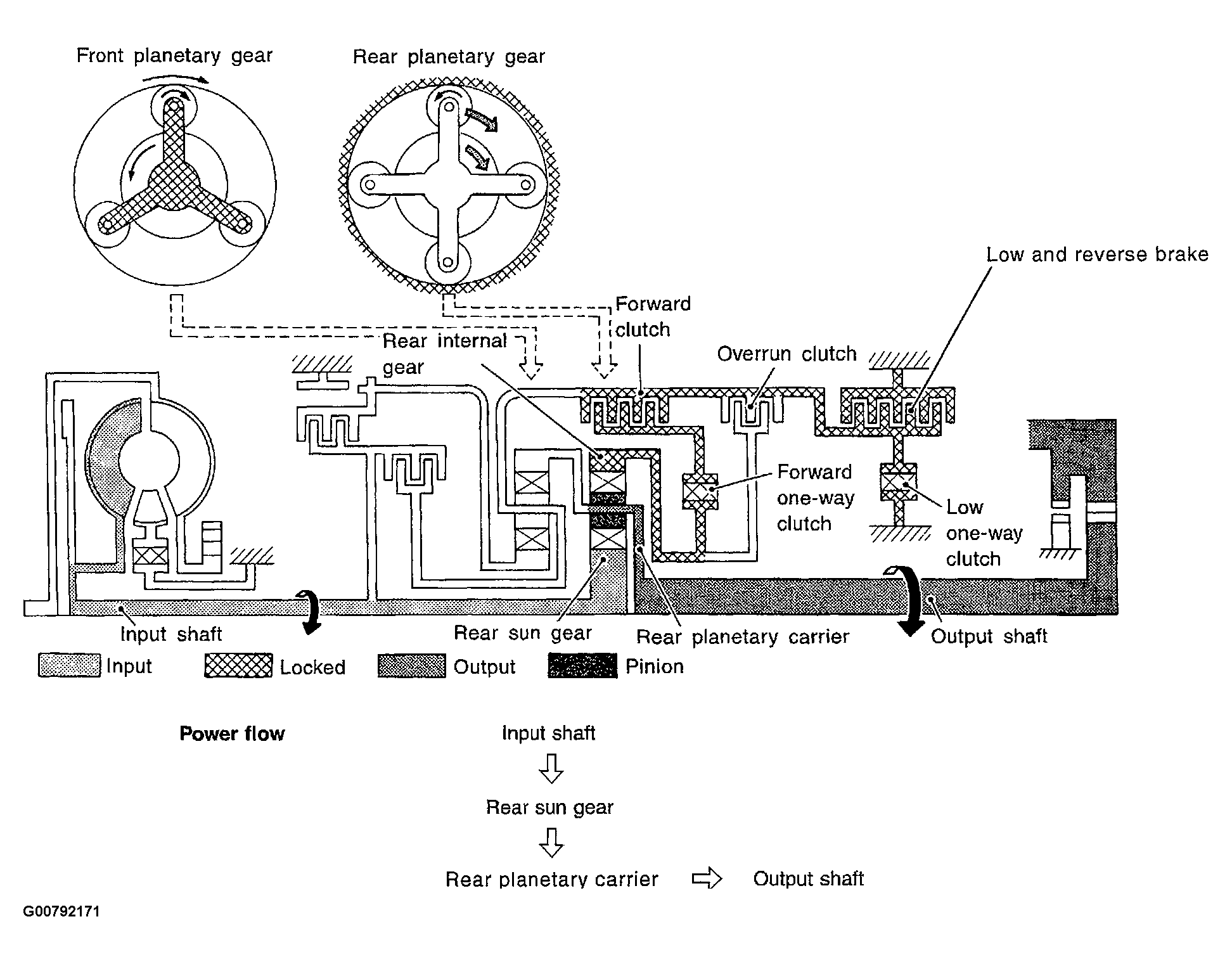

Fig 3: Identifying Power Transmission 1₁ Positions

G00792171

Courtesy of NISSAN MOTOR CO., U.S.A.

D ₁and 2 ₁Positions

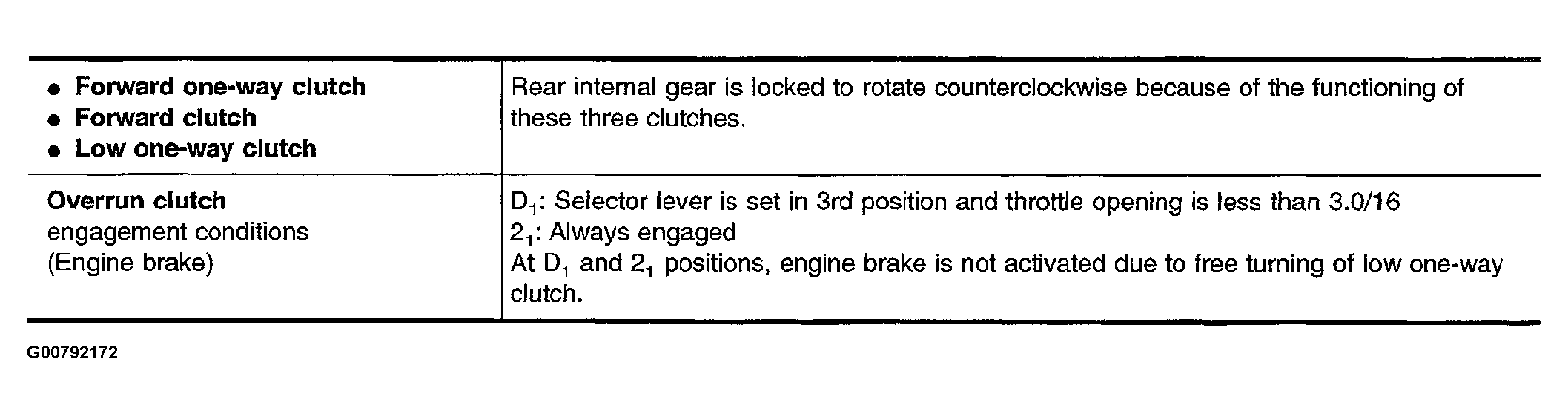

Fig 4: D₁ and 2₁ Positions Chart

G00792172

Courtesy of NISSAN MOTOR CO., U.S.A.

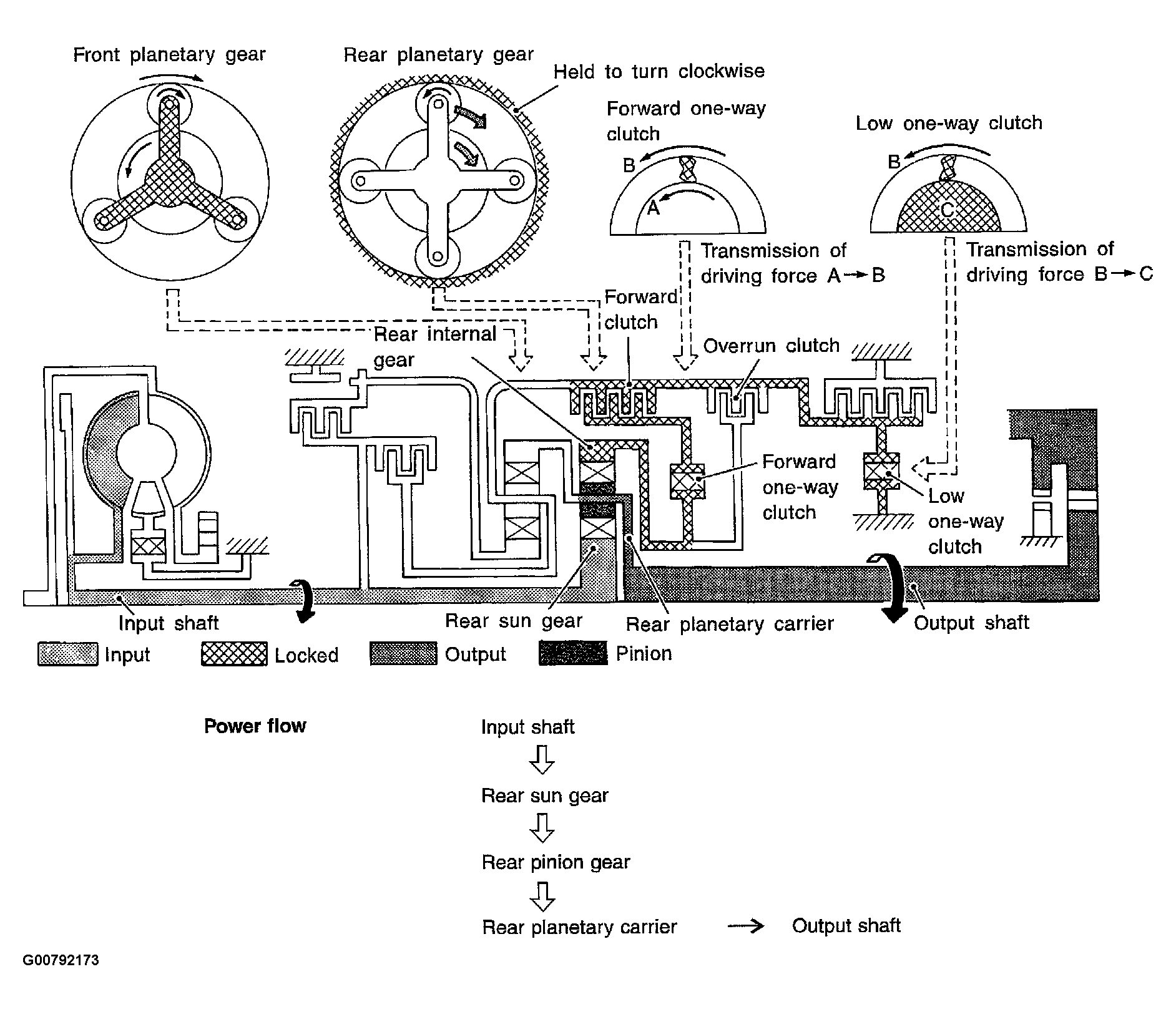

Fig 5: Identifying Power Transmission Of D₁ and 2₁ Positions

G00792173

Courtesy of NISSAN MOTOR CO., U.S.A.

D ₂, 2 ₂and 1 ₂Positions

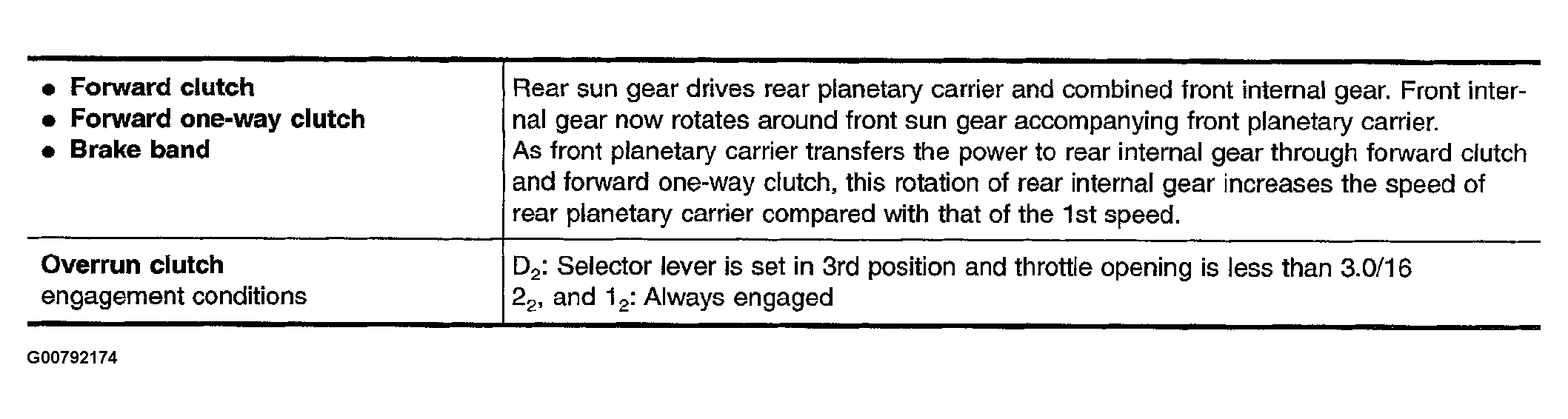

Fig 6: D₂ , 2₂ and 1₂ Positions Chart

G00792174

Courtesy of NISSAN MOTOR CO., U.S.A.

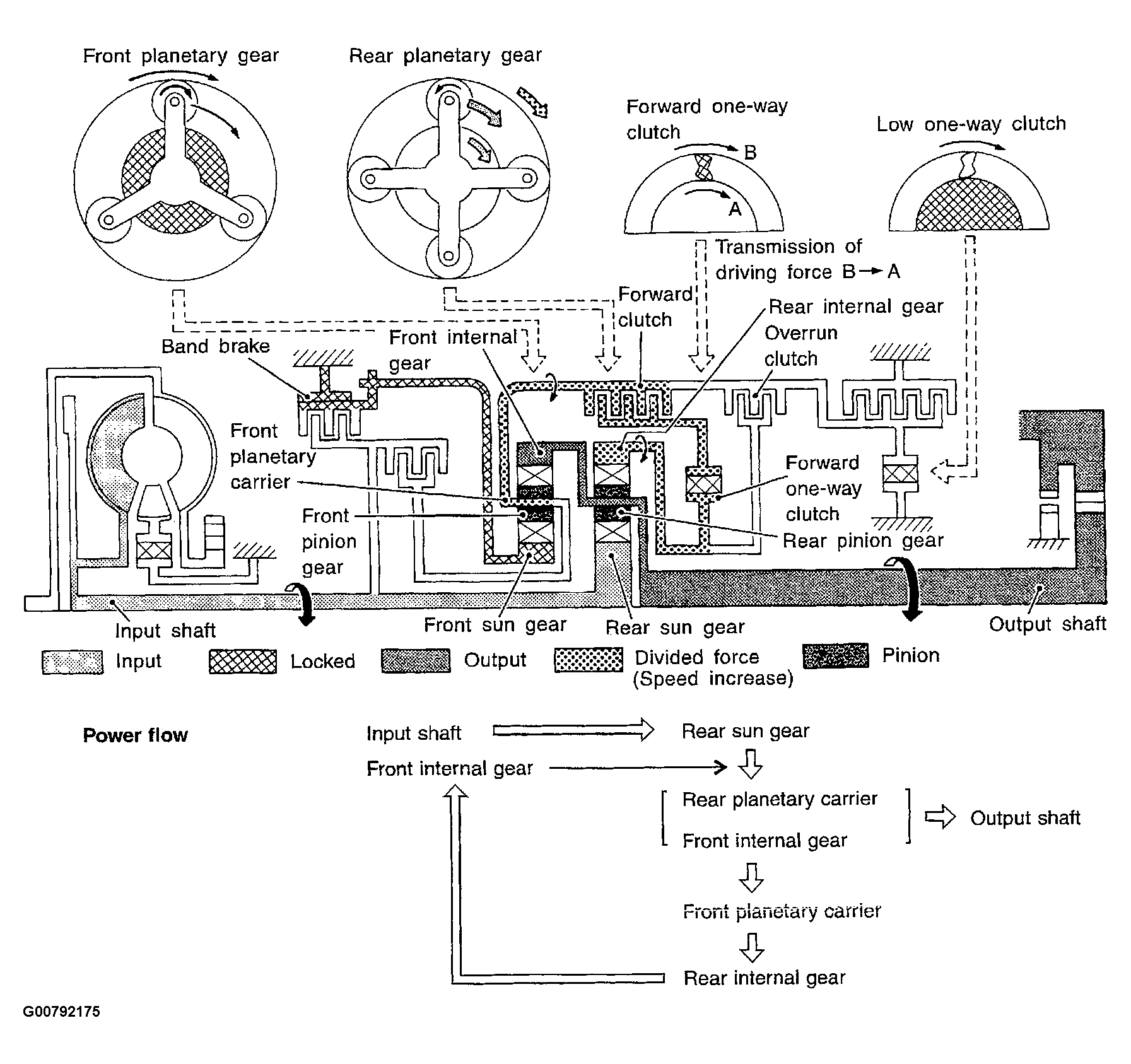

Fig 7: Identifying Power Transmission Of D₂ , 2₂ and 1₂ Positions

G00792175

Courtesy of NISSAN MOTOR CO., U.S.A.

D ₃, 2 ₃and 1 ₃Position

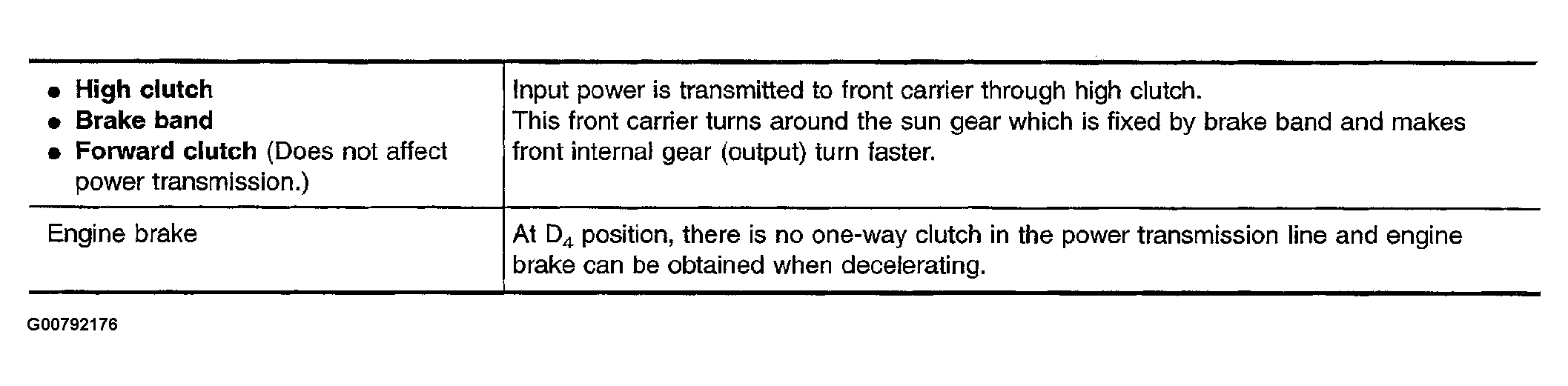

Fig 8: D₃ , 2₃ and 1₃ Positions Chart

G00792176

Courtesy of NISSAN MOTOR CO., U.S.A.

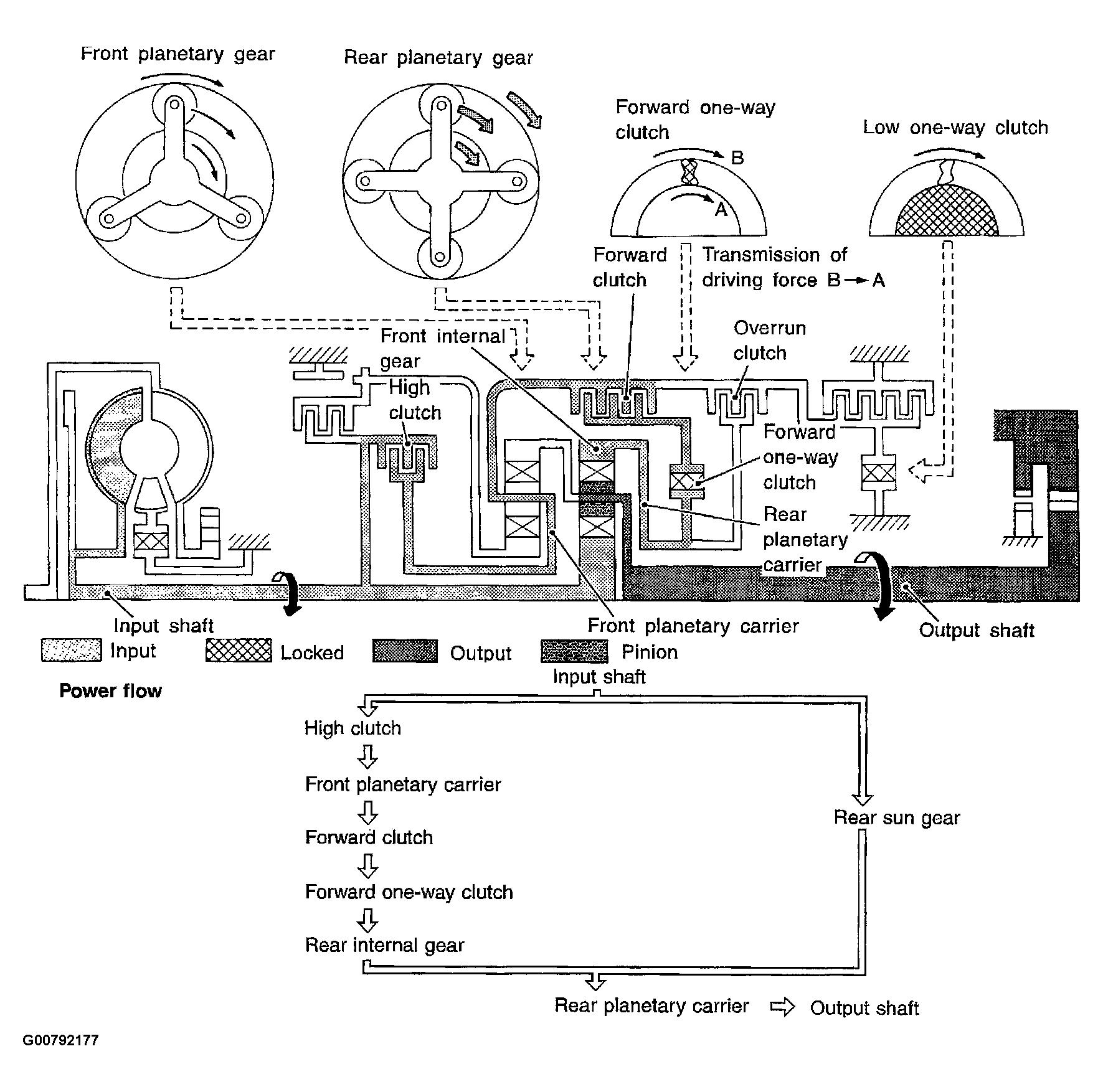

Fig 9: Identifying Power Transmission Of D₃ , 2₃ and 1₃ Positions

G00792177

Courtesy of NISSAN MOTOR CO., U.S.A.

D ₄Position

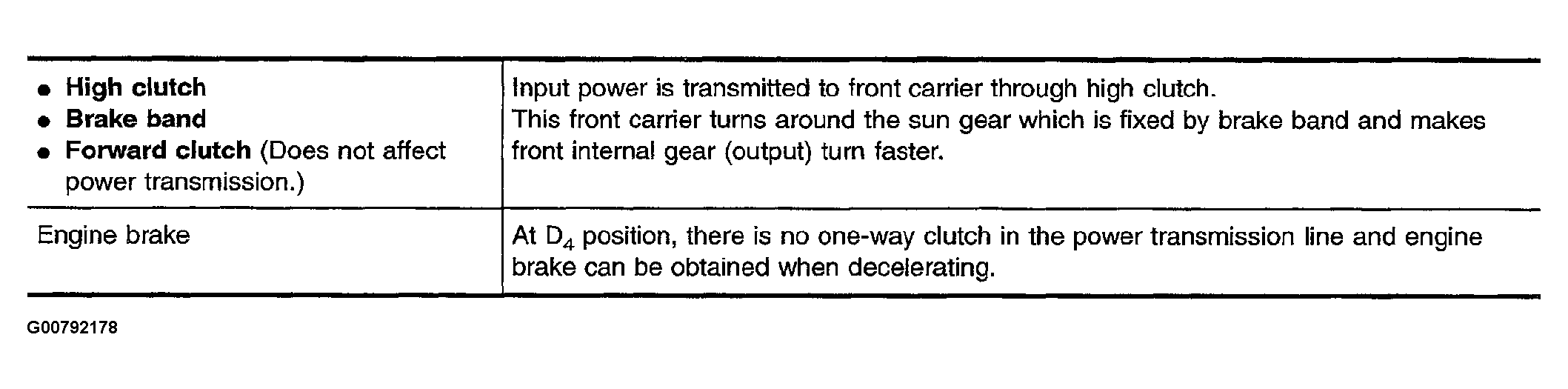

Fig 10: D₄ Positions Chart

G00792178

Courtesy of NISSAN MOTOR CO., U.S.A.

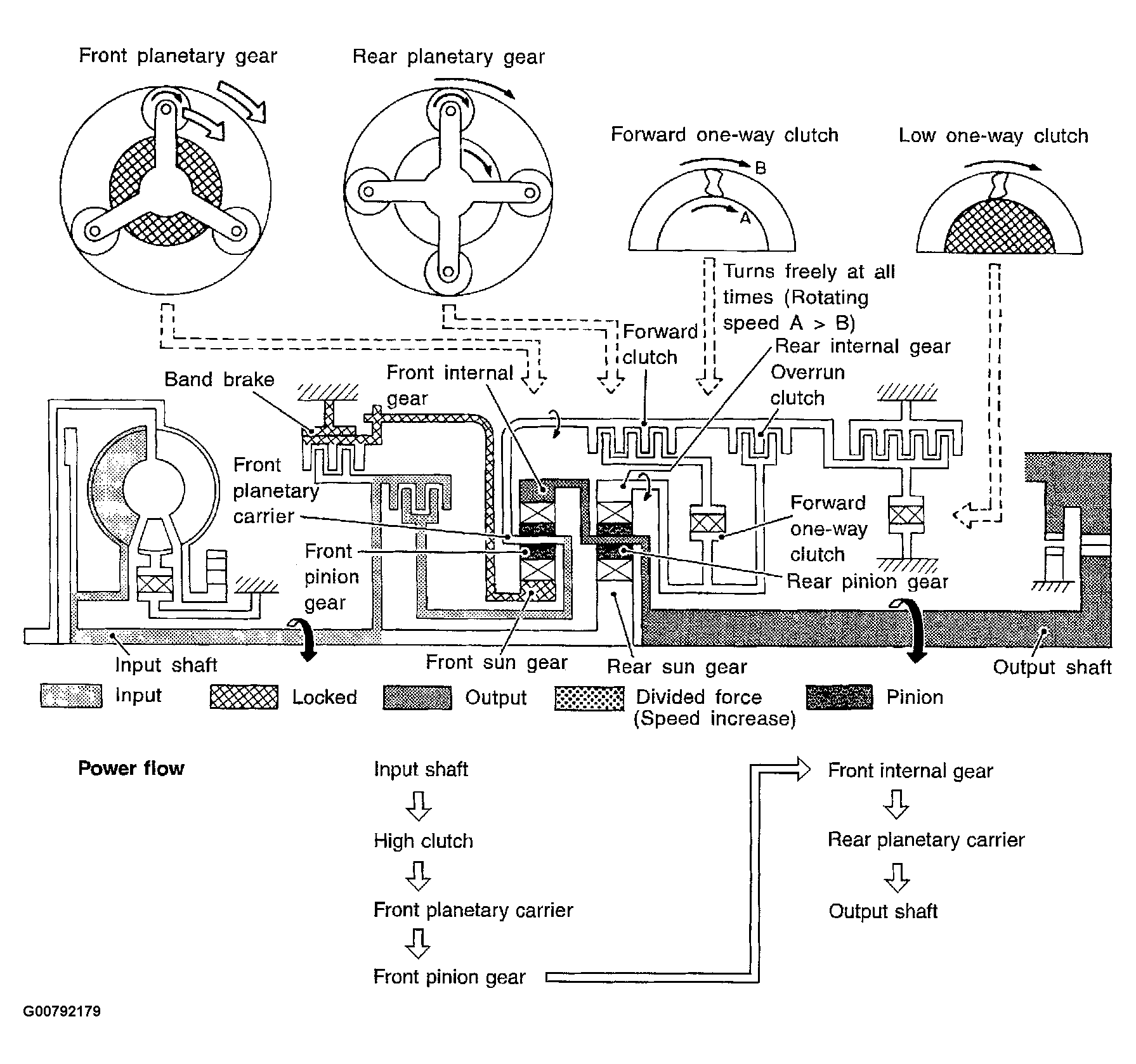

Fig 11: Identifying Power Transmission Of D₄ Positions

G00792179

Courtesy of NISSAN MOTOR CO., U.S.A.

R Position

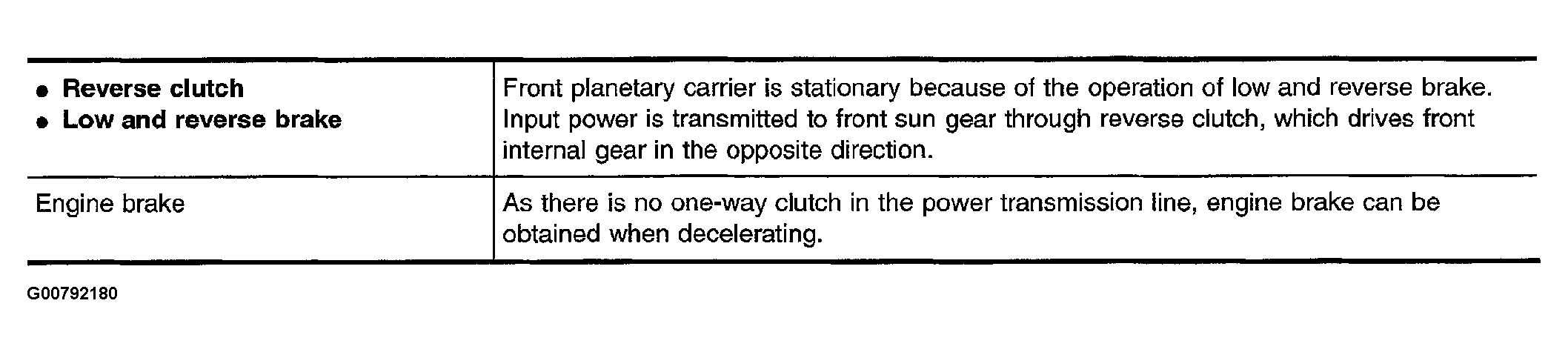

Fig 12: R Position Chart

G00792180

Courtesy of NISSAN MOTOR CO., U.S.A.

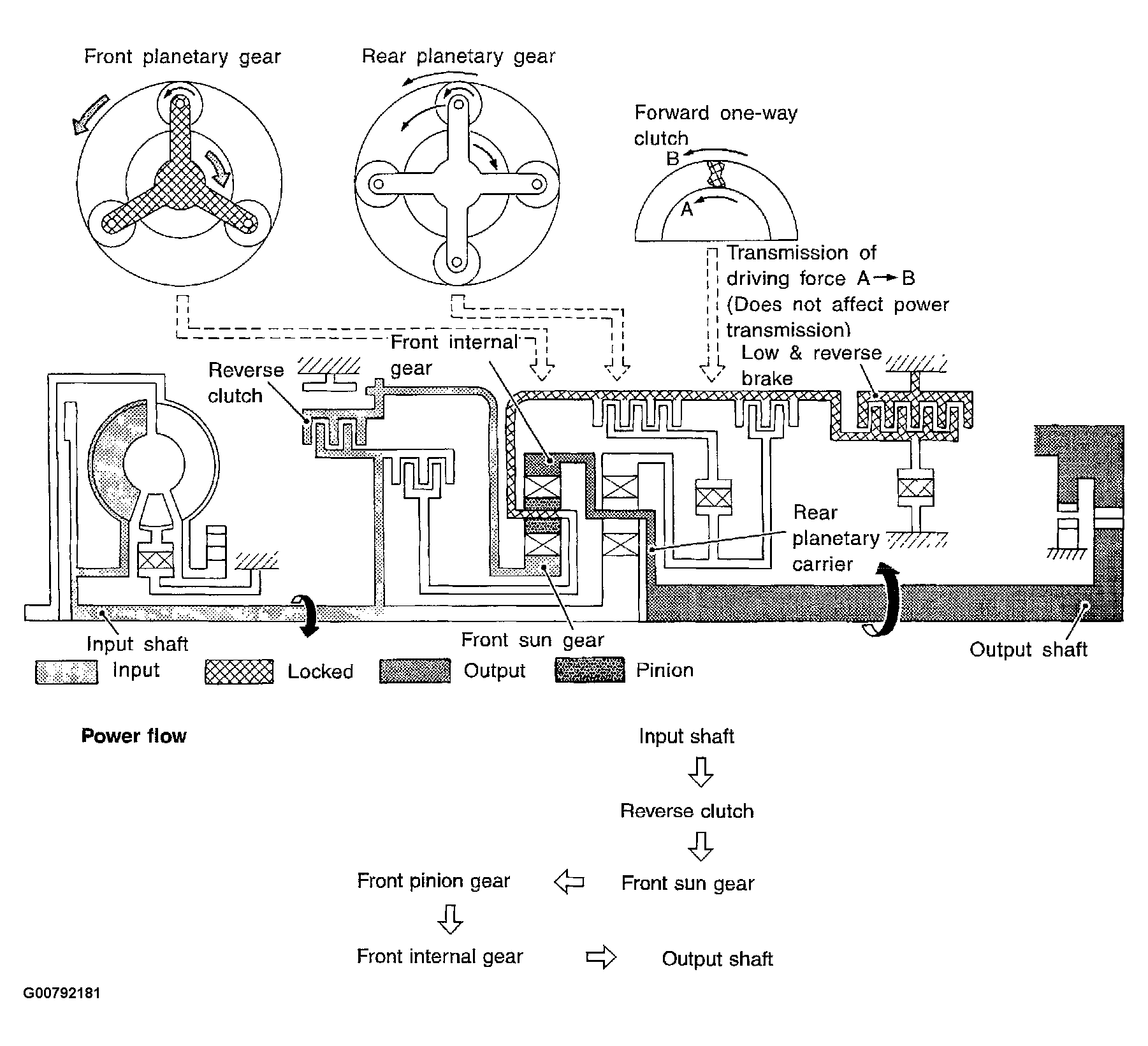

Fig 13: Identifying Power Transmission R Position

G00792181

Courtesy of NISSAN MOTOR CO., U.S.A.
