Control Valve Lower Body: Disassembly
Remove valves at retainer plate.
For removal procedures, Refer to "
DISASSEMBLY
" .

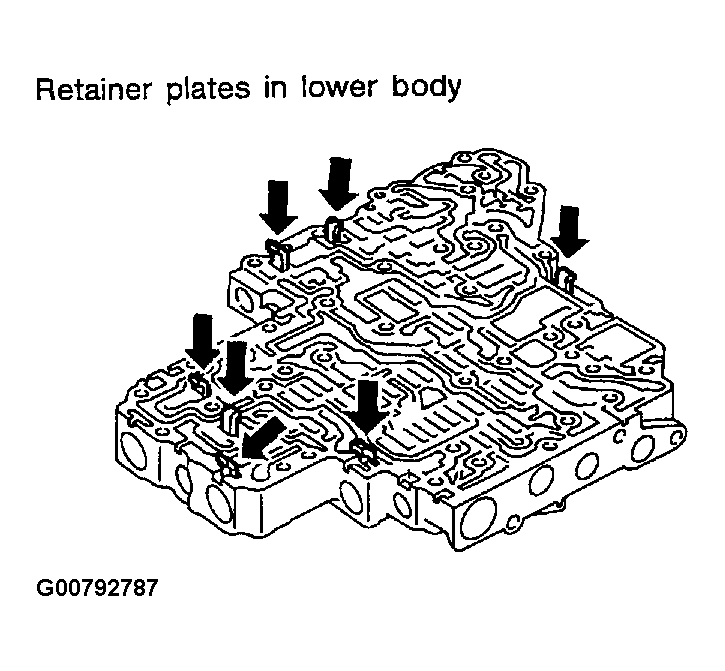

Fig 1: Removing Valves At Retainer Plate
Courtesy of NISSAN MOTOR CO., U.S.A.
