Control Valve Upper Body: Assembly

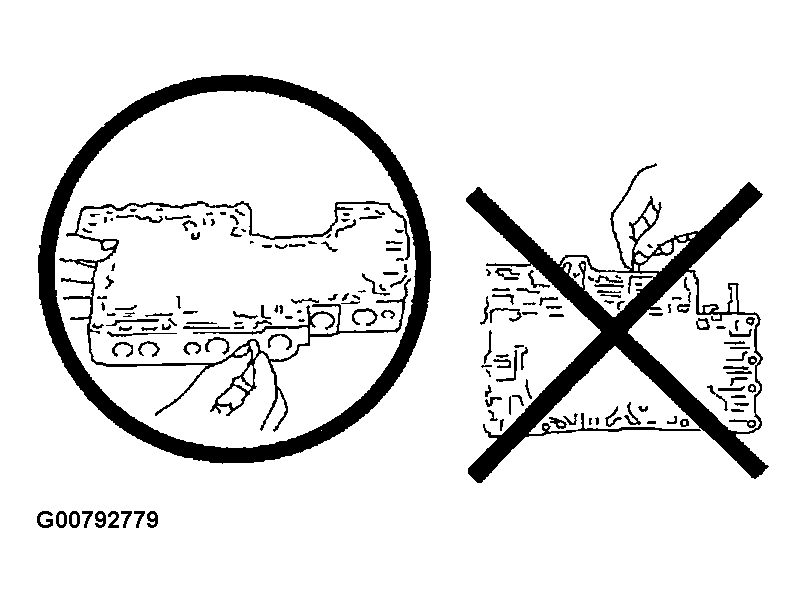

• Lay control valve body down when installing valves. Do not stand the control valve body upright.

Fig 1: Precautions For Installing Valves

Courtesy of NISSAN MOTOR CO., U.S.A.

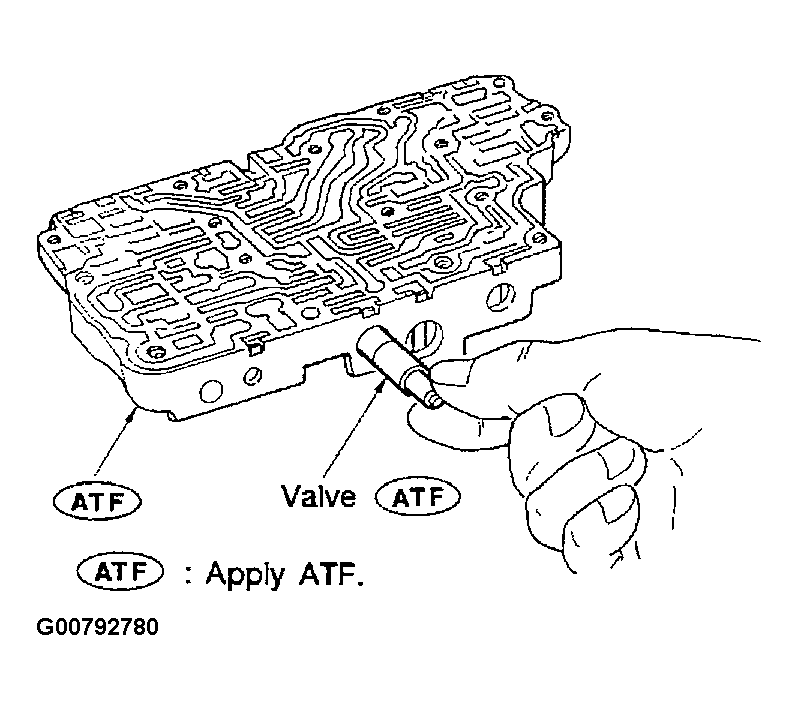

1. Lubricate the control valve body and all valves with ATF. Install control valves by sliding them carefully into their bores.
   • Be careful not to scratch or damage valve body.
     Fig 2: Installing Control Valves

     Courtesy of NISSAN MOTOR CO., U.S.A.

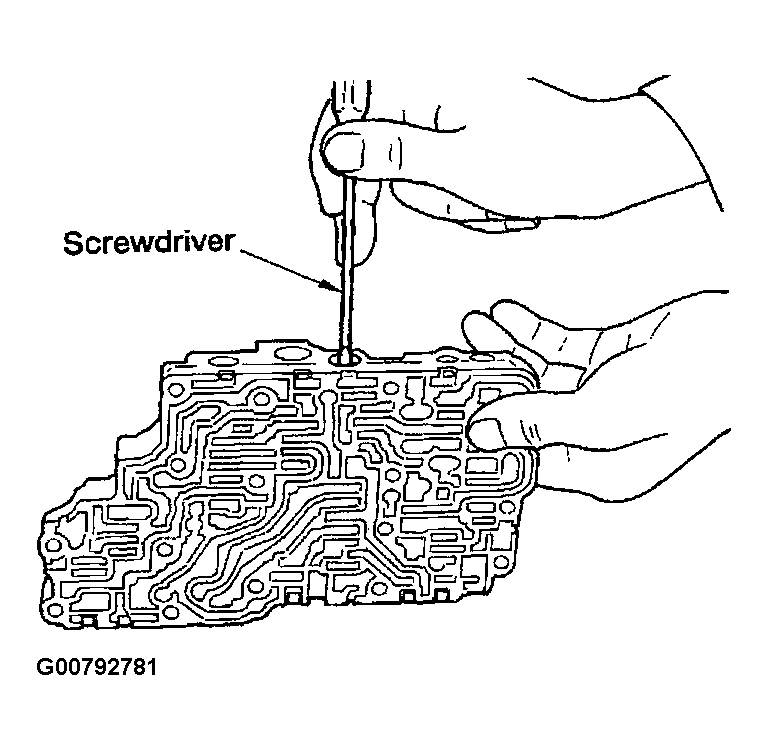

   • Wrap a small screwdriver with vinyl tape and use it to insert the valves into their proper positions.

Fig 3: Inserting Valves Into Proper Positions

Courtesy of NISSAN MOTOR CO., U.S.A.

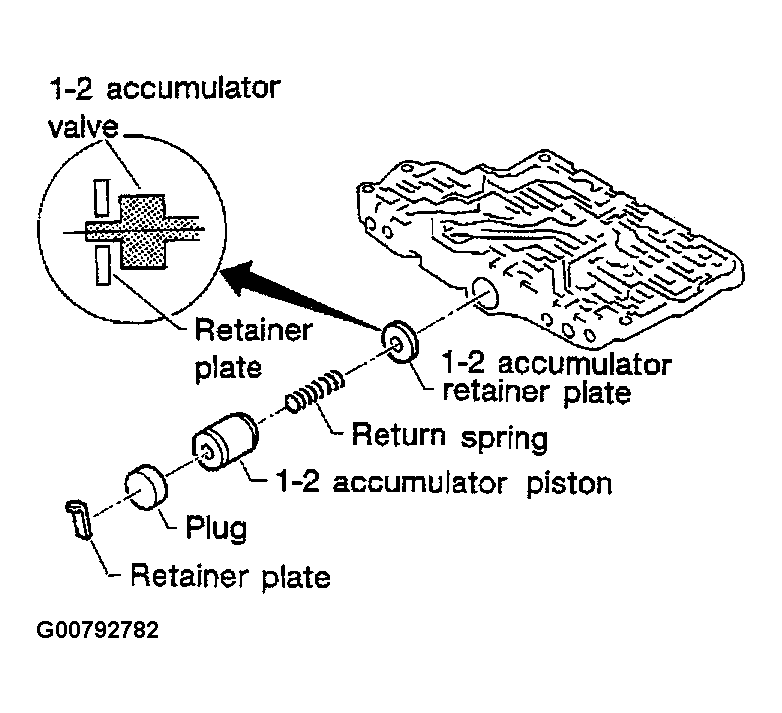

1-2 Accumulator Valve

• Install 1-2 accumulator valve. Align 1-2 accumulator retainer plate from opposite side of control valve body.
• Install return spring, 1-2 accumulator piston and plug.

Fig 4: Installing 1-2 Accumulator Valve

Courtesy of NISSAN MOTOR CO., U.S.A.

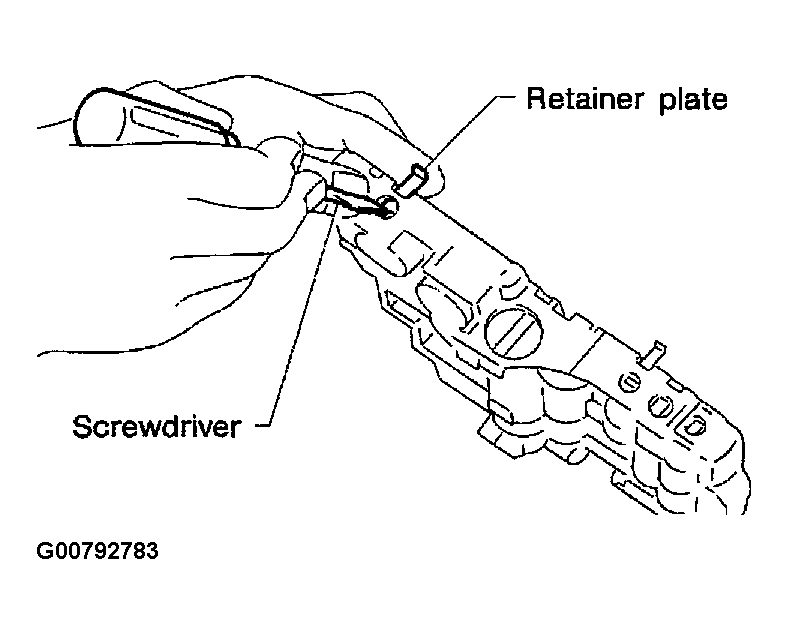

1. Install retainer plates.
   • While pushing plug or return spring, install retainer plate.

Fig 5: Installing Retainer Plates

Courtesy of NISSAN MOTOR CO., U.S.A.

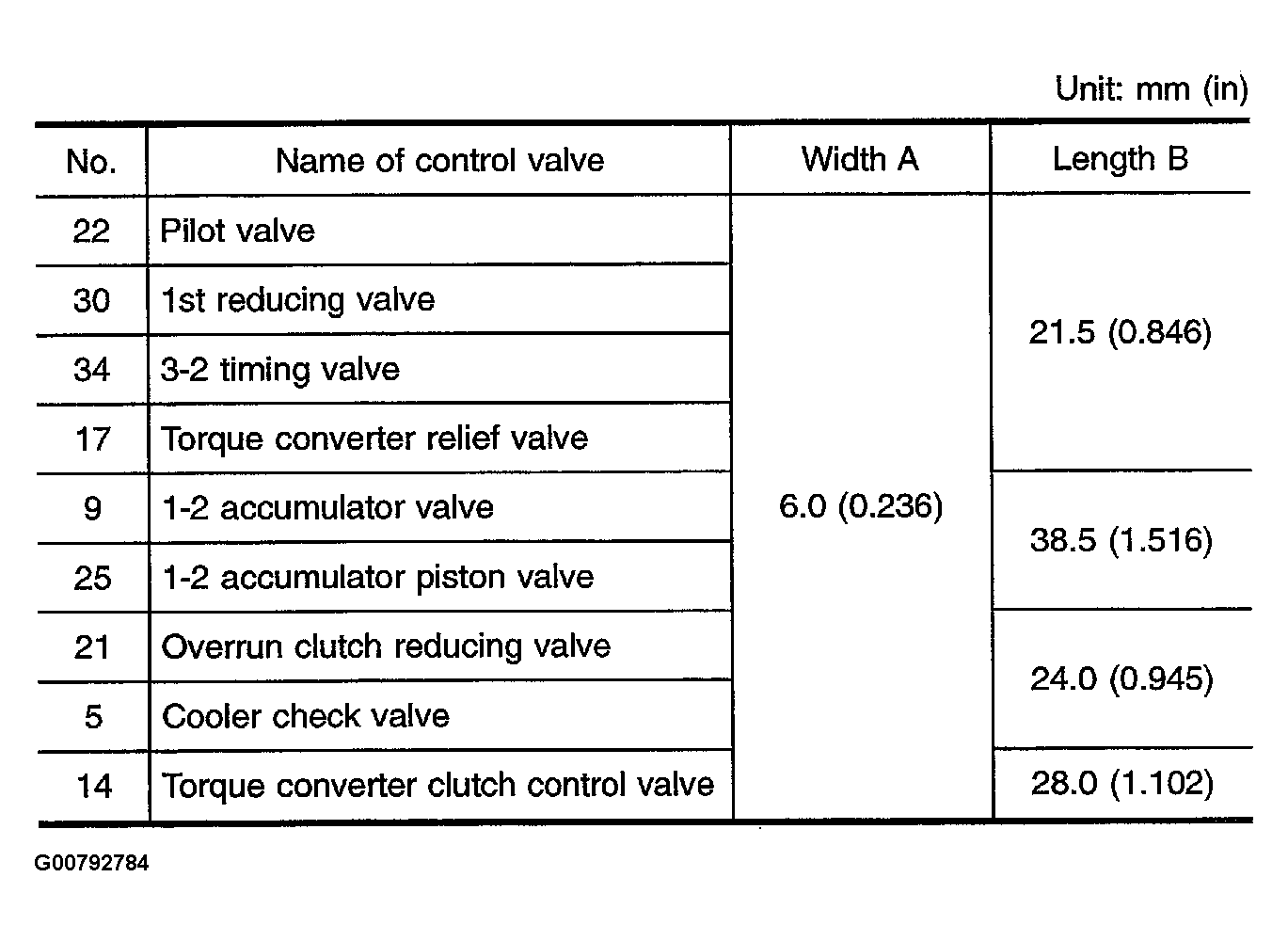

Fig 6: Retainer Plate (Upper Body) Length And Width Specification Table

Courtesy of NISSAN MOTOR CO., U.S.A.

Retainer Plate (Upper body)

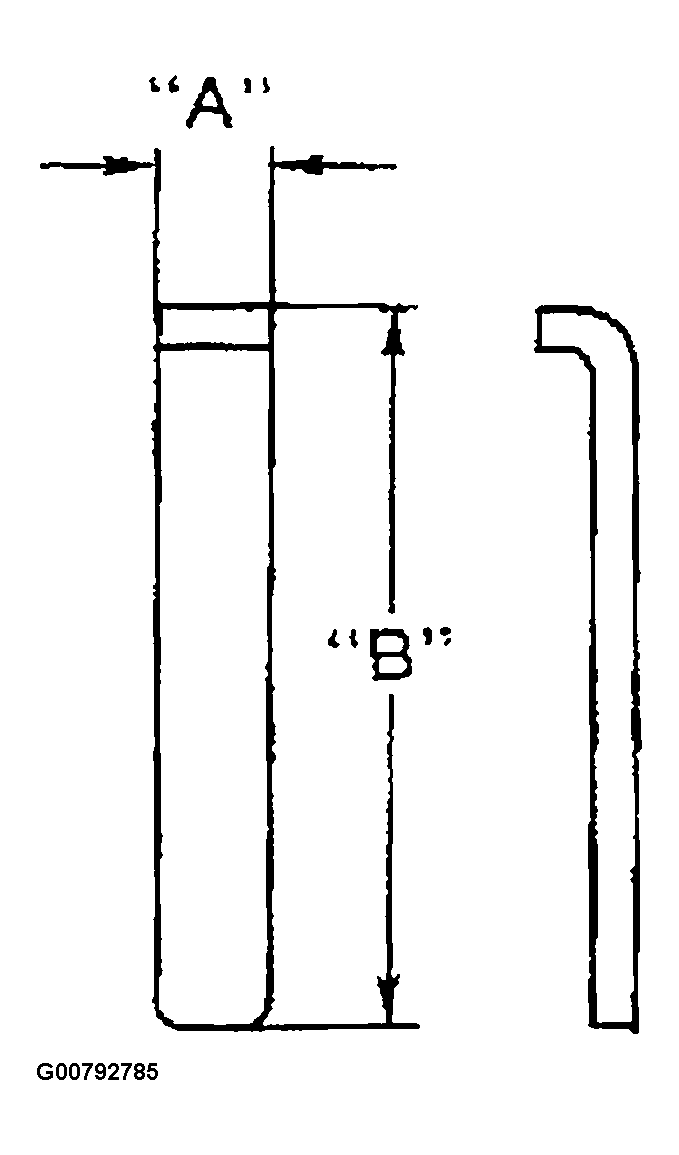

Fig 7: Locating Retainer Plate (Upper Body) Length

Courtesy of NISSAN MOTOR CO., U.S.A.

• Install proper retainer plates.

  Refer to "CONTROL VALVE UPPER BODY " .
